Description

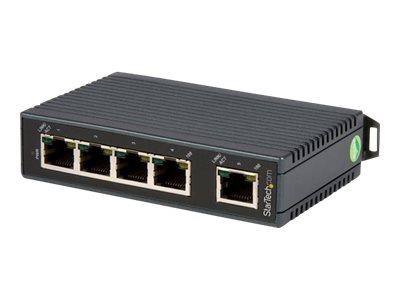

Expand your network connectivity with this rugged unmanaged 10/100Mbps switch. This compact 5-port industrial Ethernet switch is engineered to deliver fast, reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches, making it ideal for factories and warehouses.
Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly.
This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets.
Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required.
With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs.
-
Conquer the tough demands of industrial environments
Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly. -
Get up and running in no time
This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets. Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required. -
Reduce your energy costs with energy-efficient Ethernet
With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs.
Specifications
Summary
- Product Description
- StarTech.com 5-Port Ethernet Switch - 10/100Mbps Industrial Networking Solution - IP30-rated Energy Efficient Internet Switch (IES5102) - switch - 5 ports - unmanaged
- Device Type
- Switch - 5 ports - unmanaged
- Subtype
- Fast Ethernet
- Ports
- 5 x 10/100
- Features
- Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, QoS, Jumbo Frames support, plastic housing, Energy Efficient Ethernet, 56KB packet buffer
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az
- Dimensions (WxDxH)
- 11 cm x 7 cm x 2.5 cm
- Weight
- 148 g
- Colour
- Black
- Manufacturer Warranty
- 2-year warranty
- Designed For
- P/N: NETRS2322P
Detailed Specification
General
- Device Type
- Switch - 5 ports - unmanaged
- Enclosure Type
- DIN rail mountable
- Subtype
- Fast Ethernet
- Ports
- 5 x 10/100
- Features
- Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, QoS, Jumbo Frames support, plastic housing, Energy Efficient Ethernet, 56KB packet buffer
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az
- Status Indicators
- Power, active, link/activity
Expansion / Connectivity
- Interfaces
- 4 x 100Base-TX RJ-45 , 1 x 100Base-TX RJ-45 uplink
Power
- Power Device
- External power adapter
- Power Consumption Operational
- 2.12 Watt
Miscellaneous
- Colour
- Black
- Included Accessories
- 3-pin power terminal block
- MTBF
- 1,179,133 hours
- Compliant Standards
- EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, FCC, EN 61000-6-2, RoHS, EN 61000-4-8, EN 61000-6-4, IEC 60068-2-27, IEC 60068-2-6, IP30
Dimensions & Weight
- Width
- 11 cm
- Depth
- 7 cm
- Height
- 2.5 cm
- Weight
- 148 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- -10 °C
- Max Operating Temperature
- 60 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
- Min Storage Temperature
- -25 °C
- Max Storage Temperature
- 85 °C
- Humidity Range Storage
- 10 - 90% (non-condensing)
Compatibility Information
- Designed For
- P/N: NETRS2322P
