Description
Extend the HDMI signal from your ST424HDBT Matrix switch over Cat5/Cat6 cable, with IR control. This HDBaseT receiver works with the ST424HDBT HDMI matrix switch to extend an HDMI audio/video source up to 230ft (70m) over Cat5e/6 cabling. One STHDBTRX receiver unit is required for each individual remote display.
Together with the ST424HDBT, the CAT5 HDMI receiver works to create a digital signage solution that eliminates the expense and hassle of running multiple devices with an HDMI matrix switch and extender in one clutter-free system. Because the signal is extended using standard Cat5e/6 Ethernet cables with RJ45 connectors, you can use your existing cabling infrastructure, without the additional cost of special cabling or connectors.

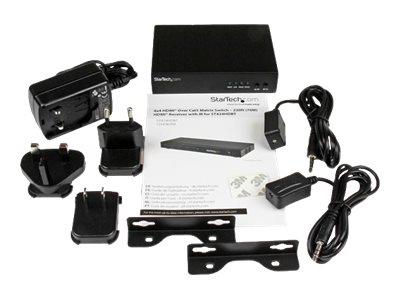

For remote source operation, the HDMI receiver can also extend an Infrared signal from a remote control to operate either the display or the video source from either side or system, using the included IR extender and receiver cables.
Specifications
Summary
- Product Description
- StarTech.com HDBaseT over CAT5e / CAT6 HDMI Receiver for ST424HDBT - 230ft (70m) - 1080p (STHDBTRX) - video/audio/infrared extender
- Device Type
- Video/audio/infrared extender (receiver)
- Form Factor
- External
- Localisation
- Australia, North America, United Kingdom, Europe
- Transmission Medium
- CAT 5e/6
- Max Transfer Distance
- 70 m
- Power
- AC 120/230 V
- Dimensions (WxDxH)
- 11 cm x 7.5 cm x 2.35 cm
- Manufacturer Warranty
- 2-year warranty
- Designed For
- P/N: ST424HDBT, SVA5M3NEUA
Detailed Specification
General
- Device Type
- Video/audio/infrared extender (receiver)
- Form Factor
- External
- Colour
- Black
- Localisation
- Australia, North America, United Kingdom, Europe
Networking
- Connectivity Technology
- Wired
- Max Resolution
- 1920 x 1200 / 1080p
- Max Transfer Distance
- 70 m
- Status Indicators
- Port status
Expansion / Connectivity
- Interfaces
- 1 x HDMI , 1 x IrDA , 1 x network - RJ-45
Miscellaneous
- Compliant Standards
- FCC, RoHS
Power
- Power Device
- External power adapter
- Installed Qty
- 1
- Max Supported Qty
- 1
- Voltage Required
- AC 120/230 V
Dimensions & Weight
- Width
- 11 cm
- Depth
- 7.5 cm
- Height
- 2.35 cm
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- -5 °C
- Max Operating Temperature
- 35 °C
- Humidity Range Operating
- 5 - 90%
Compatibility Information
- Designed For
- P/N: ST424HDBT, SVA5M3NEUA
