Description

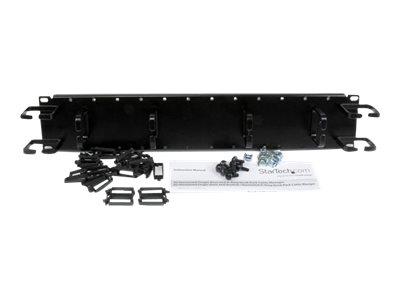

Organize horizontal and vertical cabling in your server rack, with a combination Finger Duct / D-Ring Hook panel. The CMPNL2UC 2U Cable Management Panel mounts to a standard 19" 2 or 4-post rack to help you organize both horizontal and vertical cabling, using the combination of a finger duct and D-Ring hooks.
Constructed of high-quality steel, the cable organizer is designed as a double-sided solution offering cable management on both the front and back of the panel. The front is equipped with 4 vertical and 4 horizontal D-Ring hooks, while the back has 2 additional hooks as well as a cable duct with a series of fingers that help you route your cables where you need them, and reduce cable strain in the process.
As an added benefit, the panel also promotes proper airflow through the rack by closing off open spaces between equipment. For easy installation, this horizontal cable organizer comes complete with 2 sets of rack screws (10/32 and 12/24).
Note: The hooks on this cable management system extend past 19 inches. As a result certain racks with close spaced or inset rack mount holes may not be compatible with this product.
Specifications
Summary
- Product Description
- StarTech.com 2U Double-Sided Horizontal / Vertical Cable Management Panel with Finger Duct & D-Ring Hooks - Rack Cable Organizer / Manager (CMPNL2UC) - rack cable management panel - 2U
- Product Type
- Rack cable management panel
- Package Content
- 4 screws (10-32), 4 screws (12-24), 24 cable clamps, 8 nuts
- Colour
- Black
- Height (Rack Units)
- 2U
- Product Material
- Steel
- Dimensions (WxDxH)
- 51.6 cm x 10.22 cm x 8.81 cm
- Weight
- 1.5 kg
- Manufacturer Warranty
- 2-year warranty
- Designed For
- P/N: 4POSTRACK12U, 4POSTRACK25U, RKCONS1708K, RKCONS1716K
Detailed Specification
General
- Product Type
- Rack cable management panel
- Product Material
- Steel
- Package Content
- 4 screws (10-32), 4 screws (12-24), 24 cable clamps, 8 nuts
- Height (Rack Units)
- 2U
- Width
- 51.6 cm
- Depth
- 10.22 cm
- Height
- 8.81 cm
- Weight
- 1.5 kg
- Colour
- Black
Miscellaneous
- Compliant Standards
- RoHS
Manufacturer Warranty
- Service & Support
- Limited warranty: - 2 years
Compatibility Information
- Designed For
- P/N: 4POSTRACK12U, 4POSTRACK25U, RKCONS1708K, RKCONS1716K
