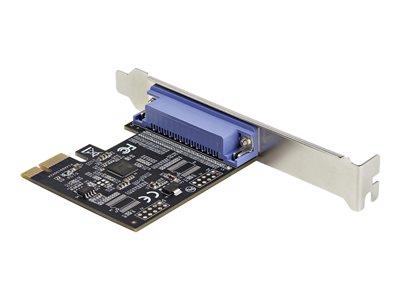

StarTech.com 1-Port Parallel PCIe Card, PCI Express to Parallel DB25 LPT

Review this product
Quicklinx: G8L1WS00 Mfr#: PEX1P2
30 in stock
£18.68 ex VAT
£22.41 inc VAT
Qty
Standard delivery Delivered within 3 working days

Description

PCI Express 2.0 LPT PCIe 1x Slot 2.5 Mbps Lifetime Warranty. This PCIe Parallel controller card installs into an available PCI-Express x1 slot in your computer and enables you to add DB25 parallel communication port to your system.

Adds a Parallel Port to Your Desktop Computer

The controller card features an Asix AX99100 chip and enables you to connect a DB25 device to your desktop computer. The parallel port port is ideal for connecting printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes. The card can also be used in factories, to control or automate equipment. The parallel (LPT) port supports SPP/Byte/Nibble/ECP modes and is compatible with PCI Power Management 1.2 and IEEE 1284 for speeds up to 2.5Mbps.

Wide Installation Compatibility

This add-on card includes both full-profile and low-profile installation brackets (full-profile bracket pre-installed) ensuring you can install it into either a full or low-profile PCIe 2.0 x1 slot (backward compatible with PCIe 1.1). For wide platform support the card is compatible with Windows (XP or higher), Windows Server (2003 or higher), and Linux (2.6.X or higher).

PEX1P2 is backed by a StarTech.com lifetime warranty with free 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years.

  • Adds a parallel port to your desktop computer

    The controller card features an Asix AX99100 chip and enables you to connect a DB25 device to your desktop computer. The parallel port is ideal for connecting printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes. The card can also be used in factories, to control or automate equipment. The parallel (LPT) port supports SPP/Byte/Nibble/ECP modes and is compatible with PCI Power Management 1.2 and IEEE 1284 for speeds up to 2.5Mbps.
  • Wide installation compatibility

    This add-on card includes both full-profile and low-profile installation brackets (full-profile bracket pre-installed) ensuring you can install it into either a full or low-profile PCIe 2.0 x1 slot (backward compatible with PCIe 1.1).

Specifications

Summary

Product Description
StarTech.com 1-Port Parallel PCIe Card, PCI Express to Parallel DB25 LPT Adapter Card, Desktop Expansion Controller for Printer, SPP/ECP - parallel adapter - PCIe - IEEE 1284
Device Type
Parallel adapter
Form Factor
Plug-in card
Interface (Bus) Type
PCI Express
PCI Specification Revision
PCIe 2.0
Ports
IEEE 1284
Dimensions (WxDxH)
7.3 cm x 12 cm x 1.85 cm
Weight
45 g
Data Link Protocol
Parallel
Data Transfer Rate
2.5 Mbps
Processor
ASIX AX99100
Colour
Black
System Requirements
Linux 2.6.x or later, Microsoft Windows Server 2008 R2, Microsoft Windows 2003, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019
Manufacturer Warranty
2-year warranty


Detailed Specification

General

Device Type
Parallel adapter
Form Factor
Plug-in card
Interface (Bus) Type
PCI Express
PCI Specification Revision
PCIe 2.0

Networking

Ports
IEEE 1284
Connectivity Technology
Wired
Data Link Protocol
Parallel
Data Transfer Rate
2.5 Mbps

Processor / Memory

Processor
ASIX AX99100

Expansion / Connectivity

Interfaces
1 x IEEE 1284 (EPP/ECP) - 25 pin D-Sub (DB-25)

Miscellaneous

Included Accessories
Low-profile bracket
MTBF
17,520 hours
Compliant Standards
FCC, RoHS, WEEE, RCM
Colour
Black

Software / System Requirements

OS Required
Linux 2.6.x or later, Microsoft Windows Server 2008 R2, Microsoft Windows 2003, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019

Dimensions & Weight

Width
7.3 cm
Depth
12 cm
Height
1.85 cm
Weight
45 g

Dimensions & Weight (Shipping)

Shipping Width
17 cm
Shipping Depth
14.2 cm
Shipping Height
3 cm
Shipping Weight
290 g

Manufacturer Warranty

Service & Support
Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature
5 °C
Max Operating Temperature
50 °C
Humidity Range Operating
40 - 80%
