Description

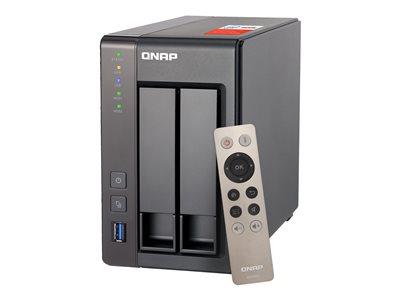

Facing the increasing demand for data storage, sharing and multimedia processing, more and more users are looking for a NAS system with good performance and an affordable price tag. The Intel quad-core TS-251+ provides an uncompromising high-performance scalable storage solution for professional users. Powered by the intelligent QTS 4.2 operating system, the TS-251+ performs as an easy-to-use yet powerful NAS for data backup, file synchronization and sharing, remote access and multimedia applications, and is ideal for users to create a secure private cloud to access their data easily.
-
Quad-core 64-bit Intel Celeron CPU for exceptional performance
The TS-251+ is powered by a 64-bit Intel Celeron quad-core 2.0GHz processor and has 2GB/8GB energy-efficient DDR3L RAM (upgradable to 8GB) and dual Gigabit LAN ports, delivering up to 225 MB/s read & write speeds with port trunking mode. The TS-251+ can also automatically increase the processor's clock rate from 2.0GHz to 2.42GHz when needed for CPU-intensive tasks. The TS-251+ supports AES 256-bit volume & folder encryption with transfer speeds of up to 205 MB/s, boosting system performance & security while ensuring the safety of sensitive personal data stored in the TS-251+. -
QTS 4.2 - simple and efficient
Thanks to the intuitive user interface of QTS 4.2, your NAS experience is smarter, smoother and spectacular. Its modern flat design streamlines loading times, and the intelligent desktop allows you to quickly find desired functions, create desktop shortcuts or group shortcuts, monitor important system information on a real-time basis, and open multiple application windows to run multiple tasks concurrently, bringing greater operating efficiency. QTS breaks the barriers of devices, platforms and geography to bring optimized cloud experiences to you, and incorporates more advanced features including volume/LUN snapshot, remote connection to public cloud services in File Station, multi-zone multimedia system, and more. -
Run additional operating systems on the TS-251+
The Virtualization Station transforms the TS-251+ into a 2-in-a-box NAS that can function as an all-in-one NAS and a virtualization platform that supports multiple operating systems, fast VM creation, VM backup & restoration, VM import/export, snapshot, Device Management for centrally managing VM, and enables desktop operations on web browsers. With the easy-to-use interface, you can centrally manage all of the VMs created on the TS-251+ with minimal effort. You can also download VMs on demand from online VM markets and import them to the TS-251+ without any complex procedures. -
Container Station - LXC and Docker Containers inclusive
QNAP Container Station exclusively integrates LXC and Docker lightweight virtualization technologies, allowing you to operate multiple isolated Linux systems on the TS-251+ as well as download apps from the built-in Docker Hub Registry. It supports container import/export and permission settings, and features an informative dashboard and flexible user interface for you to manage multiple containers. You can experience the amazing Container Station and enjoy the playground of virtual containers with the TS-251+. Container Station also supports Online Document app, which allows you to directly view, edit and store files of various types anytime on your NAS, including Office documents, images and text files. -
Use your TS-251+ as a PC with QvPC technology
QNAP's exclusive QvPC Technology consolidates a number of high-end technologies including VM integration, multimedia transcoding, HDMI output, cloud integration and NAS connection technologies, allowing users to operate the TS-251+ as a PC when they plug in a keyboard, mouse and HDMI monitor. With QvPC Technology, the TS-251+ is transformed into a cost-effective device with PC functionalities for users to directly access stored data, run multiple applications using Windows/Linux/UNIX/Android based VMs, surf the web, enjoy Full HD videos with Kodi, monitor surveillance live feeds from IP cameras in real time, and much more. -
Real-time & offline video transcoding
The TS-251+ delivers superior real-time Full HD video transcoding to convert your videos to formats that can be smoothly played on PCs, mobile devices and Smart TVs. It allows for multiple devices to simultaneously view different videos stored on the TS-251+ with on-the-fly hardware accelerated transcoding, saving your time in converting videos to different formats for different devices.
Specifications
Summary
- Product Description
- QNAP TS-251+ - NAS server
- Device Type
- NAS server
- Host Connectivity
- Gigabit Ethernet
- Installed Devices / Modules Qty
- 0 (installed) / 2 (max)
- Dimensions (WxDxH)
- 10.2 cm x 22.5 cm x 16.85 cm
- Weight
- 1.28 kg ()
- Processor
- 1 x Intel Celeron 2 GHz (Quad-Core)
- Storage Controller
- RAID SATA 6Gb/s RAID 0, 1, JBOD
- Networking
- 10Mb LAN, 100Mb LAN, 1GbE
- IP Cameras Supported
- 40
- RAM
- 2 GB
- Power
- AC 120/230 V
- Storage Operating System
- QNAP QTS 4.2
- System Requirements
- UNIX, Linux, Microsoft Windows Server 2003, Apple MacOS X or later, Microsoft Windows Server 2008 R2, Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2012, Windows 8 (32/64 bits), Microsoft Windows Server 2012 R2
Detailed Specification
General
- Device Type
- NAS server
- Host Connectivity
- Gigabit Ethernet
- Total Storage Capacity
- 0 GB
- Installed Devices / Modules Qty
- 0 (installed) / 2 (max)
- Width
- 10.2 cm
- Depth
- 22.5 cm
- Height
- 16.85 cm
- Weight
- 1.28 kg ()
- Built-in Devices
- Led panel
Processor / Memory
- Processors Installed
- 1 x Intel Celeron 2 GHz
- Number of Cores
- Quad-Core
- Max Supported Qty
- 1
- RAM
- 2 GB (installed) / 8 GB (supported) - DDR3L
- Flash Memory Installed
- 512 MB
Storage Controller
- Type
- RAID
- Interface Type
- SATA 6Gb/s
- RAID Level
- RAID 0, RAID 1, JBOD
Networking
- Data Link Protocol
- 10Mb LAN, 100Mb LAN, 1GbE
- Network / Transport Protocol
- TCP/IP, PPTP, L2TP, IPSec, iSCSI, SMTP, FTP, DHCP, Bonjour, SMB, DDNS
- Remote Management Protocol
- SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH
- Network Services Compatibility
- Microsoft Active Directory (AD), Apple Bonjour Protocol, DHCP, DDNS, Microsoft CIFS, Network File System (NFS), FTP, FTPS, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), SFTP
- Features
- Trunking, LDAP support, wake on LAN (WOL), Syslog support, manageable, E-mail alert, print server, IPv6 support, video server, firmware upgradable, proxy server, backup server, download client, file sharing, event log, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, SSH support, iTunes server, Jumbo Frames support, DHCP server, FTP server, SMS alert, BitTorrent Client, UPnP Media Server, bandwidth control, IPv4 support, surveillance station, teaming support, DLNA Media Server, Apple Time Machine compatible, DHCP client, e-mail notification, cloud backup, VPN Server, SFTP client, SNMP support, Apple AirPlay
- Encryption Algorithm
- FIPS 140-2, 256-bit AES
- Compliant Standards
- DLNA CERTIFIED, UPnP
Security DVR
- IP Cameras Supported
- 40
Expansion / Connectivity
- Expansion Bays
- 2 (total) / 2 (free) x hot-swap - 2.5" / 3.5"
- Expansion Slots
- 2 (total) / 1 (free) x SO-DIMM 204-pin
- Interfaces
- 2 x Ethernet 1000Base-T - RJ-45 , 2 x USB 3.0 - Type A , 2 x USB 2.0 - Type A , 1 x HDMI output
Miscellaneous
- Cables Included
- 2 x network cable
- Features
- Security lock slot (cable lock sold separately), audible alarm, remote control, built-in cooling fan
- Security Slot Type
- Kensington security slot
- Included Accessories
- 6 x flat head screws (for 2.5" HDD), 8 x flat head screws (for 3.5" HDD), remote control, power cable
Power
- Power Device
- External power adapter
- Voltage Required
- AC 120/230 V
- Power Consumption Operational
- 18.09 Watt
- Power Provided
- 60 Watt
Software / System Requirements
- Storage Operating System
- QNAP QTS 4.2
- OS Required
- UNIX, Linux, Microsoft Windows Server 2003, Apple MacOS X or later, Microsoft Windows Server 2008 R2, Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2012, Windows 8 (32/64 bits), Microsoft Windows Server 2012 R2
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
