Description

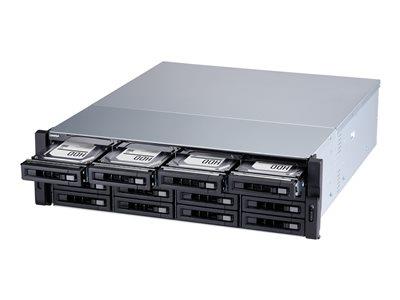

The Intel Xeon E based TS-1683XU-RP enterprise NAS with up to 64 GB DDR4 ECC (Error Correcting Code) memory delivers server-grade performance with dependable reliability. It features Mellanox ConnectX -4 Lx 10GbE controllers that not only fulfill bandwidth-demanding applications but also support iSER to offload CPU workloads with boosted virtualization performance, while PCIe expansion allows for installing graphics cards to empower video surveillance, virtualization and AI applications. The performance-driven TS-1683XU-RP provides you with advanced business-ready features, including software-defined SSD extra over-provisioning, software-defined networking and virtual switch, and much more.
Specifications
Summary
- Product Description
- QNAP TS-1683XU-RP - NAS server
- Device Type
- NAS server
- Host Connectivity
- Gigabit Ethernet / 10Gbps SFP+
- Enclosure Type
- Rack-mountable - 3U
- Installed Devices / Modules Qty
- 0 (installed) / 16 (max)
- Dimensions (WxDxH)
- 48.1 cm x 57.35 cm x 13 cm
- Weight
- 13.76 kg ()
- Processor
- 1 x Intel Xeon E-2124 3.3 GHz (Quad-Core)
- Storage Controller
- RAID SATA 6Gb/s RAID RAID 0, 1, 5, 6, 10, 50, JBOD, 60
- Networking
- 1GbE, 10GbE
- RAM
- 16 GB
- Power
- AC 120/230 V (50/60 Hz)
- Power Redundancy
- Yes
- Storage Operating System
- QNAP QTS 4.3.5
- System Requirements
- UNIX, Linux, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Apple MacOS X 10.7 or later, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2016
Detailed Specification
General
- Device Type
- NAS server
- Host Connectivity
- Gigabit Ethernet / 10Gbps SFP+
- Enclosure Type
- Rack-mountable - 3U
- Total Storage Capacity
- 0 GB
- Installed Devices / Modules Qty
- 0 (installed) / 16 (max)
- Width
- 48.1 cm
- Depth
- 57.35 cm
- Height
- 13 cm
- Weight
- 13.76 kg ()
- Built-in Devices
- Led panel
Processor / Memory
- Processors Installed
- 1 x Intel Xeon E-2124 3.3 GHz
- Number of Cores
- Quad-Core
- Max Supported Qty
- 1
- Max Turbo Speed
- 4.3 GHz
- RAM
- 16 GB (installed) / 64 GB (supported) - DDR4
- Features
- ECC
- Flash Memory Installed
- 4 GB
Storage Controller
- Type
- RAID
- Interface Type
- SATA 6Gb/s
- RAID Level
- RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
Networking
- Data Link Protocol
- 1GbE, 10GbE
- Network / Transport Protocol
- TCP/IP, PPTP, L2TP, IPSec, iSCSI, SMTP, FTP, DHCP, SMB, DDNS
- Remote Management Protocol
- SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH
- Network Services Compatibility
- Microsoft Active Directory (AD), File Level Security (ACLs), DHCP, DDNS, Microsoft CIFS, FTP, FTPS, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV)
- Features
- NAT support, VPN support, load balancing, LDAP support, wake on LAN (WOL), Syslog support, manageable, E-mail alert, IPv6 support, 256-bit encryption, proxy server, Spanning Tree Protocol (STP) support, backup server, download client, file sharing, Access Control List (ACL) support, SSH support, iTunes server, Jumbo Frames support, DHCP server, FTP server, SMS alert, BitTorrent Client, reset button, bandwidth control, IPv4 support, surveillance station, online RAID capacity expansion, online RAID level migration, DLNA Media Server, Apple Time Machine compatible, DHCP client, e-mail notification, static routing, cloud backup, VPN Server, SNMP support, Apple AirPlay, Dropbox support, Real-time Remote Replication (RTRR), Google Drive support, failover protection, built-in hardware transcoding, VPN client, Amazon Cloud Drive support, Yandex Disk support, Microsoft OneDrive support, DLNA support, OpenStack compatible, Chromecast support, iSCSI Extensions over RDMA (iSER), file station, port trunking, IFTTT agent, Microsoft Azure support, Amazon S3 support, Amazon Glacier suport, HiDrive support, FXP support, RTRR server, RTRR client, hybrid backup sync, Qfiling, Qsirch, Qcontactz, Qfinder Pro, Q'center (NAS CMS), Rsync compatible, upload to cloud support, OpenVPN client
- Encryption Algorithm
- SSL, TLS, FIPS 140-2, 256-bit AES
- Compliant Standards
- UPnP
Expansion / Connectivity
- Expansion Bays
- 16 (total) / 16 (free) x hot-swap - 2.5" / 3.5"
- Expansion Slots
- 4 (total) / 2 (free) x DIMM 288-pin , 1 (total) / 1 (free) x PCI Express 2.0 x4 , 2 (total) / 1 (free) x PCI Express 3.0 x4 , 1 (total) / 1 (free) x PCI Express 3.0 x8
- Interfaces
- 4 x Ethernet 1000Base-T - RJ-45 , 2 x USB 3.1 Gen 2 - Type C , 4 x USB 3.1 Gen 2 - Type A , 2 x Ethernet 10Gb - SFP+
Miscellaneous
- Cables Included
- 2 x network cable
- Features
- Security lock slot (cable lock sold separately), audible alarm, built-in 2 cooling fans, scheduled power on/off
- Security Slot Type
- Kensington security slot
- Compliant Standards
- ISO 7779
- Included Accessories
- 64 x flat head screws (for 3.5" HDD), 64 x flat head screws (for 2.5" HDD), 2 x power cables
Power
- Power Device
- Internal power supply
- Installed Qty
- 2
- Max Supported Qty
- 2
- Power Redundancy
- Yes
- Power Redundancy Scheme
- 1+1
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Provided
- 500 Watt
Software / System Requirements
- Storage Operating System
- QNAP QTS 4.3.5
- OS Required
- UNIX, Linux, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Apple MacOS X 10.7 or later, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2016
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
