Description
Application data, virtual images, client files, email… the types of data central to running a successful business can seem endless. ReadyNAS is that advanced and easy-to-use solution for centralizing, securing and controlling access to your digital assets. More than just simple unified (NAS and SAN) storage, ReadyNAS lets you to do more than you ever thought you could afford - pairing the latest in performance with innovative efficiency technologies such as unlimited snapshots, thin provisioning and cloud-managed replication. Designed for the unique needs of SMB, the ReadyNAS Rackmount Series combines advanced features with simple, efficient management.
-
Worry-free long-term data storage with Bitrot Protection
BTR-filesystem based checksum algorithms protect files from degradation/corruption over time. -
Minimized human error
Unlimited data snapshot capability allows the restore of deleted files from previous points in time in hourly intervals. -
Easy capacity expansion
XRAID2 & Instant Provisioning. -
Easy protection against disasters and for branch offices
Web-managed replication to backup data to a second NAS with minimum configuration effort. -
Ready for virtual infrastructures
iSCSI, Thin Provisioning and high performance. -
Protected against outside threats
Anti-virus & Encryption. -
Secure remote access with own VPN (optional)
Modern GUI and Cloud/Remote Access from anywhere for collaboration, sharing and management. -
Disaster Recovery
Web-managed replication for easy and fast restore in case of disaster. -
Virtualization
Thin provisioning, iSCSI support and certified with Microsoft. -
File Server
Unified storage platform for sharing files under Windows, Mac and Linux - with on-board hourly protection. -
Backup
RAID redundancy with automatic expansion, high performance and best-in-class warranty. Compatible with all major backup Software. -
Surveillance
Works as a NVR with all major surveillance software or use ReadyNAS surveillance app for up to 128 cameras.
Specifications
Summary
- Product Description

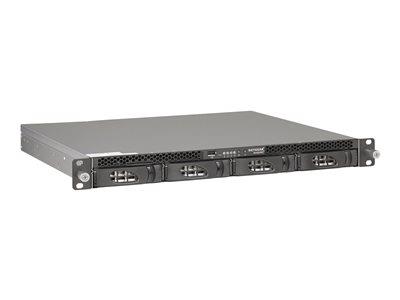

- NETGEAR ReadyNAS 3138 RN3138 - NAS server
- Device Type
- NAS server
- Host Connectivity
- Gigabit Ethernet
- Enclosure Type
- Rack-mountable - 1U
- Max Supported Capacity
- 32 TB
- Installed Devices / Modules Qty
- 0 (installed) / 4 (max)
- Dimensions (WxDxH)
- 48.6 cm x 40.6 cm x 4.4 cm
- Weight
- 5.21 kg ()
- Localisation
- North America, Europe
- Processor
- 1 x Intel Atom C2558 2.4 GHz (Quad-Core)
- Storage Controller
- RAID RAID 0, 1, 5, 6, 10, JBOD
- Networking
- 10Mb LAN, 100Mb LAN, 1GbE
- IP Cameras Supported
- 16
- RAM
- 4 GB
- Power
- AC 120/230 V (50/60 Hz)
- Storage Operating System
- ReadyNAS OS 6.4
- System Requirements
- UNIX, Linux, Apple MacOS X, Microsoft Windows Server 2008 R2, Android, Microsoft Windows 7 (32/64 bits), Oracle Solaris, Apple iOS, Microsoft Windows Server 2012, Windows 8 (32/64 bits), Windows 8.1 (32/64 bits)
- Manufacturer Warranty
- 5-year warranty
Detailed Specification
General
- Device Type
- NAS server
- Host Connectivity
- Gigabit Ethernet
- Enclosure Type
- Rack-mountable - 1U
- Total Storage Capacity
- 0 GB
- Max Supported Capacity
- 32 TB
- Installed Devices / Modules Qty
- 0 (installed) / 4 (max)
- Width
- 48.6 cm
- Depth
- 40.6 cm
- Height
- 4.4 cm
- Weight
- 5.21 kg ()
- Localisation
- North America, Europe
Processor / Memory
- Processors Installed
- 1 x Intel Atom C2558 2.4 GHz
- Number of Cores
- Quad-Core
- RAM
- 4 GB
- Flash Memory Installed
- 128 MB
Storage Controller
- Type
- RAID
- RAID Level
- RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD
Networking
- Data Link Protocol
- 10Mb LAN, 100Mb LAN, 1GbE
- Network / Transport Protocol
- TCP/IP, NTP, DHCP, Bonjour
- Remote Management Protocol
- SNMP 2, SNMP 3, HTTP
- Network Services Compatibility
- Microsoft Active Directory (AD), File Level Security (ACLs), Microsoft CIFS, Network File System (NFS), FTP, FTPS, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV)
- Features
- Dynamic IP address assignment, trunking, load balancing, wake on LAN (WOL), IPv6 support, event log, Access Control List (ACL) support, SSH support, iTunes server, Jumbo Frames support, surveillance station, DLNA Media Server, Apple Time Machine compatible, DHCP client, static routing, cloud managed, Dropbox support, 3 fans, anti-virus protection
- Encryption Algorithm
- 256-bit AES
- Compliant Standards
- IEEE 802.3ad (LACP), UPnP
Security DVR
- IP Cameras Supported
- 16
Expansion / Connectivity
- Expansion Bays
- 4 (total) / 4 (free) x hot-swap - 2.5" / 3.5"
- Interfaces
- 4 x Ethernet 1000Base-T - RJ-45 , 1 x USB 2.0 - Type A , 2 x USB 3.0 - Type A , 2 x eSATA
Miscellaneous
- Cables Included
- 1 x network cable
- Features
- Built-in 3 cooling fans, X-RAID2 technology
- Compliant Standards
- FCC Class B certified, RoHS, VCCI Class B
Power
- Power Device
- Internal power supply
- Installed Qty
- 1
- Max Supported Qty
- 1
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 38 Watt
- Power Provided
- 180 Watt
Software / System Requirements
- Storage Operating System
- ReadyNAS OS 6.4
- OS Required
- UNIX, Linux, Apple MacOS X, Microsoft Windows Server 2008 R2, Android, Microsoft Windows 7 (32/64 bits), Oracle Solaris, Apple iOS, Microsoft Windows Server 2012, Windows 8 (32/64 bits), Windows 8.1 (32/64 bits)
Manufacturer Warranty
- Service & Support
- Limited warranty - replacement - 5 years - response time: next business day , Technical support - phone consulting - 90 days , Technical support - web support - lifetime
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
- Sound Emission
- 28 dBA
