Description

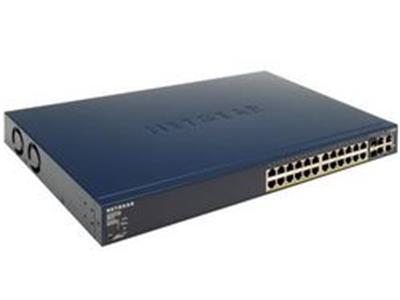

NETGEAR ProSafe FS728TP, provides power and data using built-in IEEE 802.3af PoE on all 24 10/100 ports. In addition, the FS728TP offers advanced features such as Access Control Lists (ACL), 802.1x port authentication, enhanced QoS, rate limiting and IGMP Snooping, to provide a small and medium-sized business with a network geared for growth while providing scalability and reliability. An intuitive web-based management tool provides quick, easy deployment and configuration, making it ideal for deploying VoIP phones, access points and IP surveillance cameras.
-
Robust performance
Equipped with 24 PoE ports and a total PoE budget of 192 W, this switch is designed to power and connect multiple devices efficiently. Its 1 MB and 4 MB packet buffers ensure smooth data transmission, minimizing bottlenecks for high-demand applications. -
Comprehensive security
Features like 802.1x authentication, Access Control List (ACL) support, and Denial of Service (DoS) prevention provide a secure network environment. These measures protect against unauthorized access and network threats, ensuring safe and reliable operations. -
Advanced networking capabilities
Supports a wide range of networking standards including IEEE 802.1Q VLAN, IEEE 802.1p Class of Service (CoS), and Quality of Service (QoS) for traffic prioritization. These features facilitate efficient data flow management, enhancing network performance and reliability. -
Easy management
Manageable via HTTP, SNMP, and RMON, this switch offers versatile management options. Its remote management protocols enable easy setup, monitoring, and maintenance of the network from anywhere, simplifying network administration tasks. -
Durable and reliable
With a Mean Time Between Failures (MTBF) of 237,497 hours and a comprehensive set of compliance standards, this switch is built for long-term, dependable service in various operational environments.
Specifications
Summary
- Product Description
- NETGEAR FS728TP - switch - 24 ports - Managed - rack-mountable
- Device Type
- Switch - 24 ports - Managed
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Fast Ethernet
- Ports
- 24 x 10/100 (PoE) + 2 x 10/100/1000 + 2 x combo Gigabit SFP
- Power Over Ethernet (PoE)
- PoE
- PoE Budget
- 192 W
- Capacity
- Virtual interfaces (VLANs): 128 , Priority queues per port: 8 , Layer 2 multicast groups: 512
- MAC Address Table Size
- 4K entries
- Routing Protocol
- IGMPv2, IGMP, IGMPv3
- Remote Management Protocol
- SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, HTTP, TFTP
- Features
- Flow control, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, WRED, STP support, RSTP support, MSTP support, DHCP snooping, TFTP support, ACL support, QoS, LACP support, LLDP support, DHCP client, 1MB packet buffer, Multicast filtering function, CoS, DoS, 4MB packet buffer, 802.1x authentication, VoIP support, DSCP support, administrator's password, BPDU
- Compliant Standards
- IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
- Dimensions (WxDxH)
- 44 cm x 25.7 cm x 4.3 cm
- Weight
- 3.57 kg
- Localisation
- Europe
- Manufacturer Warranty
- NETGEAR lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 24 ports - Managed
- Enclosure Type
- Desktop, rack-mountable 1U
- Subtype
- Fast Ethernet
- Ports
- 24 x 10/100 (PoE) + 2 x 10/100/1000 + 2 x combo Gigabit SFP
- Power Over Ethernet (PoE)
- PoE
- PoE Budget
- 192 W
- Capacity
- Virtual interfaces (VLANs): 128 , Priority queues per port: 8 , Layer 2 multicast groups: 512
- MAC Address Table Size
- 4K entries
- Routing Protocol
- IGMPv2, IGMP, IGMPv3
- Remote Management Protocol
- SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, HTTP, TFTP
- Authentication Method
- RADIUS, TACACS+
- Features
- Flow control, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, WRED, STP support, RSTP support, MSTP support, DHCP snooping, TFTP support, ACL support, QoS, LACP support, LLDP support, DHCP client, 1MB packet buffer, Multicast filtering function, CoS, DoS, 4MB packet buffer, 802.1x authentication, VoIP support, DSCP support, administrator's password, BPDU
- Compliant Standards
- IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
- Status Indicators
- Port transmission speed, power, PoE, link/activity, fan
Expansion / Connectivity
- Interfaces
- 24 x 100Base-TX RJ-45 PoE , 4 x 1000Base-T RJ-45 , 2 x 1000Base-X SFP
Power
- Power Device
- Internal power supply
- Power Consumption Operational
- 256 Watt
Miscellaneous
- Rack Mounting Kit
- Included
- MTBF
- 237,497 hours
- Compliant Standards
- cUL, EN 60950, IEC950, UL 1950, EN55024, CSA 22.2 No. 950, EN55022 Class A, CISPR 22, EN50082-1, CCC, FCC Part 15 A, C-Tick Class A, VCCI Class A
- Localisation
- Europe
Dimensions & Weight
- Width
- 44 cm
- Depth
- 25.7 cm
- Height
- 4.3 cm
- Weight
- 3.57 kg
Manufacturer Warranty
- Service & Support
- NETGEAR lifetime warranty
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 90% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 95% (non-condensing)
Customer reviews
Write a review for the NETGEAR ProSAFE 24-PORT 10/100 PoE Smart Switch with 4 Gigabit Ports here!
Great Value PoE Layer 2 Switch
Reviewed by Gary. Review Posted 19/11/2007
We just started using the Netgear FS728TP switch to run some wireless access points using power of ethernet (PoE). All of the 24 fast ethernet ports support PoE automatically to devices that request it all over standard CAT5 ethernet cabling. You can mix normal devices (PCs/Printers) with PoE devices. The switch supports VLANS so we can separate public and private traffic on the same switch. SNMP support allows remote monitoring of all the important statistics and switch status and the easy to use web interface makes administration really easy with no hard to remember command line stuff.
The switch also supports port trunking, QoS and provides a port monitoring facility for network debugging. A really advanced feature set, great price and easy to use. We love it.
-
Overall
-
Ease of use
-
Value for money
Well recommended
Reviewed by Chris. Review Posted 15/10/2007
Although this switch does have fan noise, I would have to say that a switch of this class is designed more for cabinet mounting, not desktop use.
This is a switch that is great value for money - it will work right out of the box, providing power over ethernet to devices such as VoIP phones, Webcams, etc whilst also offering a vast array of configuration items for the more advanced user such as SNMP, Qos & VLans.
The build quality is excellent as well - this feels solid and includes rack mounting fixings as well.
Overall, a highly recommended switch
-
Overall
-
Ease of use
-
Value for money
Can't hear you!
Reviewed by david. Review Posted 29/08/2007
High levels of fan noise with this switch which makes it unsuitable for an office environment.
-
Overall
-
Ease of use
-
Value for money
