Description
Insight Managed Smart Cloud Switches are the first switches from NETGEAR with anywhere configuration and management. Using either the NETGEAR Insight app on your mobile device or tablet, or the Insight Cloud Portal from your PC, Mac, or tablet, you can quickly discover, setup, monitor and manage your Smart Cloud Switches from anywhere in the world! With their remote cloud manageability, sleek design silent or whisper-quiet operation, they are the most versatile switches in the market for any environment. Whether at home, out of the office or on a business trip, you can still manage and monitor your network as if you were right there.
-
Experience the most versatile and easy to manage Advanced Smart switches in the market
Insight Managed Smart Cloud Switches are the first switches from NETGEAR with anywhere configuration and management. Using either the NETGEAR Insight app on your mobile device or tablet, or the Insight Cloud Portal from your PC, Mac, or tablet, you can quickly discover, setup, monitor and manage your Smart Cloud Switches from anywhere in the world! With their remote cloud manageability, sleek design silent or whisper-quiet operation, they are the most versatile switches in the market for any environment. Whether at home, out of the office or on a business trip, you can still manage and monitor your network as if you were right there. -
Fully-integrated cloud-manageable devices
NETGEAR Insight Managed switches are fully-integrated, cloudmanageable, plug-and-play devices. Just connect to your network and without any setup, they’re passing traffic. For configuration setup, management, and monitoring, you can use the Insight mobile app on your mobile device or the Insight Cloud Portal from your PC, Mac, or tablet web browser. No additional cloud controller, appliance, network manager, or on-premise cloud server necessary. -
Clean, sleek silent (or whisper-quiet) designs
Insight Managed switches have a modern, clean design, with at-aglance power/cloud and and PoE max LEDs for quick status monitoring. Additionally, on-port LEDs for link/activity and PoE power allow for port-specific connectivity monitoring. Both models are fanless for silent, anywhere deployment in noise-sensitive environments, and include a wall-mount kit for flexible placement. -
Network-centric configuration and management
NETGEAR Insight Managed Switches and Wireless Access Points using the NETGEAR Insight app allow for cross-device automated configuration of VLANs, QoS, ACLs, and LAGs. Auto-join and configure (zero-touch privisioning) allows for additional devices added seamlessly.
Specifications
Summary
- Product Description

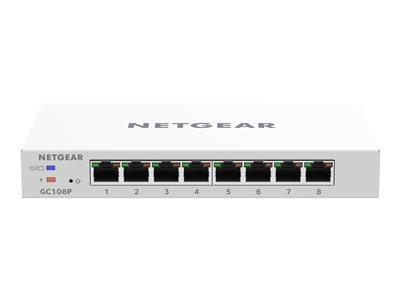

- NETGEAR Smart GC108P - switch - 8 ports - smart
- Device Type
- Switch - 8 ports - L3 Lite - smart
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 64 W
- Performance
- Fabric throughput: 16 Gbps , 1 Gbps copper latency (64-byte packets): 3460 µs , Packet buffer size: 512 KB , Packet forwarding rate: 11.9 Mfps , 1 Gbps copper latency (1518-byte packets): 3360 µs , 1 Gbps copper latency (9216-byte packets): 3560 µs
- Capacity
- ACL: 100 , VLANs supported: 64 , ARP entries: 512 , IPv4 routes (static): 32 , Priority queues: 8 , IGMP multicast groups: 256
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 10000 bytes
- Routing Protocol
- IGMPv2, IGMP, IGMPv3, static IPv4 routing, MLDv2, MLD, MSTP, RSTP, STP
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, TFTP, IPv4, IPv6
- Features
- Flow control, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, store and forward, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, firmware upgradable, STP support, DHCP snooping, ACL support, QoS, MLD snooping, fanless, LACP support, DHCP client, MVR, dual firmware images, loop prevention, SP, cloud managed, ToS, DSCP support, cable test, ICMP Router Discovery Protocol (IRDP), DNS client, LLDP-MED, Private VLAN, Guest VLAN, protected ports, EEE, PoE timer, WRR, VLAN Tagging, Unknown Storm Control, security slot (Kensington security lock compatible)
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, UPnP
- Dimensions (WxDxH)
- 18.8 cm x 11 cm x 2.7 cm
- Weight
- 520 g
- Localisation
- United Kingdom
- Manufacturer Warranty
- 5-year warranty
Detailed Specification
General
- Device Type
- Switch - 8 ports - L3 Lite - smart
- Enclosure Type
- Desktop, wall-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 64 W
- Performance
- Fabric throughput: 16 Gbps , 1 Gbps copper latency (64-byte packets): 3460 µs , Packet buffer size: 512 KB , Packet forwarding rate: 11.9 Mfps , 1 Gbps copper latency (1518-byte packets): 3360 µs , 1 Gbps copper latency (9216-byte packets): 3560 µs
- Capacity
- ACL: 100 , VLANs supported: 64 , ARP entries: 512 , IPv4 routes (static): 32 , Priority queues: 8 , IGMP multicast groups: 256
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 10000 bytes
- Routing Protocol
- IGMPv2, IGMP, IGMPv3, static IPv4 routing, MLDv2, MLD, MSTP, RSTP, STP
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, TFTP, IPv4, IPv6
- Encryption Algorithm
- TLS 1.0
- Authentication Method
- RADIUS, Extensible Authentication Protocol (EAP)
- Features
- Flow control, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, store and forward, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, firmware upgradable, STP support, DHCP snooping, ACL support, QoS, MLD snooping, fanless, LACP support, DHCP client, MVR, dual firmware images, loop prevention, SP, cloud managed, ToS, DSCP support, cable test, ICMP Router Discovery Protocol (IRDP), DNS client, LLDP-MED, Private VLAN, Guest VLAN, protected ports, EEE, PoE timer, WRR, VLAN Tagging, Unknown Storm Control, security slot (Kensington security lock compatible)
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, UPnP
- Processor
- : 500 MHz
- RAM
- 128 MB
- Flash Memory
- 32 MB
- Status Indicators
- Power, PoE, link/activity/speed, cloud
Expansion / Connectivity
- Interfaces
- 8 x 10/100/1000 Base-T RJ-45 PoE+
Power
- Power Device
- External power adapter
- Power Consumption Operational
- 66.7 Watt
Miscellaneous
- MTBF
- 2,635,395 hours
- Compliant Standards
- BSMI, BSMI CNS 13438 Class A, UL 60950-1 Second Edition, KCC, RCM, EN 61000-3-3:2013, YD/T993-1998, FCC CFR47 Part 15 B Class A, GB 4943.1-2011, EN 55024:2010+A1:2015, KN32, KN35, CNS 14336-1, ANSI C63.4-2014, AS/NZS 60950-1:2015, ICES-003:2016 issue 6 Class A, CISPR 32:2015 Class A, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, EN 61000-3-2:2014 Class A, VCCI-CISPR 32:2016 Class A, AS/NZS CISPR32:2015 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, GB/T9254-2008, EN 55032:2015+AC:2016 Class A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
- Localisation
- United Kingdom
Dimensions & Weight
- Width
- 18.8 cm
- Depth
- 11 cm
- Height
- 2.7 cm
- Weight
- 520 g
Manufacturer Warranty
- Service & Support
- Limited warranty - replacement - 5 years - response time: next business day , Limited warranty - replacement - power supply - 2 years - response time: next business day , Technical support - 90 days
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 0 - 90% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 0 - 95% (non-condensing)
