Description

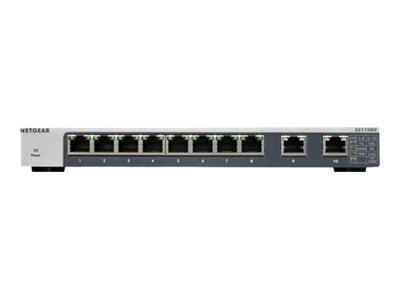

NETGEAR GS110MX Managed Switch. Perfect for a desktop and it's rack-mountable or even wall-mountable.
-
Robust performance
With a switching capacity of 56 Gbps, the NETGEAR GS110MX ensures efficient handling of network traffic, maintaining optimal performance even in high-demand environments. -
Versatile connectivity
Equipped with 8 ports of 1000Base-T and 2 uplink ports supporting speeds up to 10G, this switch offers a wide range of connection options for various networking needs, from standard to high-speed requirements. -
Advanced networking features
Features such as 128KB packet buffer, DiffServ Code Point (DSCP) support, Link Aggregation, and port mirroring enhance network management and efficiency, providing tools for sophisticated traffic prioritization and monitoring. -
Flexible installation options
The NETGEAR GS110MX can be easily integrated into any setup with its desktop, rack-mountable, and wall-mountable form factors, accompanied by a rack mounting kit for seamless installation. -
Energy-efficient design
Incorporating the IEEE 802.3az (Energy Efficient Ethernet) standard, this switch optimizes power usage, reducing operational costs without compromising performance.
Specifications
Summary
- Product Description
- NETGEAR GS110MX - switch - 8 ports - unmanaged - rack-mountable
- Device Type
- Switch - 8 ports - unmanaged
- Enclosure Type
- Rack-mountable
- Subtype
- 10 Gigabit Ethernet
- Ports
- 8 x 1000Base-T + 2 x 100/1000/2.5G/5G/10G (uplink)
- Performance
- Fabric throughput: 56 Gbps , Latency (10 Gbps): < 3 µs , Latency (1000 Mbps): < 4 µs , Latency (100 Mbps): < 7 µs , Packet forwarding rate: 41.664 Mfps
- Capacity
- MAC address entries: 16000 , Priority queues: 8
- Jumbo Frame Support
- 10240 bytes
- Features
- Trunking, DoS attack prevention, port mirroring, Quality of Service (QoS), Jumbo Frames support, fanless, 128KB packet buffer, Energy Efficient Ethernet, loop prevention, DiffServ Code Point (DSCP) support, cable test, Link Aggregation, Voice VLAN
- Compliant Standards
- IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
- Dimensions (WxDxH)
- 23.6 cm x 10.2 cm x 2.7 cm
- Weight
- 740 g
- Localisation
- United Kingdom
- Manufacturer Warranty
- ProSAFE lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 8 ports - unmanaged
- Enclosure Type
- Desktop, rack-mountable, wall-mountable
- Subtype
- 10 Gigabit Ethernet
- Ports
- 8 x 1000Base-T + 2 x 100/1000/2.5G/5G/10G (uplink)
- Performance
- Fabric throughput: 56 Gbps , Latency (10 Gbps): < 3 µs , Latency (1000 Mbps): < 4 µs , Latency (100 Mbps): < 7 µs , Packet forwarding rate: 41.664 Mfps
- Capacity
- MAC address entries: 16000 , Priority queues: 8
- Jumbo Frame Support
- 10240 bytes
- Features
- Trunking, DoS attack prevention, port mirroring, Quality of Service (QoS), Jumbo Frames support, fanless, 128KB packet buffer, Energy Efficient Ethernet, loop prevention, DiffServ Code Point (DSCP) support, cable test, Link Aggregation, Voice VLAN
- Compliant Standards
- IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
- Status Indicators
- Power, link/activity/speed
Power
- Power Device
- External power adapter
- Installed Qty
- 1
- Power Consumption Operational
- 13.2 Watt
Miscellaneous
- Included Accessories
- Rubber feet, wall mounting kit
- Rack Mounting Kit
- Included
- Compliant Standards
- CB, UL 60950-1, KC, EAC, CNS 13438, EN 61000-3-3:2013, EN 61000-3-2:2014, FCC CFR47 Part 15 B Class B, EN 55024:2010+A1:2015, EN 55032:2012+AC:2013 Class A, ANSI C63.4-2014, AS/NZS 60950-1:2015, CISPR 32:2012, CAN/CSA-C22.2 No. 60960-1-07, ICES-003:2016 issue 6 Class B, AS/NZS CISPR 32:2013 Class B, EN 55032:2015+AC:2016, CISPR 32:2015+COR1:2016, VCCI-CISPR 32:2016 Class B, AS/NZS CISPR32:2015 Class B, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
- Localisation
- United Kingdom
Dimensions & Weight
- Width
- 23.6 cm
- Depth
- 10.2 cm
- Height
- 2.7 cm
- Weight
- 740 g
Manufacturer Warranty
- Service & Support
- Limited warranty - replacement - lifetime , Technical support - on-site
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 90% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 90% (non-condensing)
