Description
Designed for business-class management, security, speed, and quality of service, Linksys smart PoE+ Gigabit Switches provide a network your business can grow on. Numerous QoS features ensure that traffic is prioritized properly to deliver the best possible user experience for real-time applications like voice and video along with bandwidth-intensive graphic/video file uploads and downloads. IGMP snooping limits IP multicast traffic to the ports that requested it, enabling the rest of the network to operate at peak efficiency.
-
Quality of Service (QoS)
Numerous QoS features ensure that traffic is prioritized properly to deliver the best possible user experience for real-time applications like voice and video along with bandwidth-intensive graphic/video file uploads and downloads. IGMP snooping limits IP multicast traffic to the ports that requested it, enabling the rest of the network to operate at peak efficiency. -
Power over Ethernet Plus (PoE+)
Linksys smart switches support the latest 802.3at (PoE+) standards and provide up to double the power budget per Gigabit Ethernet port while offering 802.3af (PoE) backward compatibility. Power over Ethernet reduces electrical wiring costs, simplifies installation, and supports network devices such as IP cameras and wireless access points in optimal indoor and outdoor locations. -
Network security
Unauthorized access to the network and mission-critical data is a constant concern. Linksys smart switches help secure networks through port authentication and MAC-based port security, requiring clients to authenticate themselves before any data is passed. Advanced DHCP snooping and IP-MAC binding functions ensure network integrity and help prevent network attacks. -
Network expansion
Linksys smart switches include features for quickly expanding and growing your network. Multiple high-bandwidth trunks between switches enhance availability and redundancy. Spanning Tree Protocol (STP) and storm control features help control planned or inadvertent cable loops, so you can confidently build a mesh of switches and quickly expand your network to support your growing workforce.
Specifications
Summary
- Product Description

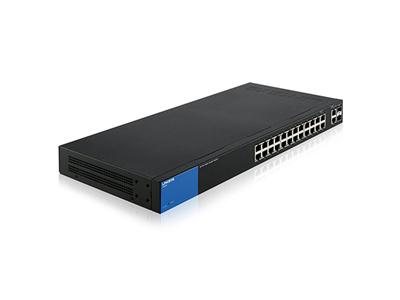

- Linksys Business Smart LGS326 - switch - 26 ports - Managed - rack-mountable
- Device Type
- Switch - 26 ports - Managed
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000 + 2 x combo Gigabit SFP
- Performance
- Switching capacity: 52 Gbps , Forwarding performance: 38.69 Mpps
- Capacity
- MAC addresses: 8000 , Active VLANs: 128 , QoS hardware entries: 4
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 9000 bytes
- Routing Protocol
- IGMPv2, IGMP
- Remote Management Protocol
- SNMP 1, RMON, Telnet, SNMP 2c, HTTP, HTTPS, TFTP
- Features
- Flow control, DHCP support, VLAN support, IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Quality of Service (QoS), RADIUS support, Jumbo Frames support, LACP support, Port Security, IP-MAC binding, DHCP client, Dynamic VLAN Support (GVRP), Class of Service (CoS), tagged VLAN, 802.1x authentication, DiffServ Code Point (DSCP) support
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x
- Power
- AC 100/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 44 cm x 20 cm x 4.4 cm
- Weight
- 2.424 kg
- Localisation
- United Kingdom
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 26 ports - Managed
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000 + 2 x combo Gigabit SFP
- Performance
- Switching capacity: 52 Gbps , Forwarding performance: 38.69 Mpps
- Capacity
- MAC addresses: 8000 , Active VLANs: 128 , QoS hardware entries: 4
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 9000 bytes
- Routing Protocol
- IGMPv2, IGMP
- Remote Management Protocol
- SNMP 1, RMON, Telnet, SNMP 2c, HTTP, HTTPS, TFTP
- Authentication Method
- RADIUS
- Features
- Flow control, DHCP support, VLAN support, IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Quality of Service (QoS), RADIUS support, Jumbo Frames support, LACP support, Port Security, IP-MAC binding, DHCP client, Dynamic VLAN Support (GVRP), Class of Service (CoS), tagged VLAN, 802.1x authentication, DiffServ Code Point (DSCP) support
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x
- RAM
- 128 MB
- Status Indicators
- System, link/activity
Expansion / Connectivity
- Interfaces
- 26 x 1000Base-T RJ-45 , 2 x SFP
Power
- Voltage Required
- AC 100/230 V (50/60 Hz)
Miscellaneous
- Localisation
- United Kingdom
Dimensions & Weight
- Width
- 44 cm
- Depth
- 20 cm
- Height
- 4.4 cm
- Weight
- 2.424 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 10 - 90%
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 10 - 90% (non-condensing)
