Description

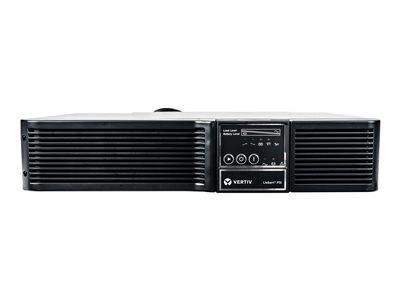

Liebert PSI 1500VA is a compact, line-interactive UPS system designed especially for IT applications such as network closets and small data centers. The flexible design of Liebert PSI allows the UPS to be configured as a self-standing tower or to be rack-mounted within a 2U space. It provides reliable power protection for servers, critical nodes, network workstations, large network peripherals, network routers, bridges, and other electronic equipment.
-
Efficient power management
The Liebert PSI UPS features line interactive UPS technology, ensuring efficient power management and protection against power outages and fluctuations. Its sinewave output waveform ensures a smooth and consistent power supply to connected devices. -
Rapid recharge capability
Equipped with hot-swappable batteries that recharge in just 5 hr, the Liebert PSI UPS minimizes downtime, ensuring your operations are back up and running quickly after a power disruption. -
Comprehensive connectivity
This UPS offers a variety of connectivity options including RS-232 and USB interfaces, allowing for easy management and monitoring of the power supply system. The inclusion of an EPO (emergency power off) port adds an extra layer of safety in critical situations. -
Designed for durability
The Liebert PSI UPS comes with a robust plug-in module design and is compliant with RoHS standards, ensuring reliable performance in a range of environmental conditions, from 0°C to 40°C.
Specifications
Summary
- Product Description
- Liebert PSI PS1500RT3-230 - UPS - 1350 Watt - 1500 VA
- Device Type
- UPS - Power Factor Correction (PFC) - rack-mountable / external
- Rack Size
- 2U
- Weight
- 20.9 kg
- Input Wiring
- 1-phase
- Input Voltage
- AC 220/230/240 V
- Output Voltage
- AC 220/230/240 V ± 5%
- Power Capacity
- 1350 Watt / 1500 VA
- Input Connectors
- 1 x power IEC 60320 C14
- Output connectors
- 8 x power IEC 60320 C13 - 230 V
- Battery
- Lead Acid - 9 Ah
- Battery Form Factor
- Plug-in module
- Batteries Qty
- 3
- Run Time (Up To)
- 3 min at full load
- Networking
- RS-232, USB
- Included Accessories
- Tower stand
- Colour
- Black
- Dimensions (WxDxH)
- 44 cm x 41.2 cm x 8.8 cm
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- UPS - Power Factor Correction (PFC) - rack-mountable / external
- Battery Enclosure Type
- Plug-in module
- Height (Rack Units)
- 2U
- Colour
- Black
Power Device
- UPS Technology
- Line interactive
- Input Voltage
- AC 220/230/240 V
- Input Voltage Range
- AC 165 - 300 V
- Frequency Provided
- 50/60 Hz
- Input Wiring
- 1-phase
- Frequency Required
- 50/60 Hz
- Input Connectors
- 1 x power IEC 60320 C14
- Power Output Connectors Details
- 8 x power IEC 60320 C13 - 230 V
- Output Voltage
- AC 220/230/240 V ± 5% - 50/60 Hz
- Power Capacity
- 1350 Watt / 1500 VA
- Output Waveform
- Sinewave
- Surge Suppression
- Yes
- Surge Energy Rating
- 220 Joules
- Circuit Protection
- Circuit breaker
- Power Factor (PF)
- 0.9
Battery
- Quantity
- 3
- Technology
- Lead Acid
- Voltage Provided
- 12 V
- Capacity
- 9 Ah
- Run Time (Up To)
- 3 min at full load , 3 min at 90% load , 4 min at 80% load , 5 min at 70% load , 7 min at 60% load , 9 min at half load , 12 min at 40% load , 17 min at 30% load , 32 min at 20% load , 76 min at 10% load
- Recharge Time
- 5 hours
- Transfer Time
- 4 ms
- Features
- Sealed
Networking
- Remote Management Interface
- RS-232, USB
Expansion / Connectivity
- Interfaces
- 1 x USB 2.0 - 4 pin USB Type B , 1 x management (RS-232) - 9 pin D-Sub (DB-9) , 1 x EPO (emergency power off)
- Expansion Slots
- 1 (total) / 1 (free) x Expansion Slot
Miscellaneous
- Included Accessories
- Tower stand
- Cables Included
- USB cable - external , 2 x power cable - external
- Rack Mounting Kit
- Included
- Features
- LED display, overload protection, remote ON/OFF function, hot-swappable batteries, VRLA battery support, forced cooling
- Compliant Standards
- EN 61000-3-2, IEC 61000-3-2, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-6, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, IEC 62040-1-1, IEC 62040-2, RoHS, EN 62040-1-1, EN 62040-2, IP20
Software / System Requirements
- Software Included
- Liebert MultiLink
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 90%
- Sound Emission
- 45 dB
Dimensions & Weight
- Width
- 44 cm
- Depth
- 41.2 cm
- Height
- 8.8 cm
- Weight
- 20.9 kg
Dimensions & Weight (Shipping)
- Shipping Width
- 56 cm
- Shipping Depth
- 59.5 cm
- Shipping Height
- 22.8 cm
- Shipping Weight
- 24.1 kg
