Description
Create an all-in-one PC using this 21.5" Full HD display, which is compatible with any ThinkCentre Tiny. The ThinkCentre Tiny simply inserts into the dedicated compartment behind the screen, enabling the PC to be upgraded independently of the display. Integrated web conferencing features include an adjustable webcam and speakers.
-
Modular convenience
The ThinkCentre TIO22 Gen 4 makes it easy to create your own modular all-in-one (AIO)-simply plug a compatible ThinkCentre Tiny, Nano, or similar PC (not supplied) into the back of monitor. It instantly becomes a self-contained, fully functional AIO. But unlike other AIOs, the monitor and CPU refresh separately, making upgrades efficient and easy. The TIO is compatible with most ThinkCentre Tiny or Nano PCs*, so you can have the right all-in-one for your business now. -
Purposeful design
This TIO's 21.5" FHD display is sleek and borderless and the unit takes up less space than previous generations. Its back cover has been redesigned for optimal heat dissipation and PC performance, and the stand includes a handy storage slot for your smartphone. The display also offers optional 10-point multitouch. It can also be used as a second display for your laptop, via DisplayPort. -
Connect and collaborate
Thanks to the two 2W speakers and 720p rotatable camera and microphone, video calls are seamless and crystal-clear. The camera also features ThinkShutter, a privacy cover for when you're not videoconferencing. Additionally, the TIO22 Gen 4 has plenty of ports, all conveniently situated for you to recharge and connect your other devices. -
Ease& comfort of use
The TIO22 Gen 4 has been independently tested and certified by TÜV Rheinland to be eye-friendly. It also has an antiglare filter to help make your viewing more comfortable. Its redesigned stand has an additional 40mm of vertical lift, allowing for better ergonomics and more range in meeting your eye level. It also swivels 45 degrees in either direction, while the display tilts from-5 to 30 degrees and even rotates up to 90 degrees clockwise.
Specifications
Summary
- Product Description

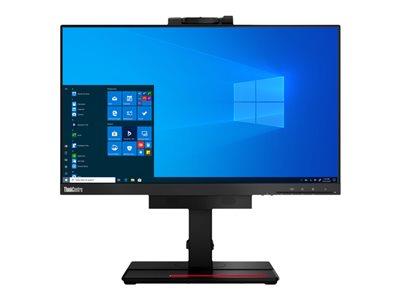

- Lenovo ThinkCentre Tiny-in-One 22 Gen 4 - LED monitor - Full HD (1080p) - 21.5"
- Device Type
- LED-backlit LCD monitor - 21.5"
- Energy Class
- Class E
- Features
- USB 3.1 Gen 1 hub, 720p camera with dual microphone and Think Shutter
- Aspect Ratio
- 16:9
- Native Resolution
- Full HD (1080p) 1920 x 1080
- Pixel Pitch
- 0.24795 mm
- Brightness
- 250 cd/m²
- Contrast Ratio
- 1000:1
- Response Time
- 6 ms, 4 ms (overdrive), 14 ms (default)
- Colour Gamut
- 72% NTSC (CIE 1931)
- Input Connectors
- DisplayPort
- Display Position Adjustments
- Height, pivot (rotation), swivel, tilt
- Screen Coating
- Anti-glare
- Voltage
- AC 120/230 V (50/60 Hz)
- Colour
- Black
- Dimensions (WxDxH) - with stand (lowest position)
- 48.93 cm x 22.04 cm x 41.82 cm
- Weight
- 6.58 kg
- Localisation
- EMEA
- Environmental Standards
- ENERGY STAR Qualified EPEAT Silver
- Compliant Standards
- UL, VESA FPMPMI, RoHS, WEEE, GREENGUARD, Energy-Related Products (ErP) Lot 5, TUV Rheinland Eye Comfort Certification
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Display Type
- LED-backlit LCD monitor / TFT active matrix
- Energy Class
- Class E
- Diagonal Size
- 21.5"
- Viewable Size
- 22"
- Built-in Devices
- USB 3.1 Gen 1 hub, 720p camera with dual microphone and Think Shutter
- Aspect Ratio
- 16:9
- Native Resolution
- Full HD (1080p) 1920 x 1080
- Pixel Pitch
- 0.24795 mm
- Pixel Per Inch
- 102.4
- Brightness
- 250 cd/m²
- Contrast Ratio
- 1000:1
- Colour Gamut
- 72% NTSC (CIE 1931)
- Response Time
- 6 ms, 4 ms (overdrive), 14 ms (default)
- Horizontal Viewing Angle
- +89 / -89
- Vertical Viewing Angle
- +89 / -89
- Screen Coating
- Anti-glare
- Backlight Technology
- WLED
- Features
- 3-sided bezeless
- Colour
- Black
- Dimensions (WxDxH)
- 48.93 cm x 22.04 cm x 41.82 cm - with stand (lowest position)
- Weight
- 6.58 kg
Audio
- Type
- Speakers - stereo
- Output Power / Channel
- 2 Watt
Connectivity
- Interfaces
- DisplayPort/USB 3.1 gen 1/power (undetachable 3-in-1 cable) , USB 3.1 Gen 1 upstream , DisplayPort , USB 3.1 Gen 1 downstream
Mechanical
- Display Position Adjustments
- Height, pivot (rotation), swivel, tilt
- Tilt Angle
- -5/+30
- Swivel Angle
- 90
- Rotation Angle
- -5/+90
- Height Adjustment
- 150 mm
- VESA Mounting Interface
- 100 x 100 mm
Miscellaneous
- Features
- Security lock slot (cable lock sold separately), 88% efficiency power supply, Tiny PC dock
- Mounting Kit
- Optional
- Compliant Standards
- UL, VESA FPMPMI, RoHS, WEEE, GREENGUARD, Energy-Related Products (ErP) Lot 5, TUV Rheinland Eye Comfort Certification
- Localisation
- EMEA
- Security Slot Type
- Kensington security slot
Power
- Input Voltage
- AC 120/230 V (50/60 Hz)
- Power Consumption SDR (On mode)
- 14 kWh/1000h
- Power Consumption (Typical)
- 14 Watt
- Power Consumption Stand by
- 0.5 Watt
- Power Consumption (Off Mode)
- 0.3 Watt
Dimensions & Weight
- Dimensions & Weight Details
- With stand (lowest position) - width: 48.93 cm - depth: 22.04 cm - height: 41.82 cm - weight: 6.58 kg , With stand (highest position) - width: 48.93 cm - depth: 22.04 cm - height: 56.82 cm - weight: 6.58 kg , Without stand - width: 48.93 cm - depth: 6.53 cm - height: 33.9 cm - weight: 3.41 kg
Sustainability Information
- EPEAT Compliant
- EPEAT Silver
- ENERGY STAR Certified
- Yes
- ENERGY STAR Version
- 8.0
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
