Description
Maximize your office space and minimize your power use, while still enjoying legendary Lenovo service and the powerful application performance you expect from a ThinkCenter Edge business PC.
Specifications
Summary
- Product Description

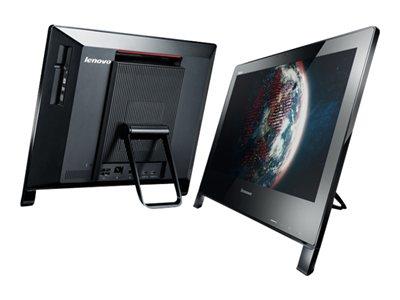

- Lenovo ThinkCentre Edge 92z - all-in-one Core i5 3470S 2.9 GHz - 4 GB - HDD 1 TB - LED 21.5" - QWERTY UK
- Type
- Personal computer - all-in-one - boot without keyboard or mouse, USB port control, boot sequence control, carrying handles
- Localisation
- Language: English / region: United Kingdom
- Processor
- Intel Core i5 (3rd Gen) 3470S / 2.9 GHz (, up to 3.6 GHz, (Quad-Core)
- Processor Socket
- LGA1155 Socket
- Processor Main Features
- Intel Virtualization Technology, Intel Turbo Boost Technology 2
- Cache Memory
- 6 MB
- Cache Per Processor
- 6 MB
- RAM
- 4 GB (installed) / 16 GB (max) - DDR3 SDRAM - non-ECC - PC3-12800
- Storage Controller
- SATA (SATA 6Gb/s)
- Hard Drive
- HDD 1 TB - SATA 6Gb/s - 7200 rpm
- Optical Storage
- DVD-Writer
- Monitor
- 21.5" - LED - 1920 x 1080 (Full HD) - 16:9 - Multi-Touch
- Graphics Controller
- PCIe x16 - AMD Radeon HD 7650A
- Video Memory
- 2 GB
- Audio Output
- Stereo - integrated
- Networking
- 1GbE, 802.11b/g/n, Bluetooth 4.0
- Keyboard
- QWERTY UK
- Power
- AC 120/230 V (50/60 Hz)
- OS Provided
- Microsoft Windows 7 Professional 64-bit Edition
- Colour
- Business black
- Dimensions (WxDxH)
- 54.5 cm x 8.1 cm x 41.4 cm
- Weight
- 8.4 kg
- Environmental Standards
- ENERGY STAR Qualified
- Manufacturer Warranty
- Limited warranty - parts and labour - 1 year - on-site
Detailed Specification
General
- Type
- Personal computer
- Product Form Factor
- All-in-one
- Built-in Devices
- Stereo speakers
- Colour
- Business black
- Localisation
- Language: English / region: United Kingdom
Processor / Chipset
- CPU
- Intel Core i5 (3rd Gen) 3470S
- Clock Speed
- 2.9 GHz
- Max Turbo Speed
- 3.6 GHz
- Number of Cores
- Quad-Core
- CPU Qty
- 1
- Max CPU Qty
- 1
- Processor Main Features
- Intel Virtualization Technology, Intel Turbo Boost Technology 2
- CPU Socket
- LGA1155 Socket
- Chipset Type
- Intel B75 Express
Cache Memory
- Installed Size
- 6 MB
- Cache Per Processor
- 6 MB
RAM
- Installed Size
- 4 GB (installed) / 16 GB (max)
- Technology
- DDR3 SDRAM - non-ECC
- Effective Memory Speed
- 1600 MHz
- Rated Memory Speed
- 1600 MHz
- Memory Specification Compliance
- PC3-12800
- Form Factor
- SO-DIMM 204-pin
- Slots
- 2 (Total) / 1 (empty)
- Configuration Features
- 1 x 4 GB
Hard Drive
- Type
- HDD
- Capacity
- 1 x 1 TB
- Interface Type
- SATA 6Gb/s
- Spindle Speed
- 7200 rpm
Storage Controller
- Type
- 1 x SATA - integrated
- Controller Interface Type
- SATA 6Gb/s
Optical Storage
- Type
- DVD-Writer - SATA
Monitor
- Monitor Type
- LED - IPS - Multi-Touch
- Diagonal Size
- 21.5"
- Native Resolution
- 1920 x 1080 (Full HD)
- Widescreen Display
- Yes
- Image Aspect Ratio
- 16:9
- Image Brightness
- 250 cd/m²
- Image Contrast Ratio
- 1000:1
- Monitor Features
- Infinity Glass, 10-point multi-touch, Projected Capacitive Touch (PCT) technology
Graphics Controller
- Type
- Plug-in card
- Interface Type
- PCIe x16
- Graphics Processor
- AMD Radeon HD 7650A
- Video Memory
- 2 GB
- Video Interfaces
- HDMI
- Max Monitors Supported
- 2
Audio Output
- Type
- Integrated
- Sound Output Mode
- Stereo
- Compliant Standards
- High Definition Audio, Dolby Advanced Audio v2
- Speakers Included
- 2 x right / left channel
Input Device
- Type
- Mouse, keyboard
Keyboard
- Keyboard Name
- Lenovo Ultraslim Wireless Keyboard
- Connectivity
- Wireless
- Localization & Layout
- QWERTY UK
Mouse
- Mouse Name
- Lenovo Mini Wireless Laser Mouse N10
- Connectivity
- Wireless
- Technology
- Laser
Networking
- Ethernet Controller
- Intel 82579LM
- Wireless LAN Supported
- Yes
- Wireless NIC
- Intel Centrino Wireless-N 2230
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0
Expansion / Connectivity
- Slots
- 2 (total) / 1 (free) x PCIe Mini Card , 2 (total) / 1 (free) x SO-DIMM 204-pin , 1 (total) / 0 (free) x CPU , 1 (total) / 1 (free) x mSATA
- Interfaces
- 4 x USB 2.0 , 1 x LAN (Gigabit Ethernet) , 1 x HDMI input , 1 x HDMI output , 2 x USB 3.0 (2 in front) , 1 x microphone (1 in front) , 1 x headphones (1 in front)
Miscellaneous
- Features
- Boot without keyboard or mouse, USB port control, boot sequence control, carrying handles
- Theft/Intrusion Protection
- Security lock slot (cable lock sold separately)
- VESA Mounting Interface
- 100 x 100 mm
- Compliant Standards
- RoHS
Power
- Device Type
- Power supply
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Provided
- 180 Watt
- Efficiency
- 92%
Operating System / Software
- OS Provided
- Microsoft Windows 7 Professional 64-bit Edition English
Sustainability Information
- ENERGY STAR Certified
- Yes
Manufacturer Warranty
- Service & Support
- Limited warranty - parts and labour - 1 year - on-site
Dimensions & Weight
- Width
- 54.5 cm
- Depth
- 8.1 cm
- Height
- 41.4 cm
- Weight
- 8.4 kg
