Description
The flexible paper handling options with up to 2,600 sheets and modern security features, combined with long-life components provides exceptional eflffciency and reliability make the ECOSYS PA5500x the ideal choice to increase overall performance of workgroups. With a print speed of up 55 pages per minute and a fast first print out, it's always ready when you need it.
-
Efficient media handling
Designed to accommodate a variety of media sizes including A4, A5, and B5, the Kyocera ECOSYS PA5500X ensures versatile document handling capabilities. Its max media capacity of 2600 sheets and output trays capacity of 500 sheets make it ideal for high-volume printing needs. -
High-speed performance
With a robust printing speed of up to 55 pages per minute and automatic duplexing, this printer is engineered for efficiency and productivity. The high clock speed of 1.4 GHz by the ARM A53 processor further enhances its performance, ensuring tasks are completed swiftly. -
Superior print quality
Achieve professional-grade monochrome printing with a maximum resolution of 1200 x 1200 DPI. Whether printing simple text documents or detailed graphics, the Kyocera ECOSYS PA5500X delivers sharp, clear output every time.
Specifications
Summary
- Product Description

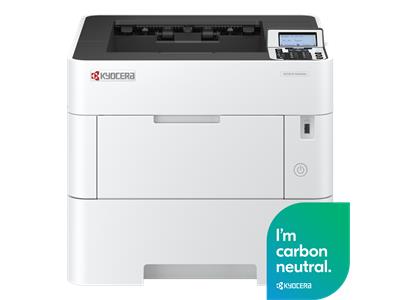

- Kyocera ECOSYS PA5500X - printer - B/W - laser
- Printer Type
- Workgroup printer - laser - B/W
- Weight
- 16.1 kg
- Media Size Class
- A4/Legal
- Max Media Size
- Legal (216 x 356 mm), A4 (210 x 297 mm)
- Min Media Size (Custom)
- 70 mm x 148 mm
- Max Media Size (Custom)
- 216 mm x 356 mm
- Print Speed
- Up to 55 ppm - B/W - A4 (210 x 297 mm) , Up to 39 ppm - B/W duplex - A4 (210 x 297 mm)
- Max Resolution (B&W)
- 1200 x 1200 dpi
- Automatic Duplexing
- Yes
- Interface
- USB 2.0, Gigabit LAN, USB host
- AirPrint Enabled
- Yes
- Processor
- ARM A53 1.4 GHz
- RAM Installed (Max)
- 512 MB (2.5 GB)
- Card Reader
- Yes
- Language Simulation
- PCL 5E, PCL 6, PCL XL, KPDL3, IBM ProPrinter, XPS, EPSON LQ 850, TIFF, PCLm, URF, PWG, JPEG, PDF Direct, PPML
- Media Type
- Plain paper
- Total Media Capacity
- 600 sheets
- Media Handling
- 500-sheet paper cassette, 100-sheet multipurpose tray
- Monthly Duty Cycle (max)
- 250000 pages
- Recommended Monthly Volume
- 27500 pages
- Networking
- Print server
- Printer Features
- PDF direct print, Internet printing, E-mail printing, WSD print, secure printing IPP over TLS, local and network authentication, trusted platform module, secure boot, run time integrity check
- Power
- AC 220-240 V
- System Requirements
- UNIX, Linux, Microsoft Windows, Google Chrome OS, Apple MacOS X 10.9 or later
- Manufacturer Warranty
- 1-year warranty
- Dimensions (WxDxH)
- 38 cm x 41 cm x 32 cm
Detailed Specification
General
- Printer Type
- Workgroup printer - laser - monochrome
Printer
- Print Speed
- Up to 55 ppm - B/W - A4 (210 x 297 mm) , Up to 39 ppm - B/W duplex - A4 (210 x 297 mm)
- Built-in Devices
- LCD display
- Connectivity Technology
- Wired
- Interface
- USB 2.0, Gigabit LAN, USB host
- AirPrint Enabled
- Yes
- Max Resolution (B&W)
- 1200 x 1200 dpi
- Automatic Duplexing
- Yes
- PostScript Support
- Standard
- First Print Out Time B/W
- 4.5 sec
- Language Simulation
- PCL 5E, PCL 6, PCL XL, KPDL3, IBM ProPrinter, XPS, EPSON LQ 850, TIFF, PCLm, URF, PWG, JPEG, PDF Direct, PPML
- Fonts Included
- 93 x outline , 4 x calibri , 4 x cambria , 1 x bitmapped , 45 x barcode
- Printer Features
- PDF direct print, Internet printing, E-mail printing, WSD print, secure printing IPP over TLS, local and network authentication, trusted platform module, secure boot, run time integrity check
- Media Handling
- 500-sheet paper cassette, 100-sheet multipurpose tray
Processor
- Processor
- ARM A53 1.4 GHz
RAM
- RAM Installed (Max)
- 512 MB / 2.5 GB (max)
Card Reader
- Type
- Card reader
- Supported Flash Memory Cards
- SD Memory Card, SDHC Memory Card
Media Handling
- Media Type
- Plain paper
- Media Size Class
- A4/Legal
- Max Media Size
- Legal (216 x 356 mm), A4 (210 x 297 mm)
- Min Media Size (Custom)
- 70 mm x 148 mm
- Max Media Size (Custom)
- 216 mm x 356 mm
- Media Sizes
- ANSI A (Letter) (216 x 279 mm), Legal (216 x 356 mm), A4 (210 x 297 mm), A5 (148 x 210 mm), B5 (176 x 250 mm), Folio (216 x 330 mm)
- Media Weight
- 60 g/m² - 220 g/m²
- Total Media Capacity
- 600 sheets
- Media Feeders
- Multi-purpose tray: 1 x automatic - 100 sheets - Legal (216 x 356 mm) weight: 60 g/m² - 220 g/m² , Paper cassette: 1 x automatic - 500 sheets - Legal (216 x 356 mm) weight: 60 g/m² - 220 g/m²
- Max Media Capacity
- 2600 sheets
- Output Trays Capacity
- 500 sheets
Duty Cycle
- Monthly Duty Cycle (max)
- 250000 pages
- Recommended Monthly Volume
- 27500 pages
Networking
- Networking
- Print server
- Security Protocols & Features
- LDAP, TLS, IPsec, SNMP 3, SMTP
Expansion / Connectivity
- Expansion Slots
- 2 x expansion slot
- Connections
- 1 x USB 2.0 , 2 x USB host , 1 x Gigabit LAN - RJ-45
Miscellaneous
- Consumables Included
- 1 x toner cartridge (black) - up to 10000 pages ISO/IEC 19752 - Kyocera TK-3430 Starter
- Compliant Standards
- ISO 9001, GS, ISO 14001, ISO 7779, TÜV safety certification
Power
- Power Device
- Power supply
- Voltage Required
- AC 220-240 V
- Frequency Required
- 50/60 Hz
- Power Consumption Operational
- 676.1 Watt
- Power Consumption Sleep
- 0.5 Watt
Software / System Requirements
- OS Required
- UNIX, Linux, Microsoft Windows, Google Chrome OS, Apple MacOS X 10.9 or later
Manufacturer Warranty
- Service & Support
- Limited warranty - 1 year
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 32.5 °C
- Humidity Range Operating
- 15 - 80%
- Sound Emission (Operating)
- 56 dBA
Dimensions & Weight
- Width
- 38 cm
- Depth
- 41 cm
- Height
- 32 cm
- Weight
- 16.1 kg
Dimensions & Weight (Shipping)
- Width (Shipping)
- 54.9 cm
- Depth (Shipping)
- 49.4 cm
- Height (Shipping)
- 43.8 cm
- Weight (Shipping)
- 20 kg
