Description
Delivering amazing combination of low latency, ultra endurance, high QoS, and high throughput, the Intel Optane DC P4800X series is the extremely responsive data center hard drive. Built with the excellent memory media, the DC P4800X is the product to combine the attributes of memory and storage. This innovative solution is optimized to break through storage bottlenecks by providing an improved data tier. It accelerates applications for fast caching and storage, increases scale per server, and reduces transaction costs for latency sensitive workloads. In addition, data centers can now also deploy bigger and more affordable data sets to gain insights from large memory pools.
-
Enhanced durability
Equipped with High Endurance Technology (HET) and a robust 41 PB SSD endurance, this solid state drive is designed to withstand the demands of intensive applications, ensuring long-term reliability and performance. -
Exceptional performance
Boasting impressive speeds with 550000 IOPS for 4KB random read and 500000 IOPS for 4KB random write, alongside an average latency of just 10 µs, this SSD delivers swift data access and transfer rates for high-efficiency computing. -
Advanced security
With 256-bit AES hardware encryption, this SSD provides robust security for your data, safeguarding against unauthorized access and ensuring peace of mind. -
Efficient operation
Featuring a power consumption of just 18 W during active use and 6 W in idle mode, this SSD combines high performance with energy efficiency, reducing operational costs. -
Optimal compatibility
Utilizing a PCIe 3.0 x4 (NVMe) interface, this SSD offers seamless integration with a wide range of systems, ensuring a straightforward setup and reliable connection.
Specifications
Summary
- Product Description

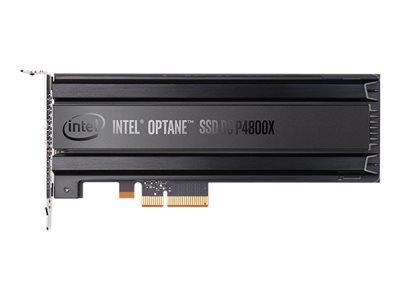

- Intel Optane SSD DC P4800X Series - solid state drive - 750 GB - PCIe 3.0 x4 (NVMe)
- Type
- Solid state drive - internal
- Capacity
- 750 GB
- SSD Technology
- 3D Xpoint (Optane)
- Hardware Encryption
- Yes
- Encryption Algorithm
- 256-bit AES
- NAND Flash Memory Type
- 20nm
- Form Factor
- PCIe card (HHHL)
- Interface
- PCIe 3.0 x4 (NVMe)
- Features
- High Endurance Technology (HET), Temperature Monitoring and Logging, End-to-end data protection, full-height half-length form-factor
- Manufacturer Warranty
- 5-year warranty
Detailed Specification
General
- Device Type
- Solid state drive - internal
- Capacity
- 750 GB
- Hardware Encryption
- Yes
- Encryption Algorithm
- 256-bit AES
- SSD Technology
- 3D Xpoint (Optane)
- NAND Flash Memory Type
- 20nm
- Form Factor
- PCIe card (HHHL)
- Interface
- PCIe 3.0 x4 (NVMe)
- Features
- High Endurance Technology (HET), Temperature Monitoring and Logging, End-to-end data protection, full-height half-length form-factor
Performance
- SSD Endurance
- 41 PB
- Internal Data Rate
- 2500 MBps (read) / 2200 MBps (write)
- 4KB Random Read
- 550000 IOPS
- 4KB Random Write
- 500000 IOPS
- Average Latency
- 10 µs
Reliability
- MTBF
- 2,000,000 hours
- Non-Recoverable Errors
- 1 per 10^17
Expansion & Connectivity
- Interfaces
- 1 x PCI Express 3.0 x4 (NVMe)
- Compatible Bay
- PCIe card (HHHL)
Power
- Power Consumption
- 18 Watt (active) , 6 Watt (idle)
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 70 °C
- Vibration Tolerance (non-operating)
- 3.13 g
