Description
The Intel NUC NUC5i3MYHE kit board, 1 built with a 5th generation Intel Core i3 processor, have a small footprint, but big potential. With 4K display support it's an ideal device for digital signage with video analytics, digital kiosk, intelligent vending, or PC replacement. The advanced capabilities of the Intel Core i3 processor gives your customers performance to run video analytics to help target and personalize messages and offers to the right audience. And the triple display capability means your customers can deliver their messages across multiple screens.
-
Superior processing and graphics
Visibly smart graphics using the advanced processor deliver amazing performance and visually stunning graphics. -
Stunningly small form factor
The compact form factor unlocks a world of potential design applications, from digital signage and kiosks to portable innovations. -
Advanced technology
The NUC features two sockets for expandability of memory, two mini-card connectors for flexible support of wireless and hard drive configurations, BIOS vault technology, fast boot and the Visual BIOS. The NUC also supports The Anti-Theft technology, providing hardware intelligence, designed to protect your device and its data, if its lost or stolen.
Specifications
Summary
- Product Description
- Intel Next Unit of Computing Kit NUC5i3MYHE - mini PC - Core i3 5010U 2.1 GHz - 0 GB - no HDD
- Type
- PC barebone - mini PC - watchdog timer
- Processor
- 1 x Intel Core i3 (5th Gen) 5010U / 2.1 GHz (Dual-Core)
- Processor Main Features
- Hyper-Threading Technology, Intel Virtualization Technology, Intel Wireless Display, Intel 64 Technology
- Cache Memory
- 3 MB
- Cache Per Processor
- 3 MB
- RAM
- 0 GB (installed) / 16 GB (max) - DDR3L SDRAM
- Storage Controller
- SATA (SATA 6Gb/s)
- Hard Drive
- No HDD
- Optical Storage
- No optical drive
- Graphics Controller
- Intel HD Graphics 5500
- Audio Output
- 7.1 channel surround - integrated
- Networking
- 1GbE
- OS Provided
- No operating system
- Colour
- Silver with black top and diamond cut around the top
- Dimensions (WxDxH)
- 11.5 cm x 11.1 cm x 4.87 cm
- Manufacturer Warranty
- Limited warranty - 3 years
Detailed Specification
General
- Type
- PC barebone
- Product Form Factor
- Mini PC
- Embedded Security
- Trusted Platform Module (TPM 2.0) Security Chip
- Colour
- Silver with black top and diamond cut around the top
Processor / Chipset
- CPU
- Intel Core i3 (5th Gen) 5010U
- Clock Speed
- 2.1 GHz
- Number of Cores
- Dual-Core
- CPU Qty
- 1
- Max CPU Qty
- 1
- CPU Upgradability
- Not upgradable
- Processor Main Features
- Hyper-Threading Technology, Intel Virtualization Technology, Intel Wireless Display, Intel 64 Technology
Cache Memory
- Installed Size
- 3 MB
- Cache Per Processor
- 3 MB
RAM
- Installed Size
- 0 GB / 16 GB (max)
- Technology
- DDR3L SDRAM
- Form Factor
- SO-DIMM 204-pin
- Slots
- 2 (Total) / 2 (empty)
- Features
- Dual channel memory architecture
Hard Drive
- Type
- No HDD
Storage Controller
- Type
- SATA - integrated
- Controller Interface Type
- SATA 6Gb/s
Optical Storage
- Type
- No optical drive
Monitor
- Monitor Type
- None.
Graphics Controller
- Type
- Integrated
- Graphics Processor
- Intel HD Graphics 5500
- Video Interfaces
- DisplayPort
Audio Output
- Type
- Integrated
- Sound Output Mode
- 7.1 channel surround
- Compliant Standards
- High Definition Audio
Networking
- Type
- Integrated
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Features
- ACPI support
Expansion / Connectivity
- Bays
- 1 (total) / 1 (free) x internal 2.5"
- Slots
- 2 (total) / 2 (free) x SO-DIMM 204-pin , 2 (total) / 2 (free) x M.2 Card
- Interfaces

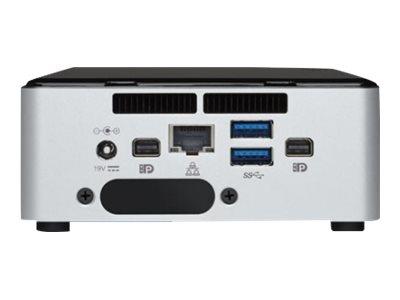

- 4 x USB 3.0 (2 front, 2 rear) , 2 x Mini DisplayPort , 1 x headphones/microphone , 1 x LAN (Gigabit Ethernet) - RJ-45 , 1 x SATA-600 (1 internal)
Miscellaneous
- Included Accessories
- VESA mounting kit
- Features
- Watchdog timer
- Theft/Intrusion Protection
- Security lock slot (cable lock sold separately)
- Security Slot Type
- Kensington security slot
- Compliant Standards
- EN55022, ICES-003, EN55024, CISPR 22, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, BSMI CNS 13438, ACPI 3.0b, VCCI V-3, Directive 2002/96/EC, VCCI V-4, KN22, KN24, China RoHS, Directive 2011/65/UE, CAN/CSA-C22.2 No. 60950-1
Power
- Device Type
- Power adapter
- Power Provided
- 65 Watt
Operating System / Software
- OS Provided
- No operating system
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Dimensions & Weight
- Width
- 11.5 cm
- Depth
- 11.1 cm
- Height
- 4.87 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
