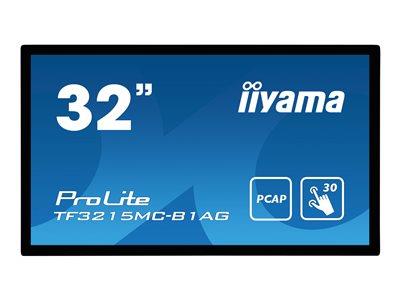

iiyama ProLite TF3215MC-B1AG 32" 1920x1080 8ms VGA HDMI Touchscreen IPS LED Monitor

iiyama ProLite TF3215MC-B1AG 32" 1920x1080 8ms VGA HDMI Touchscreen IPS LED Monitor

Review this product
Quicklinx: FJ2RWS00 Mfr#: TF3215MC-B1AG
Diagonal Size: 31.5in
Max Resolution: 1920 x 1080
Response Time: 8ms
Interfaces: HDMI, VGA (HD-15)
Stock Status: In Stock
Less than 10 in stock
£664.44 ex VAT
£797.32 inc VAT
Qty
Standard delivery Delivered within 3 working days

Description

The ProLite TF3215MC-B1AG (31.5 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge anti-glare coated glass drastically reducing ambient reflections in high-brightness environments without compromising the sharpness and clarity of the image. The rugged bezel equipped with a foam seal finish supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front making it perfect for high use public facing applications. Landscape and portrait orientation ensures flexible mounting possibilities in almost any installation. The TF3215MC-B1AG is the ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

  • Capacitive touch technology

    This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus pen.
  • Ball-drop-test proof

    The ball-drop-test uses a half-kilo steel ball, which is dropped onto the touch screen from a height of 1.3 meter. If the touch screen surface remains unaffected, the monitor passes the ball-drop-test for high impact resistance and durability.
  • Through-glass touch

    This through-glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

Specifications

Summary

Product Description
iiyama ProLite TF3215MC-B1AG - LED monitor - Full HD (1080p) - 31.5"
Device Type
LED-backlit LCD monitor - 31.5" - touchscreen
Features
Touch-screen
Panel Type
A-MVA3
Aspect Ratio
16:9
Native Resolution
Full HD (1080p) 1920 x 1080 at 60 Hz
Pixel Pitch
0.3637 mm
Brightness
500 cd/m²
Contrast Ratio
3000:1
Response Time
8 ms
Colour Support
16.7 million colours
Input Connectors
HDMI, VGA
Screen Coating
7H Hard Coating
Colour
Black
Dimensions (WxDxH)
73.95 cm x 6.1 cm x 43.4 cm
Weight
10.3 kg
Compliant Standards
Plug and Play, DDC-2B, CB, CU, REACH SvHC, IP65 front
Manufacturer Warranty
3-year warranty


Detailed Specification

General

Display Type
LED-backlit LCD monitor / TFT active matrix
Diagonal Size
31.5"
Panel Type
A-MVA3
Aspect Ratio
16:9
Native Resolution
Full HD (1080p) 1920 x 1080 at 60 Hz
Pixel Pitch
0.3637 mm
Brightness
500 cd/m²
Brightness w/touchscreen
425 cd/m²
Contrast Ratio
3000:1
Colour Support
16.7 million colours
Response Time
8 ms
Vertical Refresh Rate
47 - 63 Hz
Horizontal Refresh Rate
30 - 68 kHz
Horizontal Viewing Angle
178
Vertical Viewing Angle
178
Screen Coating
7H Hard Coating
Backlight Technology
LED backlight
OSD Languages
Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese
Bezel Type
Flat front
Features
Cable management cover, HDCP, anti-glare, fanless cooling, landscape mode, portrait mode, 24/7 operating mode, TouchPro Pro-F Projected Capacitive (PCAP) technology, kiosk mode
Colour
Black
Dimensions (WxDxH)
73.95 cm x 6.1 cm x 43.4 cm
Weight
10.3 kg

Input

Type
Touch-screen - touchscreen
Movement Detection Technology
Projected capacitive

Connectivity

Interfaces
VGA , HDMI

Mechanical

VESA Mounting Interface
200 x 200 mm

Miscellaneous

Features
85% light transmittance, front IP65 protection
Cables Included
1 x HDMI cable , 1 x USB cable
Mounting Kit
Included
MTBF
50,000 hour(s)
Compliant Standards
Plug and Play, DDC-2B, CB, CU, REACH SvHC, IP65 front

Power

Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
43 Watt
Power Consumption Stand by
2 Watt

Software / System Requirements

Included Software
Drivers & Utilities

Dimensions & Weight (Shipping)

Shipping Width
89 cm
Shipping Depth
15.5 cm
Shipping Height
63 cm
Shipping Weight
12.85 kg

Manufacturer Warranty

Service & Support
Limited warranty - 3 years

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
