Description
The ProLite TF3215MC-B1 (31.5 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape and portrait orientation ensures flexible mounting possibilities in almost any installation. The TF3215MC-B1 is the ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
-
Capacitive touch technology
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus pen. -
Ball-drop-test proof
The ball-drop-test uses a half-kilo steel ball, which is dropped onto the touch screen from a height of 1.3 meter. If the touch screen surface remains unaffected, the monitor passes the ball-drop-test for high impact resistance and durability. -
Through-glass touch
This through-glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
Specifications
Summary
- Product Description

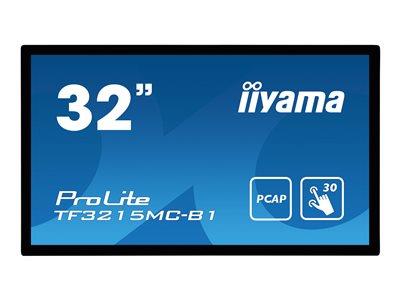

- iiyama ProLite TF3215MC-B1 - LED monitor - Full HD (1080p) - 32"
- Device Type
- LED-backlit LCD monitor - 32" - touchscreen
- Energy Label QR Code URL
- Https://eprel.ec.europa.eu/qr/466703
- Energy Class
- Class F
- Power Consumption (On mode)
- 27 W
- Features
- Touch-screen
- Panel Type
- A-MVA3
- Aspect Ratio
- 16:9
- Native Resolution
- Full HD (1080p) 1920 x 1080 at 60 Hz
- Pixel Pitch
- 0.3637 mm
- Brightness
- 500 cd/m²
- Contrast Ratio
- 3000:1
- Response Time
- 8 ms
- Colour Support
- 16.7 million colours
- Input Connectors
- HDMI, VGA
- Screen Coating
- 7H Hard Coating
- Voltage
- AC 120/230 V (50/60 Hz)
- Colour
- Black
- Dimensions (WxDxH)
- 73.95 cm x 6.1 cm x 43.4 cm
- Weight
- 10.3 kg
- Compliant Standards
- Plug and Play, DDC-2B, CB, CU, REACH SvHC, IP65 front
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Display Type
- LED-backlit LCD monitor / TFT active matrix
- Energy Label QR Code URL
- Https://eprel.ec.europa.eu/qr/466703
- Energy Class
- Class F
- Diagonal Size
- 32"
- Panel Type
- A-MVA3
- Aspect Ratio
- 16:9
- Native Resolution
- Full HD (1080p) 1920 x 1080 at 60 Hz
- Pixel Pitch
- 0.3637 mm
- Brightness
- 500 cd/m²
- Brightness w/touchscreen
- 460 cd/m²
- Contrast Ratio
- 3000:1
- Colour Support
- 16.7 million colours
- Response Time
- 8 ms
- Vertical Refresh Rate
- 47 - 63 Hz
- Horizontal Refresh Rate
- 30 - 68 kHz
- Horizontal Viewing Angle
- 178
- Vertical Viewing Angle
- 178
- Screen Coating
- 7H Hard Coating
- Backlight Technology
- LED backlight
- OSD Languages
- Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese
- Features
- Cable management cover, HDCP, anti-glare, fanless cooling, landscape mode, portrait mode, 24/7 operating mode, TouchPro Pro-F Projected Capacitive (PCAP) technology, kiosk mode
- Colour
- Black
- Dimensions (WxDxH)
- 73.95 cm x 6.1 cm x 43.4 cm
- Weight
- 10.3 kg
Input
- Type
- Touch-screen - touchscreen
- Movement Detection Technology
- Projected capacitive
Connectivity
- Interfaces
- VGA , HDMI
Mechanical
- VESA Mounting Interface
- 200 x 200 mm
Miscellaneous
- Features
- 92% light transmittance, front IP65 protection
- Cables Included
- 1 x HDMI cable , 1 x USB cable
- Mounting Kit
- Included
- MTBF
- 50,000 hour(s)
- Compliant Standards
- Plug and Play, DDC-2B, CB, CU, REACH SvHC, IP65 front
Power
- Input Voltage
- AC 120/230 V (50/60 Hz)
- Power Consumption (On mode)
- 27 W
- Power Consumption SDR (On mode)
- 27 kWh/1000h
- Power Consumption (Typical)
- 43 Watt
- Power Consumption Stand by
- 0.7 Watt
- Power Consumption (Off Mode)
- 0.3 Watt
Software / System Requirements
- Included Software
- Drivers & Utilities
Dimensions & Weight (Shipping)
- Shipping Width
- 89 cm
- Shipping Depth
- 15.5 cm
- Shipping Height
- 63 cm
- Shipping Weight
- 12.85 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
