Description
The ProLite TF2415MC-B2 uses PCAP touch technology and is built into a bezel with an edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch resistance, making it perfect for kiosk and public high use facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation.
-
Capacitive touch technology
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex glove) and stylus pen. -
Foam seal
A foam seal finish around the monitor ensures seamless integration and optimal dust protection. -
Through glass touch
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants. -
Anti-fingerprint coating
This nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
Specifications
Summary
- Product Description

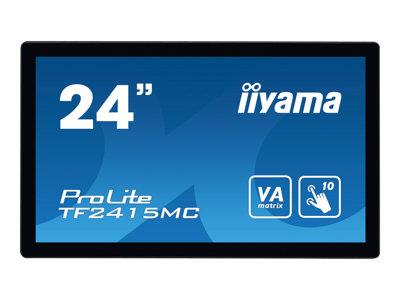

- iiyama ProLite TF2415MC-B2 - LED monitor - Full HD (1080p) - 23.8"
- Device Type
- LED-backlit LCD monitor - 23.8" - touchscreen
- Energy Label QR Code URL
- Https://eprel.ec.europa.eu/qr/378595
- Energy Class
- Class F
- Energy Consumption per Year
- 36 kWh
- Power Consumption (On mode)
- 21.7 W
- Features
- Touch-screen
- Panel Type
- VA
- Aspect Ratio
- 16:9
- Native Resolution
- Full HD (1080p) 1920 x 1080 at 60 Hz
- Pixel Pitch
- 0.2745 mm
- Brightness
- 350 cd/m²
- Contrast Ratio
- 3000:1
- Response Time
- 16 ms
- Colour Support
- 16.7 million colours
- Input Connectors
- HDMI, VGA, DisplayPort
- Screen Coating
- 7H Hard Coating
- Colour
- Black
- Dimensions (WxDxH)
- 34.7 cm x 4.25 cm x 57.5 cm
- Weight
- 5.8 kg
- Compliant Standards
- DDC-2B, VESA DPMS, CB, cULus, TUV Bauart, CU
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Display Type
- LED-backlit LCD monitor / TFT active matrix
- Energy Label QR Code URL
- Https://eprel.ec.europa.eu/qr/378595
- Energy Class
- Class F
- Energy Consumption per Year
- 36 kWh
- Diagonal Size
- 23.8"
- Panel Type
- VA
- Aspect Ratio
- 16:9
- Native Resolution
- Full HD (1080p) 1920 x 1080 at 60 Hz
- Pixel Pitch
- 0.2745 mm
- Brightness
- 350 cd/m²
- Brightness w/touchscreen
- 315 cd/m²
- Contrast Ratio
- 3000:1
- Colour Support
- 16.7 million colours
- Response Time
- 16 ms
- Vertical Refresh Rate
- 56 - 75 Hz
- Horizontal Refresh Rate
- 31.4 - 82 kHz
- Horizontal Viewing Angle
- 178
- Vertical Viewing Angle
- 178
- Screen Coating
- 7H Hard Coating
- Backlight Technology
- LED backlight
- OSD Languages
- English, French, Italian, Spanish, Dutch, Japanese, Chinese
- Features
- Edge-to-edge glass, HID Compliant, scratch-resistant, Projected Capacitive Touch (P-CAP) technology, landscape mode, portrait mode, Face Up mode
- Colour
- Black
- Dimensions (WxDxH)
- 34.7 cm x 4.25 cm x 57.5 cm
- Weight
- 5.8 kg
Input
- Type
- Touch-screen - touchscreen
- Movement Detection Technology
- Projected capacitive
Connectivity
- Interfaces
- VGA , DisplayPort , HDMI , USB , Audio line-out
Mechanical
- VESA Mounting Interface
- 100 x 100 mm
Miscellaneous
- Features
- Fingerprint-resistant coating, IP65 protection
- Included Accessories
- Remote control
- Cables Included
- 1 x HDMI cable - 1.8 m , 1 x DisplayPort cable - 1.8 m , 1 x USB cable - 1.8 m
- Compliant Standards
- DDC-2B, VESA DPMS, CB, cULus, TUV Bauart, CU
Power
- Power Consumption (On mode)
- 21.7 W
- Power Consumption SDR (On mode)
- 21.7 kWh/1000h
- Power Consumption (Typical)
- 25 Watt
Software / System Requirements
- Included Software
- Drivers & Utilities
- OS Required
- Microsoft Windows CE, Linux, Apple MacOS X, Microsoft Windows Vista / XP, Microsoft Windows 7 / 8 / 10
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
