Description
The ProLite TF1015MC (10.1 inch) uses PCAP touch technology and is built into an eye catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1015MC comes equipped with external mounting brackets making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
-
Robust design
The iiyama ProLite TF1015MC-B2 is built to last, featuring IP65 protection and a rugged foam lining, ensuring it can withstand challenging environments and maintain its performance. -
High visibility
With an image brightness of 500 cd/m2 and a contrast ratio of 1300:1, this monitor delivers clear, vivid images even in brightly lit conditions, making it ideal for a variety of applications. -
Versatile touch technology
Equipped with Projected Capacitive Touch (P-CAP) technology and supporting 10-point multi-touch, the monitor offers a responsive and intuitive touch experience for interactive applications. -
Flexible viewing
Whether in landscape or portrait mode, the monitor's flat front, edge-to-edge glass, and wide viewing angles of 170 degrees both horizontally and vertically, provide flexibility and optimal viewing experiences. -
Comprehensive connectivity
Featuring HDMI, VGA, DisplayPort, USB, and audio line-out interfaces, this monitor offers versatile connectivity options to accommodate a wide range of devices and applications.
Specifications
Summary
- Product Description
- iiyama ProLite TF1015MC-B2 - LED monitor - 10.1"
- Device Type
- LED-backlit LCD monitor - 10.1" - touchscreen
- Energy Label QR Code URL
- Https://eprel.ec.europa.eu/qr/378650
- Energy Class
- Class E
- Power Consumption (On mode)
- 8.1 W
- Features
- Touch-screen
- Panel Type
- VA
- Aspect Ratio
- 16:10
- Native Resolution
- 720p 1280 x 800 at 60 Hz
- Pixel Pitch
- 0.1695 mm
- Brightness
- 500 cd/m²
- Contrast Ratio
- 1300:1
- Response Time
- 25 ms
- Input Connectors
- HDMI, VGA, DisplayPort
- Colour
- Black
- Dimensions (WxDxH)
- 26.05 cm x 3.95 cm x 18.35 cm
- Weight
- 1.4 kg
- Compliant Standards
- Plug and Play, DDC-2B, CB, cULus, REACH, TUV Bauart, IP65, SVHC, CU
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Display Type
- LED-backlit LCD monitor / TFT active matrix
- Energy Label QR Code URL
- Https://eprel.ec.europa.eu/qr/378650
- Energy Class
- Class E
- Diagonal Size
- 10.1"
- Panel Type
- VA
- Aspect Ratio
- 16:10
- Native Resolution
- 720p 1280 x 800 at 60 Hz
- Pixel Pitch
- 0.1695 mm
- Brightness
- 500 cd/m²
- Brightness w/touchscreen
- 450 cd/m²
- Contrast Ratio
- 1300:1
- Response Time
- 25 ms
- Vertical Refresh Rate
- 60 Hz
- Horizontal Refresh Rate
- 31.4 - 49.7 kHz
- Horizontal Viewing Angle
- 170
- Vertical Viewing Angle
- 170
- Backlight Technology
- LED backlight
- OSD Languages
- English, German, French, Italian, Spanish, Japanese, Chinese
- Features
- HDCP, edge-to-edge glass, OSD lock, scratch-resistant, anti-fingerprint, Projected Capacitive Touch (P-CAP) technology, landscape mode, portrait mode, Face Up mode
- Colour
- Black
- Dimensions (WxDxH)
- 26.05 cm x 3.95 cm x 18.35 cm
- Weight
- 1.4 kg
Input
- Type
- Touch-screen - touchscreen
- Movement Detection Technology
- Projected capacitive
Connectivity
- Interfaces
- VGA , DisplayPort , HDMI , USB , Audio line-out
Mechanical
- VESA Mounting Interface
- 100 x 100 mm
Miscellaneous
- Features
- Security lock slot (cable lock sold separately), rugged, foam lining, IP65 protection
- Included Accessories
- Remote control, stylus
- Cables Included

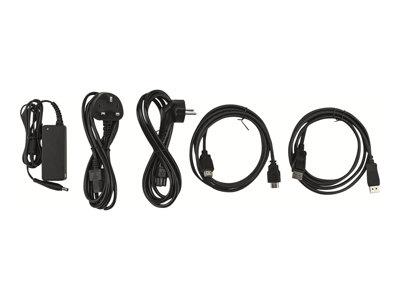

- 1 x HDMI cable - 1.8 m , 1 x DisplayPort cable - 1.8 m , 1 x USB cable - 1.8 m
- Mounting Kit
- Included
- Compliant Standards
- Plug and Play, DDC-2B, CB, cULus, REACH, TUV Bauart, IP65, SVHC, CU
- Security Slot Type
- Kensington security slot
Power
- Power Consumption (On mode)
- 8.1 W
- Power Consumption SDR (On mode)
- 8.1 kWh/1000h
- Power Consumption (Typical)
- 10 Watt
- Power Consumption Stand by
- 1.2 Watt
- Power Consumption (Off Mode)
- 1.2 Watt
Software / System Requirements
- Included Software
- Drivers & Utilities
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
