Description

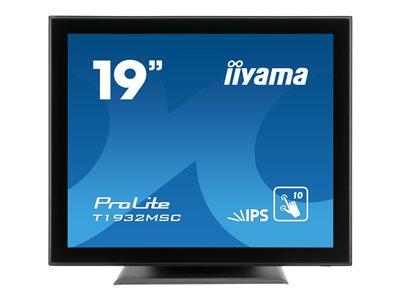

The ProLite T1932MSC-B5AG 19" multitouch screen is based on projective capacitive technology, which guarantees high durability, scratch resistance and perfect picture performance. The IPS matrix guarantees high performance with accurate and consistent color reproduction, and wide viewing angles. Anti-glare coating helps to avoid issues with reflections and external light sources affecting color reproduction, contrast and sharpness. Its touch function remains unaffected even if the glass is scratched. A solid and steady base supports the touch screen with an adjustable stand offering full 90-degree positioning angles. In addition, the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colors.
-
IPS technology
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it. -
Capacitive touch technology
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. -
Scratch resistance
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched. -
Anti-glare coating
The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting color reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.
Specifications
Summary
- Product Description
- iiyama ProLite T1932MSC-B5AG - LED monitor - 19"
- Device Type
- LED-backlit LCD monitor - 19" - touchscreen
- Energy Label QR Code URL
- Https://eprel.ec.europa.eu/qr/369771
- Energy Class
- Class E
- Energy Consumption per Year
- 33 kWh
- Power Consumption (On mode)
- 14.2 W
- Features
- Touch-screen
- Panel Type
- IPS
- Aspect Ratio
- 5:4
- Native Resolution
- 1280 x 1024 at 75 Hz
- Pixel Pitch
- 0.2928 mm
- Brightness
- 250 cd/m²
- Contrast Ratio
- 1000:1
- Response Time
- 14 ms
- Colour Support
- 16.7 million colours
- Input Connectors
- HDMI, VGA, DisplayPort
- Display Position Adjustments
- Tilt
- Screen Coating
- Anti-glare
- Voltage
- AC 120/230 V (50/60 Hz)
- Colour
- Black
- Dimensions (WxDxH)
- 43.2 cm x 21.9 cm x 39.1 cm
- Weight
- 6.9 kg
- Compliant Standards
- VCCI, DDC-2B, CB, cULus, IP54, TUV Bauart, CU
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Display Type
- LED-backlit LCD monitor / TFT active matrix
- Energy Label QR Code URL
- Https://eprel.ec.europa.eu/qr/369771
- Energy Class
- Class E
- Energy Consumption per Year
- 33 kWh
- Diagonal Size
- 19"
- Panel Type
- IPS
- Aspect Ratio
- 5:4
- Native Resolution
- 1280 x 1024 at 75 Hz
- Pixel Pitch
- 0.2928 mm
- Brightness
- 250 cd/m²
- Brightness w/touchscreen
- 215 cd/m²
- Contrast Ratio
- 1000:1
- Colour Support
- 16.7 million colours
- Response Time
- 14 ms
- Vertical Refresh Rate
- 50 - 75 Hz
- Horizontal Refresh Rate
- 31 - 80 KHz
- Horizontal Viewing Angle
- +89 / -89
- Vertical Viewing Angle
- +89 / -89
- Screen Coating
- Anti-glare
- Backlight Technology
- LED backlight
- OSD Languages
- English, German, French, Italian, Spanish, Japanese, Chinese
- Features
- Cable management cover, HDCP, edge-to-edge glass, scratch-resistant
- Colour
- Black
- Dimensions (WxDxH)
- 43.2 cm x 21.9 cm x 39.1 cm
- Weight
- 6.9 kg
Audio
- Type
- Speakers - stereo
- Output Power / Channel
- 1 Watt
Input
- Type
- Touch-screen - touchscreen
- Movement Detection Technology
- Projected capacitive
Connectivity
- Interfaces
- VGA , HDMI , DisplayPort , Audio line-in , USB
Mechanical
- Display Position Adjustments
- Tilt
- Tilt Angle
- -5/+90
- VESA Mounting Interface
- 100 x 100 mm
Miscellaneous
- Features
- Security lock slot (cable lock sold separately), IP54 protection, 85% light transmittance
- Cables Included
- 1 x DisplayPort cable , 1 x HDMI cable , 1 x audio cable , 1 x USB cable
- Compliant Standards
- VCCI, DDC-2B, CB, cULus, IP54, TUV Bauart, CU
- Security Slot Type
- Kensington security slot
Power
- Input Voltage
- AC 120/230 V (50/60 Hz)
- Power Consumption (On mode)
- 14.2 W
- Power Consumption SDR (On mode)
- 14.2 kWh/1000h
- Power Consumption (Typical)
- 25 Watt
- Power Consumption (Off Mode)
- 2 Watt
Software / System Requirements
- Included Software
- Drivers & Utilities
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
