Description

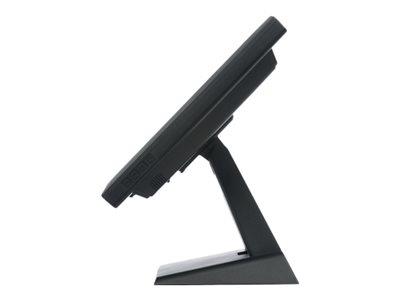

The ProLite T1931SAW-B5 uses highly accurate Surface Acoustic Wave touch technology (SAW) with a pure-glass scratch resistive front, offering superior image clarity and screen durability. The screen can be touched with a soft stylus, finger or gloved hand making it suitable for a number of applications, and the solid but flexible stand ensures resilience in the most demanding environments. Menu buttons are located on the side of the screen which can be locked to prevent tampering, and include a handy function to deactivate the touchscreen for cleaning. The iiyama Prolite T1931SAW-B5 touchscreen is ideal for a wide range of applications including Point of Sale, kiosks, hospitality and entertainment, control rooms, education, training and many others.
-
Surface Acoustic Wave touch technology
Surface acoustic wave uses ultrasonic waves that pass over the panel. When the panel is touched, a portion of the wave is absorbed and a touch event is registered. Because the screen is covered with a glass layer this technology offers great picture performance (high contrast and color accuracy). It is also scratch-resistant technology and therefore ideal for use in public places or schools. Even if the screen is scratched, the touch function remains unaffected. -
Scratch resistance
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched. -
IP54 rated
The IP code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water. -
Integrated speakers
This LED monitor is equipped with two high-quality stereo speakers.
Specifications
Summary
- Product Description
- iiyama ProLite T1931SAW-B5 - LED monitor - 19"
- Device Type
- LED-backlit LCD monitor - 19" - touchscreen
- Energy Label QR Code URL
- Https://eprel.ec.europa.eu/qr/376494
- Energy Class
- Class E
- Power Consumption (On mode)
- 14.7 W
- Features
- Touch-screen
- Panel Type
- TN
- Aspect Ratio
- 5:4
- Native Resolution
- 1280 x 1024
- Pixel Pitch
- 0.294 mm
- Brightness
- 250 cd/m²
- Contrast Ratio
- 1000:1
- Response Time
- 5 ms
- Colour Support
- 16.7 million colours
- Input Connectors
- HDMI, VGA, DisplayPort
- Display Position Adjustments
- Tilt
- Voltage
- AC 120/230 V (50/60 Hz)
- Colour
- Matte black
- Dimensions (WxDxH) - with stand
- 43.2 cm x 21.8 cm x 39 cm
- Weight
- 6.6 kg
- Compliant Standards
- Plug and Play, VCCI, GOST, DDC-2B, CB, IP54, TUV Bauart
Detailed Specification
General
- Display Type
- LED-backlit LCD monitor / TFT active matrix
- Energy Label QR Code URL
- Https://eprel.ec.europa.eu/qr/376494
- Energy Class
- Class E
- Diagonal Size
- 19"
- Panel Type
- TN
- Aspect Ratio
- 5:4
- Native Resolution
- 1280 x 1024
- Pixel Pitch
- 0.294 mm
- Brightness
- 250 cd/m²
- Brightness w/touchscreen
- 230 cd/m²
- Contrast Ratio
- 1000:1
- Colour Support
- 16.7 million colours
- Response Time
- 5 ms
- Vertical Refresh Rate
- 50 - 75 Hz
- Horizontal Refresh Rate
- 31 - 80 KHz
- Horizontal Viewing Angle
- +85 / -85
- Vertical Viewing Angle
- +80 / -80
- Backlight Technology
- LED backlight
- OSD Languages
- English, German, French, Italian, Spanish, Japanese, Chinese
- Features
- Cable management cover, HDCP, OSD lock, scratch-resistant
- Colour
- Matte black
- Dimensions (WxDxH)
- 43.2 cm x 21.8 cm x 39 cm - with stand
- Weight
- 6.6 kg
Audio
- Type
- Speakers - stereo
- Output Power / Channel
- 1 Watt
Input
- Type
- Touch-screen - touchscreen
- Movement Detection Technology
- Surface acoustic wave
Connectivity
- Interfaces
- VGA , DisplayPort , HDMI , USB , Audio line-in
Mechanical
- Display Position Adjustments
- Tilt
- Tilt Angle
- -5/+90
- VESA Mounting Interface
- 100 x 100 mm
Miscellaneous
- Features
- Security lock slot (cable lock sold separately), IP54 protection
- Cables Included
- 1 x USB cable , 1 x HDMI cable , 1 x audio cable , 1 x DisplayPort cable
- Compliant Standards
- Plug and Play, VCCI, GOST, DDC-2B, CB, IP54, TUV Bauart
- Security Slot Type
- Kensington security slot
Power
- Input Voltage
- AC 120/230 V (50/60 Hz)
- Power Consumption (On mode)
- 14.7 W
- Power Consumption SDR (On mode)
- 14.7 kWh/1000h
- Power Consumption (Typical)
- 20 Watt
- Power Consumption Stand by
- 3 Watt
Software / System Requirements
- Included Software
- Drivers & Utilities
