Description

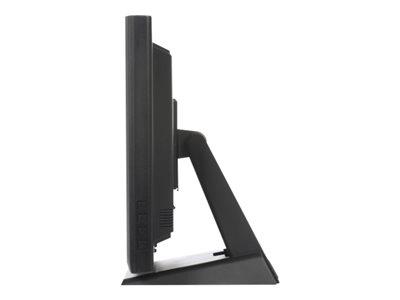

The ProLite T1731SAW-B5 offers superior image clarity and screen durability. The screen can be touched with a soft stylus, finger or gloved hand making it suitable for a number of applications, and the solid but flexible stand ensures resilience in demanding environments. Menu buttons are located on the side of the screen which can be locked to prevent tampering, and include a handy function to deactivate the touchscreen for cleaning.
-
Efficient power usage
With a power consumption of only 20 W during operation and a mere 3 W on standby, this monitor is designed for energy efficiency, making it an eco-friendly choice for users concerned about their energy footprint. -
Versatile connectivity
Equipped with HDMI, VGA, and DisplayPort interfaces, this monitor offers flexible connectivity options, allowing it to easily integrate into any workspace or home setup. -
Optimal viewing experience
Featuring a 17-inch display with a 1280 x 1024 native resolution and WLED backlight technology, this monitor delivers crisp, clear images. The matte screen coating reduces glare, enhancing visibility in various lighting conditions. -
Responsive touch technology
The surface acoustic wave touchscreen technology provides a responsive and intuitive interface for users, making it ideal for interactive applications and enhancing productivity. -
Durable and secure
Designed with an IP54 rating for dust and water resistance, along with a Kensington security slot for anti-theft protection, this monitor is built to withstand the rigors of daily use while ensuring data security.
Specifications
Summary
- Product Description
- iiyama ProLite T1731SAW-B5 - LED monitor - 17"
- Device Type
- LED-backlit LCD monitor - 17" - touchscreen
- Energy Label QR Code URL
- Https://eprel.ec.europa.eu/qr/374978
- Energy Class
- Class E
- Energy Consumption per Year
- 22 kWh
- Power Consumption (On mode)
- 12.3 W
- Features
- Touch-screen
- Panel Type
- TN
- Aspect Ratio
- 5:4
- Native Resolution
- 1280 x 1024 at 75 Hz
- Pixel Pitch
- 0.264 mm
- Brightness
- 250 cd/m²
- Contrast Ratio
- 1000:1
- Response Time
- 5 ms
- Colour Support
- 16.7 million colours
- Input Connectors
- HDMI, VGA, DisplayPort
- Display Position Adjustments
- Tilt
- Screen Coating
- Matte
- Voltage
- AC 120/230 V (50/60 Hz)
- Colour
- Black
- Dimensions (WxDxH)
- 38.7 cm x 20.1 cm x 34.2 cm
- Weight
- 5.8 kg
- Compliant Standards
- Plug and Play, VCCI, GOST, DDC-2B, IP54, TUV Bauart
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Display Type
- LED-backlit LCD monitor / TFT active matrix
- Energy Label QR Code URL
- Https://eprel.ec.europa.eu/qr/374978
- Energy Class
- Class E
- Energy Consumption per Year
- 22 kWh
- Diagonal Size
- 17"
- Panel Type
- TN
- Aspect Ratio
- 5:4
- Native Resolution
- 1280 x 1024 at 75 Hz
- Pixel Pitch
- 0.264 mm
- Brightness
- 250 cd/m²
- Brightness w/touchscreen
- 230 cd/m²
- Contrast Ratio
- 1000:1
- Colour Support
- 16.7 million colours
- Response Time
- 5 ms
- Vertical Refresh Rate
- 50 - 75 Hz
- Horizontal Refresh Rate
- 31 - 80 KHz
- Horizontal Viewing Angle
- +85 / -80
- Vertical Viewing Angle
- +85 / -80
- Screen Coating
- Matte
- Backlight Technology
- WLED
- OSD Languages
- English, German, French, Italian, Spanish, Japanese, Chinese
- Features
- Cable management cover, HDCP
- Colour
- Black
- Dimensions (WxDxH)
- 38.7 cm x 20.1 cm x 34.2 cm
- Weight
- 5.8 kg
Audio
- Type
- Speakers - stereo
- Output Power / Channel
- 1 Watt
Input
- Type
- Touch-screen - touchscreen
- Movement Detection Technology
- Surface acoustic wave
Connectivity
- Interfaces
- HDMI , VGA , DisplayPort , USB
Mechanical
- Display Position Adjustments
- Tilt
- Tilt Angle
- -5/+90
- VESA Mounting Interface
- 100 x 100 mm
Miscellaneous
- Features
- Security lock slot (cable lock sold separately), 92% light transmittance
- Cables Included
- 1 x USB cable , 1 x HDMI cable , 1 x audio cable , 1 x DisplayPort cable
- Compliant Standards
- Plug and Play, VCCI, GOST, DDC-2B, IP54, TUV Bauart
- Security Slot Type
- Kensington security slot
Power
- Input Voltage
- AC 120/230 V (50/60 Hz)
- Power Consumption (On mode)
- 12.3 W
- Power Consumption SDR (On mode)
- 12.3 kWh/1000h
- Power Consumption (Typical)
- 20 Watt
- Power Consumption Stand by
- 3 Watt
Software / System Requirements
- Included Software
- Drivers & Utilities
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
