Description
Building on HPE ProLiant as the intelligent foundation for hybrid cloud, the HPE ProLiant DL325 Gen10 Plus server offers a powerful processor. It delivers increased value to clients through intelligent automation, security, and optimization. With more cores, increased memory bandwidth, enhanced storage, and PCIe Gen4 capabilities, the HPE ProLiant DL325 offers two-socket performance in a one-socket 1U rack profile.
Specifications
Summary
- Product Description

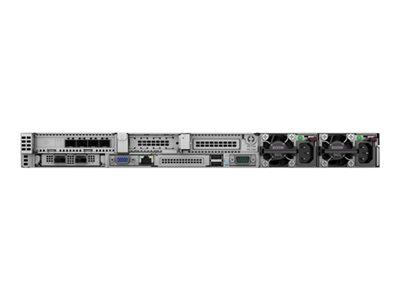

- HPE ProLiant DL325 Gen10 Plus - rack-mountable - EPYC 7302P 3 GHz - 32 GB - no HDD
- Type
- Server - rack-mountable
- Height (Rack Units)
- 1U
- Localisation
- Region: Worldwide
- Server Scalability
- 1-way
- Processor
- 1 x AMD EPYC 7302P / 3 GHz (, up to 3.3 GHz, (16-core)
- Processor Socket
- Socket SP3
- Cache Memory
- 128 MB L3 Cache
- Cache Per Processor
- 128 MB
- RAM
- 32 GB (installed) / 1 TB (max) - DDR4 SDRAM
- Storage Controller
- RAID (SATA 6Gb/s / SAS 12Gb/s) - PCIe 3.0 x8 (HPE Smart Array P408i-a)
- Server Storage Bays
- Hot-swap 2.5"
- Hard Drive
- No HDD
- Optical Storage
- No optical drive
- Video Memory
- 16 MB
- Networking
- GigE
- Power
- AC 120/230 V (50/60 Hz)
- Power Redundancy
- Optional
- Dimensions (WxDxH)
- 43.46 cm x 82.62 cm x 4.28 cm
- Weight
- 17 kg
- Environmental Standards
- ENERGY STAR Qualified
- Manufacturer Warranty
- Limited warranty - parts and labour - 3 years - on-site
Detailed Specification
General
- Type
- Server
- Product Form Factor
- Rack-mountable - 1U
- Server Scalability
- 1-way
- Hot-Swap Bays Qty
- 8
- Localisation
- Region: Worldwide
Processor / Chipset
- CPU
- AMD EPYC 7302P
- Clock Speed
- 3 GHz
- Max Turbo Speed
- 3.3 GHz
- Number of Cores
- 16-core
- CPU Qty
- 1
- Max CPU Qty
- 1
- CPU Upgradability
- Upgradable
- CPU Socket
- Socket SP3
Cache Memory
- Installed Size
- L3 Cache - 128 MB
- Cache Per Processor
- 128 MB
RAM
- Installed Size
- 32 GB / 1 TB (max)
- Technology
- DDR4 SDRAM
- Rated Memory Speed
- 3200 MHz
- Form Factor
- DIMM 288-pin
- Slots
- 16 (Total) / 14 (empty)
- Features
- Registered, HPE SmartMemory
- Configuration Features
- 2 x 16 GB
- RAM Supported
- PC4-20800 - 2 TB Load-Reduced , PC4-20800 - 1 TB registered
Hard Drive
- Type
- No HDD
Storage Controller
- Type
- 1 x RAID - PCIe 3.0 x8
- Controller Interface Type
- SATA 6Gb/s / SAS 12Gb/s
- Storage Controller Name
- HPE Smart Array P408i-a
- Channel Qty
- 8
Optical Storage
- Type
- No optical drive
Monitor
- Monitor Type
- None.
Graphics Controller
- Video Memory
- 16 MB
- Video Interfaces
- VGA
Networking
- Ethernet Ports
- 4 x Gigabit Ethernet
- Ethernet Controller
- Intel I350-T4
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management Controller
- Integrated Lights-Out 5
- Features
- Wake on LAN (WoL), PXE support
Expansion / Connectivity
- Bays
- 8 (total) / 8 (free) x hot-swap 2.5" SFF
- Slots
- 1 (total) / 1 (free) x FlexibleLOM , 1 (total) / 1 (free) x PCIe 3.0 x16 , 1 (total) / 1 (free) x PCIe 3.0 x8 , 1 (total) / 1 (free) x microSD Card (internal)
- Interfaces
- 1 x HPE iLO (1 in front) , 5 x USB 3.0 , 4 x LAN (Gigabit Ethernet) , 1 x HPE iLO , 1 x VGA
Miscellaneous
- Included Accessories
- HPE Easy Install Rails, 7 x standard fans
- Compliant Standards
- AES, FIPS 140-2, Triple DES, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1
Power
- Device Type
- Power supply - hot-plug
- Power Redundancy
- Optional
- Power Redundancy Scheme
- 1+1 (with optional power supply)
- Installed Qty
- 1
- Max Supported Qty
- 2
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Provided
- 500 Watt
Sustainability Information
- ENERGY STAR Certified
- Yes
- ENERGY STAR Version
- 3.0
Manufacturer Warranty
- Service & Support
- Limited warranty - parts and labour - 3 years - on-site
Dimensions & Weight
- Width
- 43.46 cm
- Depth
- 82.62 cm
- Height
- 4.28 cm
- Weight
- 17 kg
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 35 °C
- Humidity Range Operating
- 8 - 90% (non-condensing)
