HPE ProLiant DL20 Gen10 Intel Xeon E-2124 8GB

Review this product
Quicklinx: F7MWWS00 Mfr#: P08335-B21
Case Style: Rack-mountable
Processor Type: Xeon
Hard Disk Capacity: 0GB
Processor Speed: 3.3GHz
Installed Memory: 8GB
  • Xeon
Ordered upon request
£506.53 ex VAT
£607.83 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.

Description

The dense and compact HPE ProLiant DL20 server provides a unique blend of enterprise class capabilities & value. It offers outstanding configuration flexibility to cater to a wide variety of business requirements.

Specifications

Summary

Product Description

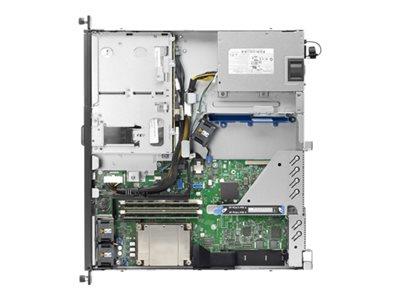

HPE ProLiant DL20 Gen10 Entry - rack-mountable - Xeon E-2124 3.3 GHz - 8 GB
Type
Server - rack-mountable
Height (Rack Units)
1U
Localisation
Region: Worldwide
Server Scalability
1-way
Processor
1 x Intel Xeon E-2124 / 3.3 GHz (4.3 GHz) (Quad-Core)
Processor Socket
LGA1151 Socket
Cache Memory
8 MB
Cache Per Processor
8 MB
RAM
8 GB (installed) / 64 GB (max) - DDR4 SDRAM - ECC - PC4-21333
Storage Controller
RAID (SATA 6Gb/s) (HPE Smart Array S100i SR Software RAID)
Hard Drive
No HDD
Optical Storage
No optical drive
Graphics Controller
Matrox G200
Networking
GigE
Power
AC 120/230 V (50/60 Hz)
Dimensions (WxDxH)
43.46 cm x 38.22 cm x 4.32 cm
Weight
7.88 kg
Environmental Standards
ENERGY STAR Qualified
Manufacturer Warranty
Limited warranty - parts and labour - 3 years - on-site - response time: next business day


Detailed Specification

General

Type
Server
Product Form Factor
Rack-mountable - 1U
Server Scalability
1-way
Internal Bays Qty
2
Localisation
Region: Worldwide

Processor / Chipset

CPU
Intel Xeon E-2124 / 3.3 GHz
Max Turbo Speed
4.3 GHz
Number of Cores
Quad-Core
CPU Qty
1
Max CPU Qty
1
CPU Upgradability
Upgradable
CPU Socket
LGA1151 Socket

Cache Memory

Installed Size
8 MB
Cache Per Processor
8 MB

RAM

Installed Size
8 GB / 64 GB (max)
Technology
DDR4 SDRAM - ECC
Effective Memory Speed
2666 MHz
Rated Memory Speed
2666 MHz
Memory Specification Compliance
PC4-21333
Form Factor
DIMM 288-pin
Slots
4 (Total) / 3 (empty)
Features
Unbuffered
Configuration Features
1 x 8 GB

Hard Drive

Type
No HDD

Storage Controller

Type
1 x RAID
Controller Interface Type
SATA 6Gb/s
Storage Controller Name
HPE Smart Array S100i SR Software RAID
Channel Qty
4
RAID Level
RAID 0, RAID 1, RAID 5, RAID 10

Optical Storage

Type
No optical drive

Monitor

Monitor Type
None.

Graphics Controller

Graphics Processor
Matrox G200
Video Interfaces
VGA

Networking

Interface (Bus) Type
PCI Express x2
Ethernet Ports
2 x Gigabit Ethernet
Ethernet Controller
HPE 332i
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller
Integrated Lights-Out 4
Features
Wake on LAN (WoL), PXE support
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion / Connectivity

Bays
1 (total) / 1 (free) x external 5.25" , 2 (total) / 2 (free) x internal 3.5" LFF
Slots
1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height (x16 mode) , 1 (total) / 1 (free) x PCIe 3.0 x8 - low-profile (x8 mode)
Interfaces
1 x VGA , 1 x LAN (Gigabit Ethernet) , 1 x LAN (Gigabit Ethernet) / HP iLO , 5 x USB 3.0 (2 front, 2 rear, 1 internal)

Miscellaneous

Included Accessories
HPE Short Friction Rail kit
Compliant Standards
AES, FIPS 140-2, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, ACPI 6.1, Redfish API, UEFI

Power

Device Type
Power supply
Installed Qty
1
Nominal Voltage
AC 120/230 V (50/60 Hz)
Power Provided
290 Watt
80 PLUS Certification
80 PLUS Silver
Efficiency
92%

Environmental Standards

ENERGY STAR Certified
Yes

Manufacturer Warranty

Service & Support
Limited warranty - parts and labour - 3 years - on-site - response time: next business day

Dimensions & Weight

Width
43.46 cm
Depth
38.22 cm
Height
4.32 cm
Weight
7.88 kg

Environmental Parameters

Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
Humidity Range Operating
8 - 90% (non-condensing)
Sound Emission
28 dBA
