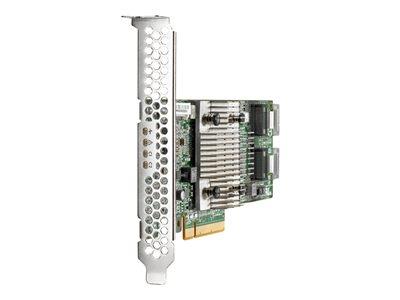

HPE H240 Smart Host Bus Adapter - storage controller - SATA 6Gb/s / SAS 12Gb/s - PCIe 3.0 x8

HPE H240 Smart Host Bus Adapter - storage controller - SATA 6Gb/s / SAS 12Gb/s - PCIe 3.0 x8

Review this product
Quicklinx: BRK0WS00 Mfr#: 726907-B21
Type: Storage controller
Compatibility: PC
Ordered upon request
£188.87 ex VAT
£226.64 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.

Description

Do you need a cost effective controller that provides fast access to the data on the internal server drives? The HP H240 Smart Host Bus Adapter comes in a low profile, PCIe3 x8 standup form factor that provides a reliable, high performing SAS connectivity to the data in the server internal drives. Featuring eight internal physical links, it delivers 12 Gb/s SAS performance. The H240 Smart Host Bus Adapter provides flexibility to run as an HBA mode or simple RAID mode. When operating in simple RAID mode, it provides RAID 0, RAID 1, and RAID 5 with optional HP Secure Encryption capabilities. Unlike the HP Smart Array Controllers, the H240 does not offer any acceleration or support cache modules.

  • Cost-Effective SAS Storage Connectivity

    The HPE H240 Smart Host Bus Adapter comes in a low-profile, PCIe3 x8 standup form factor that provides a basic building block for simple RAID storage solution for HPE Gen9 Servers.Delivering up to 12 Gb/s SAS connectivity for internal hard drives it provides increased scalability, basic data protection, and flexibility for storage connectivity.You get optimized performance and uptime for your entry-level storage requirements.This HBA supports SAS, SATA, Solid State Drives (SSDs) and internal tape drives for increased flexibility.
  • Efficient and Simple Configuration, Deployment and Management

    The HPE H240 Host Bus Adapter and the attached internal storage devices are configured, deployed and managed by the easy-to-use HPE Smart Storage Administrator software which is included in the intelligent provisioning capabilities of the server.Delivers proactive service warnings and analysis based on Solid State Drive (SSD) endurance reports from the HPE SmartSSD Wear Gauge utility.Simplify the management of the attached storage pool with HPE Smart Storage Administrator.

Specifications

Summary

Product Description
HPE H240 Smart Host Bus Adapter - storage controller - SATA 6Gb/s / SAS 12Gb/s - PCIe 3.0 x8
Device Type
Storage controller - plug-in card - low profile
Bus Type
PCIe 3.0 x8
Interface
SATA 6Gb/s / SAS 12Gb/s
Data Transfer Rate
12 Gbit/s
Supported Devices
Hard drive, solid state drive
Channel Qty
8
RAID Level
RAID 0, RAID 1, RAID 5
System Requirements
SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Ubuntu 12.04, Microsoft Windows Server 2012, Oracle Solaris 11.1, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Microsoft Windows Server 2012 with Hyper-V, Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 6 update 5
Dimensions (WxDxH)
1.6 cm x 16.8 cm x 6.86 cm
Manufacturer Warranty
1-year warranty
Designed For
Apollo 4510 Gen9, 4530; ProLiant DL160 Gen9, DL180 Gen9, DL20 Gen9, DL360 Gen9, DL380 Gen9, DL560 Gen9, DL80 Gen9, ML30 Gen9, ML350 Gen9, XL170r Gen9, XL230a Gen9, XL270d Gen9


Detailed Specification

General

Device Type
Storage controller - plug-in card - low profile
Host Bus
PCIe 3.0 x8

Storage Controller

Interface
SATA 6Gb/s / SAS 12Gb/s
Data Transfer Rate
12 Gbit/s
Supported Devices
Hard drive, solid state drive
Channel Qty
8
RAID Level
RAID 0, RAID 1, RAID 5

Expansion / Connectivity

Interfaces
2 x SATA 6Gb/s / SAS 12Gb/s (internal)

Miscellaneous

Included Accessories
Low-profile bracket
Compliant Standards
WEEE

Software / System Requirements

OS Required
SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Ubuntu 12.04, Microsoft Windows Server 2012, Oracle Solaris 11.1, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Microsoft Windows Server 2012 with Hyper-V, Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 6 update 5

Manufacturer Warranty

Service & Support
Limited warranty - parts - 1 year

Dimensions & Weight

Width
1.6 cm
Depth
16.8 cm
Height
6.86 cm

Compatibility Information

Designed For
HPE Apollo 4510 Gen9, 4530 , HPE ProLiant DL160 Gen9, DL160 Gen9 Base, DL160 Gen9 Entry, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen9 Solution, DL360 Gen9, DL360 Gen9 Base, DL360 Gen9 CMS, DL360 Gen9 Entry, DL360 Gen9 Performance, DL380 Gen9, DL380 Gen9 Base, DL380 Gen9 Entry, DL380 Gen9 High Performance, DL380 Gen9 Performance, DL560 Gen9 Entry, DL80 Gen9, ML30 Gen9 Entry, ML30 Gen9 Solution, ML350 Gen9, ML350 Gen9 Base, ML350 Gen9 Entry, ML350 Gen9 Performance, XL170r Gen9, XL230a Gen9 Compute Tray, XL230a Gen9 Compute Tray (12G), XL230a Gen9 Compute Tray (6G), XL230a Gen9 NHP Compute Tray (12G), XL270d Gen9
