Description

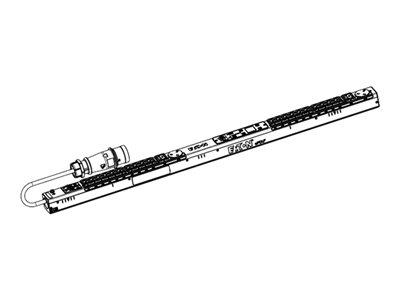

New ePDU G3 Metered Input models feature best in class technologies, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.
-
Efficient power distribution
The Eaton ePDU G3 Metered Input power distribution unit is designed for efficient power management in a rack-mountable form factor, ensuring reliable distribution of power to power distribution devices. -
Rack-mountable design
With its rack-mountable form factor, this power distribution unit seamlessly integrates into existing server and network racks, optimizing space and improving cable management for a streamlined setup.
Specifications
Summary
- Product Description
- Eaton ePDU G3 Metered Input - power distribution unit - 7 kW
- Device Type
- Power distribution unit - rack-mountable
- Rack Size
- 26U
- Localisation
- France
- Input Voltage
- AC 230 V
- Output Voltage
- AC 200-240 V
- Power Capacity
- 7 kW
- Input Connectors
- 1 x power IEC 60309 32A
- Output connectors
- 20 x power IEC 60320 C13 , 2 x power IEC 60320 C19 , 2 x power CEE 7/5
- Networking
- Ethernet 10/100, RS-232
- Colour
- Black
- Dimensions (WxDxH)
- 5.2 cm x 5.3 cm x 115.4 cm
Detailed Specification
General
- Device Type
- Power distribution unit - rack-mountable
- Height (Rack Units)
- 26U
- Colour
- Black
- Localisation
- France
Power Device
- Input Voltage
- AC 230 V
- Input Voltage Range
- AC 200 - 240 V
- Frequency Provided
- 50/60 Hz
- Frequency Required
- 50/60 Hz
- Input Connectors
- 1 x power IEC 60309 32A
- Power Output Connectors Details
- 20 x power IEC 60320 C13 , 2 x power IEC 60320 C19 , 2 x power CEE 7/5
- Output Voltage
- AC 200-240 V 50/60 Hz
- Max Electric Current
- 32 A
- Power Capacity
- 7 kW
- Circuit Protection
- Circuit breaker
Networking
- Remote Management Interface
- Ethernet 10/100, RS-232
Expansion / Connectivity
- Interfaces
- 1 x management (Ethernet) - RJ-45 , 1 x management (RS-232) - 9 pin D-Sub (DB-9) , 1 x cascading - RJ-45
Miscellaneous
- Cables Included
- Power cable - integrated - 3 m
- Features
- Low-profile, LCD display, voltage monitoring, current meter, vertical orientation
- Compliant Standards
- CB
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 60 °C
Dimensions & Weight
- Width
- 5.2 cm
- Depth
- 5.3 cm
- Height
- 115.4 cm
