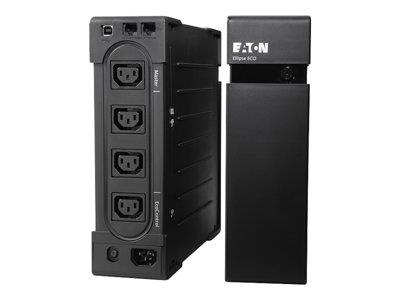

Eaton Ellipse ECO 650 IEC UPS

Review this product
Quicklinx: 7T2TWS00 Mfr#: EL650IEC
Type: UPS
Power Rating: 400Watt
Less than 10 in stock
£116.09 ex VAT
£139.30 inc VAT
Qty
Standard delivery Delivered within 3 working days

Description

As well as providing a power supply backed up by a battery to keep equipment operating during a power failure, the Ellipse Eco also provides effective protection against damaging surges. The Eco Control function automatically disables peripherals when the master device is turned off in order to save up 25 % more energy compared to previous generation of UPS. This unit can either be placed horizontally, 19 inch rack mounted or wall mounted. The Ellipse Eco also includes the Eaton Intelligent Power Manager software. It is an ideal protection for all business computers.

Specifications

Summary

Product Description
Eaton Ellipse ECO 650 IEC - UPS - 400 Watt - 650 VA
Device Type
UPS - rack-mountable / external
Rack Size
19" - 2U
Weight
3.6 kg
Input Voltage
AC 230 V
Output Voltage
AC 220/230/240 V
Power Capacity
400 Watt / 650 VA
Input Connectors
1 x power
Output connectors
3 x power IEC 60320 (UPS and surge) , 1 x power IEC 60320 (surge)
Battery
Lead Acid
Run Time (Up To)
9 min at half load
Dimensions (WxDxH)
8.1 cm x 23.5 cm x 26.3 cm
Manufacturer Warranty
2-year warranty


Detailed Specification

General

Device Type
UPS - rack-mountable / external
Height (Rack Units)
2U
Rack Size
19"

Power Device

UPS Technology
Off-line
Input Voltage
AC 230 V
Input Voltage Range
AC 184 - 264 V
Input Voltage Range (Adjustable)
AC 161 - 284 V
Frequency Provided
50/60 Hz
Frequency Required
50/60 Hz
Input Connectors
1 x power
Power Output Connectors Details
3 x power IEC 60320 (UPS and surge) , 1 x power IEC 60320 (surge)
Output Voltage
AC 220/230/240 V 50/60 Hz
Power Capacity
400 Watt / 650 VA
Dataline Surge Protection
Network/phone line - RJ-45/RJ-11
Surge Suppression
Yes
Circuit Protection
Circuit breaker

Battery

Technology
Lead Acid
Run Time (Up To)
9 min at half load , 6 min at 70% load

Miscellaneous

Rack Mounting Kit
Optional
Features
Wall mountable, audible alarm, LED indicators, deep discharge protection, cold-start function
Compliant Standards
CB, IEC 62040-1-1, IEC 62040-2, IEC 60950-1, IEC 61643-1

Manufacturer Warranty

Service & Support
Limited warranty - 2 years

Dimensions & Weight

Width
8.1 cm
Depth
23.5 cm
Height
26.3 cm
Weight
3.6 kg
