Description

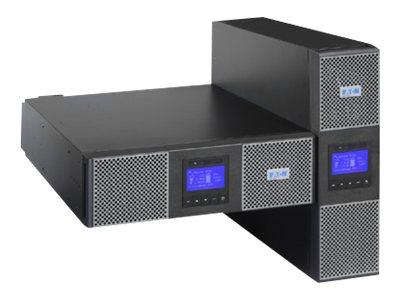

The Eaton 9PX UPS provides energy efficient power protection for small & medium Datacenters, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
-
Graphical LCD display
It provides clear information on the UPS's status and measurements on a single screen which tilts 450 for ease-of-viewing. -
Availability and flexibility
The internal bypass allows service continuity in case of internal fault, a maintenance bypass is also available for easy replacement of the UPS without powering down critical systems. -
Paralleling functionality
Paralleling functionality to achieve twice the power of unitary products using Hot Sync technology! -
Load segment control
It enables prioritized shut downs of nonessential equipment to maximize battery runtime for critical devices.
Specifications
Summary
- Product Description
- Eaton 9PX 9PX11KIRTNBP - UPS - 10000 Watt - 11000 VA
- Device Type
- UPS - Power Factor Correction (PFC) - rack-mountable / external
- Rack Size
- 19" - 6U
- Weight
- 86 kg
- Input Voltage
- AC 200/208/220/230/240/250 V
- Output Voltage
- AC 200/208/220/230/240/250 V ± 1%
- Power Capacity
- 10000 Watt / 11000 VA
- Input Connectors
- Hardwire
- Output connectors
- 4 x power IEC 60320 C19 , 1 x hardwire
- Battery
- Expandable
- Battery Form Factor
- Plug-in module
- Run Time (Up To)
- 3 min at full load
- Networking
- Ethernet 10/100, RS-232, USB
- Remote Management Protocol
- SNMP 1, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI
- System Requirements
- Linux, Apple MacOS X, Microsoft Windows Vista / XP / 7, Microsoft Windows Server 2008
- Dimensions (WxDxH)
- 44 cm x 70 cm x 26 cm
- Environmental Standards
- ENERGY STAR
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- UPS - Power Factor Correction (PFC) - rack-mountable / external
- Battery Enclosure Type
- Plug-in module
- Height (Rack Units)
- 6U
- Rack Size
- 19"
Power Device
- UPS Technology
- On-line
- Supported Power Modules Qty
- 12
- Input Voltage
- AC 200/208/220/230/240/250 V
- Input Voltage Range
- AC 176 - 276 V
- Frequency Provided
- 50/60 Hz
- Frequency Required
- 40 - 70 Hz
- Input Connectors
- Hardwire
- Power Output Connectors Details
- 4 x power IEC 60320 C19 , 1 x hardwire
- Output Voltage
- AC 200/208/220/230/240/250 V ± 1% - 50/60 Hz
- Power Capacity
- 10000 Watt / 11000 VA
- Surge Suppression
- Yes
Battery
- Type
- Expandable
- Run Time (Up To)
- 13 min at half load , 9 min at 70% load
Networking
- Remote Management Interface
- Ethernet 10/100, RS-232, USB
- Remote Management Protocol
- SNMP 1, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI
Expansion / Connectivity
- Interfaces
- 1 x RS-232 - 9 pin D-Sub (DB-9) , 1 x USB - 4 pin USB Type B , 1 x EPO (emergency power off) , 1 x management (Ethernet) - RJ-45
- Expansion Slots
- 1 (total) / 0 (free) x Expansion Slot
Miscellaneous
- Rack Mounting Kit
- Included
- Features
- Advance Battery Management (ABM), LCD display, built-in maintenance bypass, LED indicators, deep discharge protection, automatic self-test
- Compliant Standards
- FCC Class A certified, UL, TUV, UL 1778, CB, IEC 62040-3, IEC 62040-1-1, IEC 62040-2, CSA 22.2, EN 62040-1-1, EN 62040-2
Software / System Requirements
- Software Included
- Intelligent Power Software Suite
- OS Required
- Linux, Apple MacOS X, Microsoft Windows Vista / XP / 7, Microsoft Windows Server 2008
Sustainability Information
- ENERGY STAR
- Yes
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Sound Emission
- 50 dBA
Dimensions & Weight
- Width
- 44 cm
- Depth
- 70 cm
- Height
- 26 cm
- Weight
- 86 kg
