Eaton 5P 650i Rack1U 650VA/420W Input:C14 Out: (4) C13

Review this product
Quicklinx: 8R5VWS00 Mfr#: 5P650IR
Type: UPS
Power Rating: 420Watt
11 In Stock
£377.89 ex VAT
£453.46 inc VAT
Qty
Standard delivery Delivered within 3 working days

Description

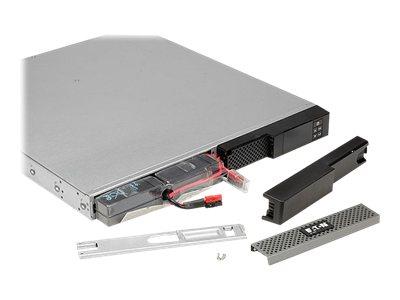

The Eaton 5P is a 650VA line interactive rack UPS with the Automatic Voltage Regulation (AVR), a sinewave output and an advanced, multilingual LCD display with energy metering features. The 5P possesses 4IEC outlets including 2 remotely manageable outlets and hot swappable batteries. In order to increase battery lifetime, this UPS includes the Advanced Battery Management (ABM) technology. The 5P also features a connector for remote power off or remote on off function.

  • Manageability

    The graphical LCD display provides clear information on the UPS's status and measurements on a single screen (in seven languages). Enhanced configuration capabilities are also available with easy-to-use navigation keys. Load segment control enables prioritized shutdowns of nonessential equipment during outages in order to maximize battery runtime for critical devices. Load segment control can also be used to remotely reboot locked-up network equipment or to manage scheduled shutdowns and sequential start-ups.
  • Performance and efficiency

    Energy efficient UPS: with an optimized electrical design, the 5P provides up to 98% efficiency, reducing cooling and utility costs.
  • Pure sinewave output

    When operating in battery mode, the 5P provides a high quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.
  • Adjustable tolerance and sensitivity

    Users can maximize useful battery life by widening the input voltage window or adjustable input waveform sensitivity (via the LCD or software) to adapt the UPS to a specific environment (like Genset).
  • Stronger, longer battery life

    Eaton ABM battery management technology uses an innovative three-stage charging technique that extends batteries by up to 50%.

Specifications

Summary

Product Description
Eaton 5P 650iR - UPS - 420 Watt - 650 VA
Device Type
UPS - rack-mountable
Rack Size
1U
Weight
8.6 kg
Input Voltage
AC 160-290 V
Output Voltage
230 V
Power Capacity
420 Watt / 650 VA
Input Connectors
1 x power IEC 60320 C14
Output connectors
4 x power IEC 60320 C13
Run Time (Up To)
9 min at half load
Networking
RS-232, USB
Dimensions (WxDxH)
43.8 cm x 36.4 cm x 4.32 cm
Manufacturer Warranty
3-year warranty


Detailed Specification

General

Device Type
UPS - rack-mountable
Height (Rack Units)
1U

Power Device

UPS Technology
Line interactive
Input Voltage
AC 160-290 V
Input Voltage Range
AC 150 - 294 V
Frequency Provided
50/60 Hz
Frequency Required
50/60 Hz
Input Connectors
1 x power IEC 60320 C14
Power Output Connectors Details
4 x power IEC 60320 C13
Output Voltage
230 V 50/60 Hz
Max Electric Current
10 A
Power Capacity
420 Watt / 650 VA
Output Waveform
Sinewave

Networking

Remote Management Interface
RS-232, USB

Miscellaneous

Features
Advance Battery Management (ABM), LCD display
Compliant Standards
TUV, UL 1778, CB, IEC 62040-3, IEC 62040-1-1, IEC 62040-2

Manufacturer Warranty

Service & Support
Limited warranty - 3 years , Limited warranty - batteries - 2 years

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
Sound Emission
40 dBA

Dimensions & Weight

Width
43.8 cm
Depth
36.4 cm
Height
4.32 cm
Weight
8.6 kg
