Description
The Eaton 5P is a 1150VA line interactive rack UPS with the Automatic Voltage Regulation (AVR), a sinewave output and an advanced, multilingual LCD display with energy metering features. The 5P possesses 8 IEC outlets including 4 remotely manageable outlets and hot swappable batteries. In order to increase battery lifetime, this UPS includes the Advanced Battery Management (ABM) technology. The 5P also features a connector for remote power off or remote on off function.
-
Manageability
The graphical LCD display provides clear information on the UPS's status and measurements on a single screen (in seven languages). Enhanced configuration capabilities are also available with easy-to-use navigation keys. Load segment control enables prioritized shutdowns of nonessential equipment during outages in order to maximize battery runtime for critical devices. Load segment control can also be used to remotely reboot locked-up network equipment or to manage scheduled shutdowns and sequential start-ups. -
Performance and efficiency
Energy efficient UPS: with an optimized electrical design, the 5P provides up to 98% efficiency, reducing cooling and utility costs. -
Pure sinewave output
When operating in battery mode, the 5P provides a high quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers. -
Adjustable tolerance and sensitivity
Users can maximize useful battery life by widening the input voltage window or adjustable input waveform sensitivity (via the LCD or software) to adapt the UPS to a specific environment (like Genset). -
Stronger, longer battery life

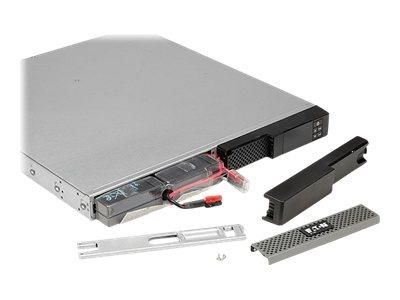

Eaton ABM battery management technology uses an innovative three-stage charging technique that extends batteries by up to 50%.
Specifications
Summary
- Product Description
- Eaton 5P 1150iR - UPS - 770 Watt - 1150 VA
- Device Type
- UPS - rack-mountable
- Rack Size
- 1U
- Weight
- 14.6 kg
- Input Voltage
- AC 160-290 V
- Output Voltage
- 230 V
- Power Capacity
- 770 Watt / 1150 VA
- Input Connectors
- 1 x power IEC 60320 C14
- Output connectors
- 6 x power IEC 60320 C13
- Run Time (Up To)
- 12 min at half load
- Networking
- RS-232, USB
- Dimensions (WxDxH)
- 43.8 cm x 50.9 cm x 4.32 cm
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Device Type
- UPS - rack-mountable
- Height (Rack Units)
- 1U
Power Device
- UPS Technology
- Line interactive
- Input Voltage
- AC 160-290 V
- Input Voltage Range
- AC 150 - 294 V
- Frequency Provided
- 50/60 Hz
- Frequency Required
- 50/60 Hz
- Input Connectors
- 1 x power IEC 60320 C14
- Power Output Connectors Details
- 6 x power IEC 60320 C13
- Output Voltage
- 230 V 50/60 Hz
- Max Electric Current
- 10 A
- Power Capacity
- 770 Watt / 1150 VA
- Output Waveform
- Sinewave
Networking
- Remote Management Interface
- RS-232, USB
Miscellaneous
- Features
- Advance Battery Management (ABM), LCD display
- Compliant Standards
- TUV, UL 1778, CB, IEC 62040-3, IEC 62040-1-1, IEC 62040-2
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years , Limited warranty - batteries - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 35 °C
- Sound Emission
- 40 dBA
Dimensions & Weight
- Width
- 43.8 cm
- Depth
- 50.9 cm
- Height
- 4.32 cm
- Weight
- 14.6 kg
