Description

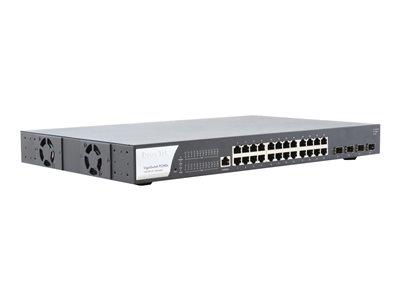

Draytek VigorSwitch P2280X - Switch - Managed - 24 x 10/100/1000 (PoE+) + 4 x 10Gb Ethernet SFP+ - desktop, rack-mountable - PoE+ (400 W)
-
Auto surveillance & voice VLAN
Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization. -
Web-based GUI
Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status. -
IP conflict prevention
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host. -
Central switch management
Set up VLAN easily from the router and get a centralized hierarchy view of the switches.
Specifications
Summary
- Product Description
- Draytek VigorSwitch P2280X - switch - 28 ports - Managed - rack-mountable
- Device Type
- Switch - 28 ports - Managed
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000 (PoE+) + 4 x 10Gb Ethernet SFP+
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 400 W
- Performance
- Switching capacity: 128 Gbps , Forwarding rate: 95.24 Mpps , Packet buffer size: 12 Mbit
- Capacity
- Link aggregation groups: 8 , ACL entries: 512 , VLANs supported: 255 , VLAN IDs: 4096
- MAC Address Table Size
- 16K entries
- Jumbo Frame Support
- 12KB
- Routing Protocol
- VRRP, MSTP, RSTP, STP
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI, ICMP
- Features
- Load balancing, VLAN support, DoS attack prevention, IPv6 support, SNTP support, sFlow, VRRP support, event log, DHCP snooping, QoS, DAI, IPv4 support, LACP support, DHCP relay, DHCP client, GVRP, dual firmware images, SPQ, NDP, loop prevention, port isolation, static routing, VSM, CoS, ONVIF support, Duplicated Address Detection, ToS, DSCP support, PoE circuit sorting protection, Storm Control, system log, IP source guard, rate limit, MAC address authentication, AAA, DNS client, Voice VLAN, VLAN management, Guest VLAN, ingress rate limiting, WRR, MAC based VLAN, egress rate limiting, OpenVPN client
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
- Power
- AC 120/230 V
- Dimensions (WxDxH)
- 44.1 cm x 27 cm x 4.5 cm
- Weight
- 4.32 kg
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- Switch - 28 ports - Managed
- Enclosure Type
- Desktop, rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000 (PoE+) + 4 x 10Gb Ethernet SFP+
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 400 W
- Performance
- Switching capacity: 128 Gbps , Forwarding rate: 95.24 Mpps , Packet buffer size: 12 Mbit
- Capacity
- Link aggregation groups: 8 , ACL entries: 512 , VLANs supported: 255 , VLAN IDs: 4096
- MAC Address Table Size
- 16K entries
- Jumbo Frame Support
- 12KB
- Routing Protocol
- VRRP, MSTP, RSTP, STP
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI, ICMP
- Authentication Method
- Secure Shell (SSH), RADIUS, TACACS+
- Features
- Load balancing, VLAN support, DoS attack prevention, IPv6 support, SNTP support, sFlow, VRRP support, event log, DHCP snooping, QoS, DAI, IPv4 support, LACP support, DHCP relay, DHCP client, GVRP, dual firmware images, SPQ, NDP, loop prevention, port isolation, static routing, VSM, CoS, ONVIF support, Duplicated Address Detection, ToS, DSCP support, PoE circuit sorting protection, Storm Control, system log, IP source guard, rate limit, MAC address authentication, AAA, DNS client, Voice VLAN, VLAN management, Guest VLAN, ingress rate limiting, WRR, MAC based VLAN, egress rate limiting, OpenVPN client
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
- Status Indicators
- Port transmission speed, power, alert, system, PoE, link/activity
Expansion / Connectivity
- Interfaces
- 24 x 1000Base-T RJ-45 PoE+ - 30 W , 4 x Gigabit / 10Gbit LAN SFP , 1 x console RJ-45
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V
- Power Consumption Operational
- 480 Watt
Miscellaneous
- Rack Mounting Kit
- Included
- Compliant Standards
- RoHS
Dimensions & Weight
- Width
- 44.1 cm
- Depth
- 27 cm
- Height
- 4.5 cm
- Weight
- 4.32 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
