Description

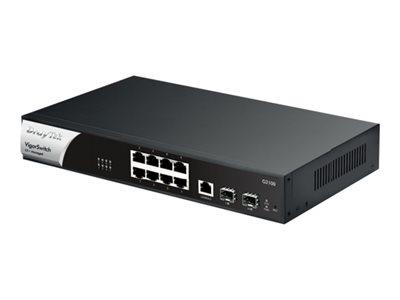

VigorSwitch G2100
8-Port Gigabit Layer 2+ Managed Switch with 2 SFP Uplink Ports
The VigorSwitch G2100 is a high-performance, Layer 2+ Managed Ethernet switch. With 8 RJ-45 Gigabit LAN ports, it's ideal for adding network ports to a DrayTek Vigor router. The enterprise-level features allow your business to improve network stability and security.
The VigorSwitch G2100 works superbly in standalone mode, but designed for centralised management, it can be provisioned and monitored by one of DrayTek’s central management platforms. These include the VigorACS management platform, VigorConnect on-site management and DrayTek’s router-based switch management These platforms allow you to drastically reduce the setup time required for a complex network and configure an entire DrayTek network remotely.
Central Management
Managing a VigorSwitch through VigorACS
Central Switch Management with a DrayTek Vigor Router
Dynamic MAC-based VLAN
Surveillance & Voice Auto VLAN
Advanced Layer 2+ Routing Features
ONVIF IP Camera Management
IP Conflict Detection & Prevention
Quality of Service & Bandwidth Control
Network Security and Management Features
Rack Mountable & Silent
-
Great security features
Protect your network against unauthorized access and network problems with DrayTek's IP conflict prevention, 802.1X port authentication, DHCP Snooping, and Access Control Lists. -
Advanced Layer 2+ Routing features
Expand your network with support for Layer 3 features such as Static Routes and VLAN Routing, to connect separate networks through the VigorSwitch. -
Rack-mountable and silent
Fanless and silent, the switch is ideal for use in a quiet office or home environment. -
IP camera management
Manage IP cameras easily with detection and management of ONVIF cameras. Use PoE device check, auto-generated IP camera topology and camera snapshots to detect and troubleshoot problems.
Specifications
Summary
- Product Description
- Draytek VigorSwitch G2100 - switch - 8 ports - Managed - rack-mountable
- Device Type
- Switch - 8 ports - L2+ - Managed
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 + 2 x Gigabit SFP (uplink)
- Performance
- Forwarding performance (64-byte packet size): 14.88 Mpps , Switching capacity: 20 Gbps
- Capacity
- Virtual interfaces (VLANs): 256 , QoS queues: 8 , Total link aggregation groups: 4
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- IGMPv2, static IP routing, IGMPv3, MLDv2, MLD
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2
- Features
- Flow control, auto-negotiation, load balancing, VLAN support, IGMP snooping, Syslog support, traffic shaping, E-mail alert, WRR queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, SNTP support, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, DHCP server, MLD snooping, DAI, reset button, IPv4 support, LLDP support, Energy Efficient Ethernet, MVR, SPQ, port isolation, CoS, tagged VLAN, GVRP, ONVIF support, DSCP support, Protocol-based VLANs support, IP source guard, layer 2+ switching, Link Aggregation, scheduler, rate limit, AAA, IGMP querier, VLAN Double Tagging (Q-in-Q), Voice VLAN, VLAN management, LLDP-MED, Private MIB, Guest VLAN, DoS protection, DSCP based CoS, MAC based VLAN, loopback detection, Unknown Storm Control, 4.1Mbit packet buffer, Address Conflict Detection, OpenVPN client, DSCP based QoS
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.3az
- Power
- AC 120/230 V
- Dimensions (WxDxH)
- 27 cm x 18.1 cm x 4.4 cm
- Weight
- 1.78 kg
- Localisation
- United Kingdom
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- Switch - 8 ports - L2+ - Managed
- Enclosure Type
- Desktop, rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 + 2 x Gigabit SFP (uplink)
- Performance
- Forwarding performance (64-byte packet size): 14.88 Mpps , Switching capacity: 20 Gbps
- Capacity
- Virtual interfaces (VLANs): 256 , QoS queues: 8 , Total link aggregation groups: 4
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- IGMPv2, static IP routing, IGMPv3, MLDv2, MLD
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2
- Authentication Method
- RADIUS, TACACS+, Secure Shell v.2 (SSH2), internal user database
- Features
- Flow control, auto-negotiation, load balancing, VLAN support, IGMP snooping, Syslog support, traffic shaping, E-mail alert, WRR queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, SNTP support, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, DHCP server, MLD snooping, DAI, reset button, IPv4 support, LLDP support, Energy Efficient Ethernet, MVR, SPQ, port isolation, CoS, tagged VLAN, GVRP, ONVIF support, DSCP support, Protocol-based VLANs support, IP source guard, layer 2+ switching, Link Aggregation, scheduler, rate limit, AAA, IGMP querier, VLAN Double Tagging (Q-in-Q), Voice VLAN, VLAN management, LLDP-MED, Private MIB, Guest VLAN, DoS protection, DSCP based CoS, MAC based VLAN, loopback detection, Unknown Storm Control, 4.1Mbit packet buffer, Address Conflict Detection, OpenVPN client, DSCP based QoS
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.3az
Expansion / Connectivity
- Interfaces
- 8 x 1000Base-T RJ-45 , 2 x Gigabit LAN SFP , 1 x console RJ-45 management
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V
- Power Consumption Operational
- 18 Watt
Miscellaneous
- Cables Included
- 1 x console cable
- Rack Mounting Kit
- Included
- Compliant Standards
- FCC
- Localisation
- United Kingdom
Dimensions & Weight
- Width
- 27 cm
- Depth
- 18.1 cm
- Height
- 4.4 cm
- Weight
- 1.78 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 90% (non-condensing)
