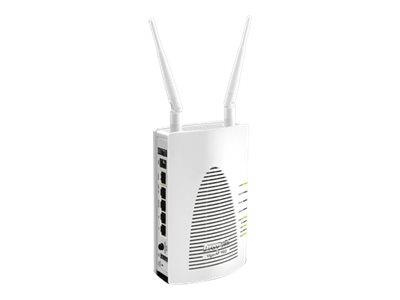

DrayTek VigorAP 902 Wireless Access Point

DrayTek VigorAP 902 Wireless Access Point

Review this product
Quicklinx: C44VWS00 Mfr#: VAP902-K
  • IEEE 802.11n


The DrayTek VigorAP 902 is a wireless access point which can be operated in standalone or centrally managed/monitored mode (with the use of a central DrayTek management product - see later). The VigorAP 902 is a high specification professional access point providing reliable and flexible coverage to all manner of applications. A vast array of security and management features helps the AP to improve and protect flexibility and integrity of your wireless LAN. The VigorAP 902 is ideal for adding wireless connectivity to an existing LAN, or for expanding the range of an existing wireless LAN by using the WDS repeater features.

  • Simultaneous dual-band operation & extended 5 Ghz bands

    The VigorAP 902 supports simultaneous operation of the common 2.4 Ghz band and faster 5Ghz band. The 5 Ghz band is far less congested so if your PCs or other devices support the 5 Ghz band, you can use that. The 5 Ghz band is used for 802.11ac. The VigorAP 902 operates both bands at the same time, allowing your devices to use either band and each has its own bandwidth so overall wireless capacity is also increased. The 5 Ghz interface supports the full range of extended domestic 5 Ghz channels, thanks to its support for DFS/TPC; you can select all 5 Ghz channels up to channel 140, as opposed to just the 4 'Band A-Lower' channels.
  • Gigabit Ethernet ports

    The VigorAP 902 has five wired Ethernet ports. LAN A and LAN B can be fed separately and in turn broadcast on independent and isolated SSIDs. As the ports are all Gigabit, you can be sure that the AP is fed at the maximum speed in order to fully satisfy the full speed of both 2.4 GHz and 5 Ghz bands simultaneously. The four ports on LAN A are particularly of use if you are using the AP as a wireless bridge as you can then connect wired PCs or devices to it. LAN Port 3 on LAN-A is also used as the PoE input if you're powering the AP by PoE.
  • Central management

    The VigorAP 902 can operate in standalone autonomous mode, but can also form part of a centrally managed wireless installation by adding a compatible DrayTek wireless controller. This enables you to centrally control, manage and administer multiple AP devices installed around your building/campus. Management also enables efficient usage of your wireless access point through load-balancing, whereby wireless clients are distributed across several access points to reduce congestion.
  • Wireless security & VLANs

    The VigorAP 902 features multiple levels of wireless security. Encryption using WPA2 (802.11i) is available and you can also use the access control list (ACL) to specify the hardware addresses of clients which are permitted to connect.
  • Local temperature logging and alarm

    As your VigorAP 902 unit(s) will be distributed around your building, it's an ideal opportunity to also gather environmental information about those locations. By the addition of an USB temperature sensor, your VigorAP 902 can report real-time local temperature information, show the previous 24 hour's chart and also set high/low alarms to alert/log if the temperature falls above or below your set levels. This facility is ideal for detecting if any part of your building is over or under-heated or if heating/cooling has been left on overnight and therefore helping to make more efficient use of your heating or cooling energy consumption, potentially saving cost. The VigorAP 902's USB interface can instead connect to a regular printer. That printer is then accessible from any wireless or wired PC which connects to the VigorAP 902, or a PC anywhere else on the network. This is ideal to provide printer access to wireless laptops but could also be used for installing a printer elsewhere in your home/office by using a pair of VigorAP 902s to make a bridge.
  • Wi-Fi protected setup

    Wireless Security (encryption) is important to protect your data (privacy) but also to prevent unauthorized people from accessing your network or your Internet connection. The WPS system means that instead of having to create and enter long encryption keys, you can activate WPS registration. To activate, you press and hold the WPS button, then activate WPS on your wireless device; the two devices then automatically exchange encryption keys. WPS can be disabled if not required or for more security.
  • Power-over-Ethernet

    The VigorAP 902 supports PoE as standard (built-in) so if the AP is connected to a PoE-enabled Ethernet switch or PoE injector, you don't need any local power to the unit (power supply) - the VigorAP 902 will take its power from the Ethernet cable. The VigorAP 902 supports Gigabit PoE such as the VigorSwitch P2261 or P1090 models. PoE is ideal for situations where you do not have mains power available in the exact location where you want to install the VigorAP 902 or just for general aesthetic neatness, perhaps where the AP is installed somewhere prominent.
  • Dual-LAN

    The VigorAP 902 can support two completely independent LANs. Each is connected via its own independent RJ45 Ethernet interface. There are Ethernet RJ45 interfaces for LAN A (4 ports) and LAN B (one port). These networks remain completely isolated from each other. Each LAN can be assigned its own separate Wireless SSID so they remain separated even on the Wireless LAN. This is the equivalent of having two completely separate access points and ideal for public and private networks in the same location or wireless LANs for two separate companies.



Product Description
Draytek VigorAP 902 - radio access point
Device Type
Radio access point
Form Factor
United Kingdom, Ireland
Data Link Protocol
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Frequency Band
2.4 GHz, 5 GHz
Power Over Ethernet (PoE) Supported
Dimensions (WxDxH)
12.7 cm x 3 cm x 15.7 cm
400 g
Manufacturer Warranty
2-year warranty

Detailed Specification


Device Type
Radio access point
Built-in Devices
Print server, 5 port switch
12.7 cm
3 cm
15.7 cm
400 g
United Kingdom, Ireland


Form Factor
Connectivity Technology
Data Transfer Rate
867 Mbps
Data Link Protocol
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Remote Management Protocol
SNMP 2, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, CLI, TR-069
Frequency Band
2.4 GHz, 5 GHz
Power over Ethernet (PoE), repeating mode, Syslog support, print server, MAC address filtering, Wireless Distribution System (WDS) support, firmware upgradable, wall mountable, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), RADIUS support, Wi-Fi Protected Setup (WPS), DHCP server, Multiple SSID support, wireless bridge mode, reset button, 2T2R MIMO technology, DHCP client, tagged VLAN
Encryption Algorithm
Authentication Method
RADIUS, Radio Service Set ID (SSID)
Compliant Standards
IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11n, IEEE 802.11ac


External detachable
Antenna Qty

Expansion / Connectivity

4 x 1000Base-T - RJ-45 , 1 x 1000Base-T (PoE) - RJ-45 , 1 x USB 2.0 - Type A


Power Over Ethernet (PoE) Supported
Power Device
External power adapter

Manufacturer Warranty

Service & Support
Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
