Description
VDSL and Ethernet Router

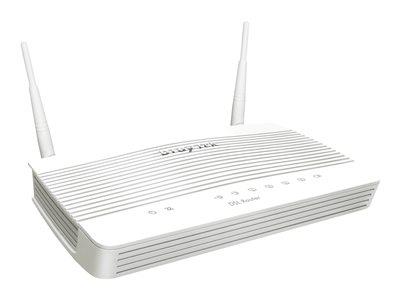

The Vigor 2763 is a VDSL or Ethernet WAN router with Gigabit performance, allowing you to make full use of DrayTek's advanced feature set, with Quality of Service, VPN and Content Filtering. Connect the Vigor 2763 to Superfast Fibre with its integrated VDSL modem. Or connect to VirginMedia Cable and Ultrafast FTTP with Ethernet WAN.
Either connection, or a 4G USB modem can be used as the primary or Failover connections, so that if the main Internet connection goes down, the Vigor 2763 can use its backup connections to guarantee reliable Internet access and VPN connectivity.
Powerful SoHo VPN Router
Connecting Remote Sites with LAN to LAN VPN
DrayTek SSL VPN for Dial-In Teleworkers & LAN to LAN
Connect VPNs from behind NAT with DrayTek's VPN Matcher
AC1300 Wireless LAN with Mesh
4 Gigabit LAN Ports with VLANs
Designed for Central Management
Robust & Comprehensive IPv4 / IPv6 Firewall
DrayDDNS - DrayTek Dynamic DNS Address
Quality of Service with App QoS
-
VDSL and Ethernet router
Connect the Vigor 2763 to Superfast Fibre with its integrated VDSL modem. Or connect to VirginMedia Cable and Ultrafast FTTP with Ethernet WAN. -
AC1300 wireless with Mesh
Connect DrayTek VigorAP access points to the router in a wireless Mesh. DrayTek's Self-Optimizing Mesh ensures access points are always connecting through the best path to your router. -
Packed with features
Configure DrayTek's rich feature set to fit your network with app level network management, Route Policy, Quality of Service, VPN Matcher, advanced 2-factor security, DrayDDNS and more. -
Powerful SoHo VPN router
Connect remote locations with 2 VPN tunnels for Remote Dial-In User Teleworker and Dial-Out LAN to LAN VPN. Up to 150 Mbps IPsec performance, with SSL and OpenVPN support. -
4 Gigabit LAN ports with VLANs
Allows computers, servers and network attached storage to transfer at Gigabit speed. Up to 4 LAN subnets and VLANs allow you to keep guest networks from accessing private network data. -
VigorACS central management
DrayTek's powerful VigorACS central management platform allows you to manage, monitor and configure the Vigor 2763, along with all other DrayTek products remotely across multiple locations.
Specifications
Summary
- Product Description
- Draytek Vigor 2763ac - wireless router - DSL modem - Wi-Fi 5 - desktop, wall-mountable
- Device Type
- Wireless router - DSL modem - 4-port switch (integrated)
- Enclosure Type
- Desktop, wall-mountable
- Digital Signaling Protocol
- H.323, ADSL, SIP, ADSL2, ADSL2+, VDSL2
- WAN Ports Qty
- 2
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, PPP, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
- Frequency Band
- 2.4 GHz / 5 GHz
- Performance
- VPN throughput (256-bit AES IPSec): 200 Mbps , VPN throughput (SSL): 80 Mbps , NAT throughput: 700 Mbps , NAT throughput (with VDSL2): 100 Mbps , NAT throughput with hardware acceleration: 950 Mbps , NAT throughput without hardware acceleration: 700 Mbps , Maximum data rate (2.4 GHz): 400 Mbps , Maximum data rate (5 GHz): 866 Mbps
- Capacity
- Priority QoS queues: 4 , Concurrent VPN tunnels: 2 , NAT sessions: 50000 , DHCP pool: 253 , SSIDs per radio: 4 , VLANs supported: 8
- Network / Transport Protocol
- PPTP, L2TP, IPSec, PPPoE, PPPoA, AAL5, FTP, DHCP, Bonjour, DHCPv6, RTSP, IPv4, IPv6
- Routing Protocol
- MPOA, static IPv4 routing, static IPv6 routing
- Remote Management Protocol
- SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, TR-069, Syslog
- VoIP Protocols
- H.323, SIP
- Features
- IGMP snooping, DoS attack prevention, content filtering, port mirroring, E-mail alert, LAN-to-LAN bridging, WMM support, file sharing, TFTP support, ACL support, QoS, DPD, IPSec NAT-T, SMS alert, reset button, DNS server, port triggering, 3G/4G USB Dongle Support, TxBF ready, dual-stream (2x2), IGMP proxy, 802.1x authentication, ToS, automated backup scheduling, MU-MIMO technology, fast leave, Inter-VLAN Routing, L2TP over IPSec, black list, white list, DSCP based ToS, wireless access control, DNSSEC support, PPP, IPTV support, EAPOL, OpenVPN pass-through, Brute Force Protection, SIP ALG, DrayDDNS, WAN Budget, Wi-Fi on/off button, DSL mode, USB backup, ping detect, ARP detect, dynamic DNS, Full Feature-set Hardware Acceleration, 2-Level Administration Privilege, Teleworker-to-LAN bridging, ISP Video support, NAT port redirection, DMZ host, spoofing defence, user-based Time Quota, IP-based Firewall Policy
- Compliant Standards
- IEEE 802.1Q, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, X.509, IEEE 802.11n, UPnP, ITU-T G.993.1, ITU-T G.993.2, ITU-T G.997.1, IEEE 802.11ac Wave 2
- Power
- AC 100-240 V / DC 12 V
- Dimensions (WxDxH)
- 20.7 cm x 13.1 cm x 4.2 cm
- Weight
- 450 g
- Localisation
- United Kingdom, Ireland
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- Wireless router - 4-port switch (integrated)
- Enclosure Type
- Desktop, wall-mountable
- Connectivity Technology
- Wireless, wired
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, PPP, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
- Frequency Band
- 2.4 GHz / 5 GHz
- Performance
- VPN throughput (256-bit AES IPSec): 200 Mbps , VPN throughput (SSL): 80 Mbps , NAT throughput: 700 Mbps , NAT throughput (with VDSL2): 100 Mbps , NAT throughput with hardware acceleration: 950 Mbps , NAT throughput without hardware acceleration: 700 Mbps , Maximum data rate (2.4 GHz): 400 Mbps , Maximum data rate (5 GHz): 866 Mbps
- Capacity
- Priority QoS queues: 4 , Concurrent VPN tunnels: 2 , NAT sessions: 50000 , DHCP pool: 253 , SSIDs per radio: 4 , VLANs supported: 8
- Network / Transport Protocol
- PPTP, L2TP, IPSec, PPPoE, PPPoA, AAL5, FTP, DHCP, Bonjour, DHCPv6, RTSP, IPv4, IPv6
- Routing Protocol
- MPOA, static IPv4 routing, static IPv6 routing
- Remote Management Protocol
- SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, TR-069, Syslog
- Encryption Algorithm
- DES, Triple DES, MPPE, SHA-1, WPA, WPA2, 128-bit AES, 192-bit AES, 256-bit AES, IKEv2, WEP, WPS, WPA3, IKEv1, SHA-256
- Authentication Method
- RADIUS, internal user database, Mobile One Time Password (mOTP)
- Wi-Fi Rating
- AC1300
- Features
- IGMP snooping, DoS attack prevention, content filtering, port mirroring, E-mail alert, LAN-to-LAN bridging, WMM support, file sharing, TFTP support, ACL support, QoS, DPD, IPSec NAT-T, SMS alert, reset button, DNS server, port triggering, 3G/4G USB Dongle Support, TxBF ready, dual-stream (2x2), IGMP proxy, 802.1x authentication, ToS, automated backup scheduling, MU-MIMO technology, fast leave, Inter-VLAN Routing, L2TP over IPSec, black list, white list, DSCP based ToS, wireless access control, DNSSEC support, PPP, IPTV support, EAPOL, OpenVPN pass-through, Brute Force Protection, SIP ALG, DrayDDNS, WAN Budget, Wi-Fi on/off button, DSL mode, USB backup, ping detect, ARP detect, dynamic DNS, Full Feature-set Hardware Acceleration, 2-Level Administration Privilege, Teleworker-to-LAN bridging, ISP Video support, NAT port redirection, DMZ host, spoofing defence, user-based Time Quota, IP-based Firewall Policy
- Compliant Standards
- IEEE 802.1Q, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, X.509, IEEE 802.11n, UPnP, ITU-T G.993.1, ITU-T G.993.2, ITU-T G.997.1, IEEE 802.11ac Wave 2, TOTP
- Built-in Devices
- Led panel
- Status Indicators
- WAN, LAN, USB, 5 GHz, 2.4 GHz, QoS
Line Properties
- Framing Format
- ANSI T1.413i2
Communications
- Type
- DSL modem
- Digital Signaling Protocol
- H.323, ADSL, SIP, ADSL2, ADSL2+, VDSL2
- Protocols & Specifications
- ITU G.992.1 (G.DMT), ITU G.992.2 (G.Lite), ITU G.992.5 Annex M, ITU G.992.3 Annex M, ITU G.992.5 Annex J, ITU G.992.3 Annex J
- Max Transfer Rate
- 300 Mbps
IP Telephony
- VoIP Protocols
- H.323, SIP
Expansion / Connectivity
- Interfaces
- LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 , WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 , WAN: 1 x VDSL2 / ADSL2+ - RJ-11 , USB 2.0: 2 x 4 pin USB Type A , Antenna: 2 x
Aerial
- Aerial
- External detachable
- Antenna Qty
- 2
Power
- Power Device
- External power adapter
- Voltage Required
- AC 100-240 V / DC 12 V
- Power Consumption Operational
- 21 Watt
Miscellaneous
- Included Accessories
- 2 x WiFi aerials
- Cables Included
- 1 x network cable - 2 m
- Mounting Kit
- Included
- Localisation
- United Kingdom, Ireland
Software / System Requirements
- OS Provided
- No operating system
Dimensions & Weight
- Width
- 20.7 cm
- Depth
- 13.1 cm
- Height
- 4.2 cm
- Weight
- 450 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
