Description

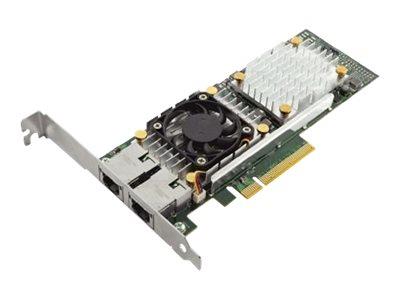

The Broadcom BCM957810A1008G from Dell TM is a dual-port 10 Gbps Ethernet network interface card (NIC) with x8 PCI Express host interface. The BCM957810A1008G NIC uses the BCM57810S MAC networking controller and the BCM84833 PHY to provide a dual 10 GBASE-T port media interface that is fully compliant to the IEEE 802.3an standard. It also features on TOE, iSCSI, FCoE and DCB. It supports IEEE 802.1q VLAN tagging.
Specifications
Summary
- Product Description
- Broadcom NetXtreme II BCM957810A1008G - network adapter - PCIe x8 - 10Gb Ethernet x 2
- Device Type
- Network adapter
- Form Factor
- Plug-in card
- Interface (Bus) Type
- PCI Express x8
- Ports
- 10Gb Ethernet x 2
- Cabling Type
- Ethernet 10GBase-T
- Data Link Protocol
- 10GbE
- Data Transfer Rate
- 10 Gbps
- Processor
- 1 x Broadcom BCM57810S
- Compliant Standards
- IEEE 802.1Q, IEEE 802.3an
- Designed For
- Full-height slot PowerEdge R220, R320, R330, R420, R420xr, R430, R440, R520, R530, R540, R620, R630, R640, R715, R720, R720xd, R730, R730xd, R740, R740xd, R820, R830, R910, R920, R930, T420, T430, T620, T630, T640
Detailed Specification
General
- Device Type
- Network adapter
- Form Factor
- Plug-in card
- Interface (Bus) Type
- PCI Express x8
Networking
- Ports
- 10Gb Ethernet x 2
- Connectivity Technology
- Wired
- Cabling Type
- Ethernet 10GBase-T
- Data Link Protocol
- 10 Gigabit Ethernet
- Data Transfer Rate
- 10 Gbps
- Features
- TCP Offload Engine (TOE)
- Compliant Standards
- IEEE 802.1Q, IEEE 802.3an
Processor / Memory
- Processor
- 1 x Broadcom BCM57810S
Expansion / Connectivity
- Interfaces
- 2 x 10GBase-T
Compatibility Information
- Designed For
- Full-height slot PowerEdge R220, R320, R330, R420, R420xr, R430, R440, R520, R530, R540, R620, R630, R640, R715, R720, R720xd, R730, R730xd, R740, R740xd, R820, R830, R910, R920, R930, T420, T430, T620, T630, T640
