Description

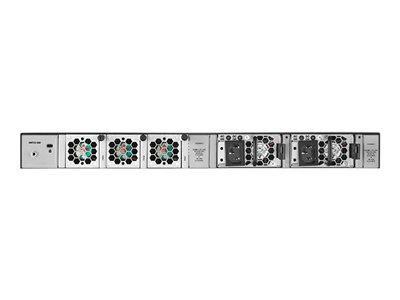

The DXS-3400 Series switches feature a modular fan and power supply design for a high availability architecture. The hot-swappable design means that fans and power supplies can be replaced without affecting switch operation. Physical and virtual switch stacking allow the switches to be managed from a single IP address and provide redundancy for connected devices. The Switch Resource Management (SRM) feature allows the hardware table size to be changed, so that switch functions can be optimized based on the use of the switch. The DXS-3400 Series switches come with 3 modes; IP Mode, LAN Mode and L2 VPN Mode, which modify the size of the Layer 2 and 3 tables for optimum efficiency.
The DXS-3400 Series switches include feature rich software which satisfies the needs of Small Medium Business, Small Medium Enterprise, and campus users. It supports a wide range of Layer 2 and 3 functions such as VLANs, inter-VLAN routing, multicasting, Quality of Service (QoS), Virtual Router Redundancy Protocol (VRRP), Routing Information Protocol (RIP) v1/2, Next Generation RIP (RIPng), Policy-Based Routing (PBR), and security features. The DXS-3400 Series also includes an easy-to-use web interface and an industry standard CLI for improved management.
-
High availability and flexibility
The DXS-3400 Series switches feature a modular fan and power supply design for a high availability architecture. The hot-swappable design means that fans and power supplies can be replaced without affecting switch operation. Physical and virtual switch stacking allow the switches to be managed from a single IP address and provide redundancy for connected devices. The Switch Resource Management (SRM) feature allows the hardware table size to be changed, so that switch functions can be optimized based on the use of the switch. The DXS-3400 Series switches come with 3 modes; IP Mode, LAN Mode and L2 VPN Mode, which modify the size of the Layer 2 and 3 tables for optimum efficiency. -
Feature rich software
The DXS-3400 Series switches include feature rich software which satisfies the needs of Small Medium Business, Small Medium Enterprise, and campus users. It supports a wide range of Layer 2 and 3 functions such as VLANs, inter-VLAN routing, multicasting, Quality of Service (QoS), Virtual Router Redundancy Protocol (VRRP), Routing Information Protocol (RIP) v1/2, Next Generation RIP (RIPng), Policy-Based Routing (PBR), and security features. The DXS-3400 Series also includes an easy-to-use web interface and an industry standard CLI for improved management. -
Lossless Ethernet
Data Center Bridging (DCB) is an essential set of enhancements to Ethernet for networking in data center environments. The DXS-3400 Series switches support several core components of Data Center Bridging (DCB) such as IEEE 802.1Qbb, IEEE 802.1Qaz, and IEEE 802.1Qau. IEEE 802.1Qbb (Priority-based Flow Control) provides flow control on specific priority to ensure there is no data loss during network congestion. IEEE 802.1Qaz (Enhanced Transmission Selection) manages the allocation of bandwidth amongst different traffic classes. IEEE 802.1Qau (Congestion Notification) provides congestion management for data flows within network domains to avoid congestion. -
Energy efficient
The DXS-3400 Series switches feature front-to-back airflow which facilitates the building of energy-efficient data centers. The front-to-back airflow optimizes air circulation inside the rack, allowing hot and cold isles in data centers, increasing energy efficiency in comparison to a mix of front-to-back and side-to-side airflow. The switches also feature in-built smart fans; internal heat sensors monitor and detect temperature changes, and react accordingly by utilizing different fan speeds for different temperatures. At lower temperatures, the fans will run more slowly, reducing the switch's power consumption and noise.
Specifications
Summary
- Product Description
- D-Link DXS 3400-24TC - switch - 24 ports - Managed - rack-mountable
- Device Type
- Switch - 24 ports - L3 Lite - Managed - stackable
- Enclosure Type
- Rack-mountable 1U
- Subtype
- 10 Gigabit Ethernet
- Ports
- 20 x 10GBase-T + 4 x combo 10 Gigabit SFP+
- Performance
- Switching capacity: 480 Gbps , Forwarding performance: 357.12 Mpps , Stacking bandwidth: 80 Gbps
- Capacity
- IGMP groups: 256 , MLD groups: 256 , ARP entries: 512
- MAC Address Table Size
- 48K entries
- Jumbo Frame Support
- 12KB
- Routing Protocol
- RIP-1, RIP-2, VRRP, GRE, policy-based routing (PBR)
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, CLI
- Features
- Flow control, VPN support, ARP support, load balancing, DoS attack prevention, port mirroring, WRR queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, firmware upgradable, sFlow, PIM snooping, STP support, RSTP support, MSTP support, enhanced transmission selection, ACL support, QoS, RADIUS support, DHCP server, MLD snooping, Cable Diagnostics Function, bandwidth control, URPF, UDLD, DWRR, LLDP support, DHCP relay, DCB, DHCP client, Energy Efficient Ethernet, GVRP, SP, 4MB packet buffer, TRTCM, DSCP support, ERPS, hot swappable 3 fans, SRTCM, system log, Head of Line Blocking Prevention, DRR, PFC, Link Aggregation
- Compliant Standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1v, IEEE 802.1ag, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau
- Power
- AC 120/230 V (50/60 Hz) 2 A
- Power Redundancy
- Optional
- Dimensions (WxDxH)
- 44.1 cm x 38 cm x 4.4 cm
- Weight
- 7.6 kg
Detailed Specification
General
- Device Type
- Switch - 24 ports - L3 Lite - Managed - stackable
- Enclosure Type
- Desktop, rack-mountable 1U
- Subtype
- 10 Gigabit Ethernet
- Ports
- 20 x 10GBase-T + 4 x combo 10 Gigabit SFP+
- Performance
- Switching capacity: 480 Gbps , Forwarding performance: 357.12 Mpps , Stacking bandwidth: 80 Gbps
- Capacity
- IGMP groups: 256 , MLD groups: 256 , ARP entries: 512
- MAC Address Table Size
- 48K entries
- Jumbo Frame Support
- 12KB
- Max Units In A Stack
- 4
- Routing Protocol
- RIP-1, RIP-2, VRRP, GRE, policy-based routing (PBR)
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, CLI
- Encryption Algorithm
- SSL, SSL 3.0, SSL 2.0
- Authentication Method
- RADIUS, TACACS+, Secure Shell v.2 (SSH2)
- Features
- Flow control, VPN support, ARP support, load balancing, DoS attack prevention, port mirroring, WRR queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, firmware upgradable, sFlow, PIM snooping, STP support, RSTP support, MSTP support, enhanced transmission selection, ACL support, QoS, RADIUS support, DHCP server, MLD snooping, Cable Diagnostics Function, bandwidth control, URPF, UDLD, DWRR, LLDP support, DHCP relay, DCB, DHCP client, Energy Efficient Ethernet, GVRP, SP, 4MB packet buffer, TRTCM, DSCP support, ERPS, hot swappable 3 fans, SRTCM, system log, Head of Line Blocking Prevention, DRR, PFC, Link Aggregation
- Compliant Standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1v, IEEE 802.1ag, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau
Expansion / Connectivity
- Interfaces
- 24 x 10GBase-T RJ-45 , 4 x 10GBase-X SFP+ , 1 x console RJ-45 , 1 x console (mini-USB) , 1 x management (Gigabit LAN) RJ-45 , 1 x USB
Power
- Power Device
- Internal power supply - hot-plug
- Installed Qty
- 1
- Max Supported Qty
- 2
- Power Redundancy
- Optional
- Power Redundancy Scheme
- 1+1 (with optional power supply)
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Electric Current Required
- 2 A
- Power Consumption Operational
- 163.62 Watt
Miscellaneous
- Compliant Standards
- VCCI, C-Tick, BSMI, cUL, CB, CCC, FCC
Dimensions & Weight
- Width
- 44.1 cm
- Depth
- 38 cm
- Height
- 4.4 cm
- Weight
- 7.6 kg
Environmental Parameters
- Min Operating Temperature
- -5 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 0 - 95% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 0 - 95% (non-condensing)
