Product

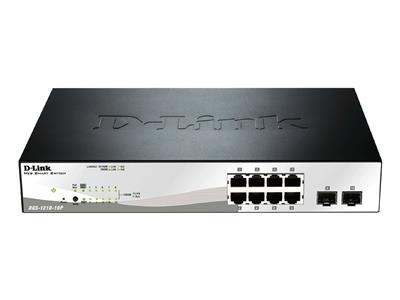

D-Link 10-PORT 10/100/1000 PoE+ Smart Switch, Fanless, Rackmountable, 2xSFP Ports

Review this product
Quicklinx: 75H0WS00 Mfr#: DGS-1210-10P
Type: Gigabit Ethernet
Ports: 10
Data Transfer Rate: 1Gbps
Managed: Yes
POE: PoE+
34 in stock
£118.17 ex VAT
£141.80 inc VAT
Qty
Standard delivery Delivered within 3 working days

Description

The DGS-1210-10/10P/20/28 features a fanless design that allows for quieter operation and helps to extend the device's lifetime. While the DGS-1210-28P/52/52P feature a smart fan design that powers on after the switch reaches a certain temperature, saving energy and cutting costs without sacrificing performance.

  • D-Link Green

    D-Link is constantly striving to take the lead in developing innovative technology that allows for power-saving without sacrificing operational performance or functionality. The DGS-1210 series automatically detects the length of connected cables and can adjust power usage by saving energy on shorter cable connections of up to 20 meters. Link status drastically reduces power consumption by automatically toggling ports without a link to sleep mode. The DGS-1210 series takes the approach to green IT one step further by incorporating a special chipset with advanced silicon technology.
  • Extensive Layer 2 features

    Equipped with a complete lineup of L2 features, these switches include IGMP Snooping, Port Mirroring, Spanning Tree and Link Aggregation Control Protocol (LACP). The IEEE 802.3x flow control function allows servers to directly connect to the switch for fast, reliable data transfer. At 2000 Mbps full duplex, the Gigabit ports provide high-speed data pipes to servers with minimum data transfer loss. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostic feature, designed primarily for administrators and customer service representatives, can rapidly discover the type of error and determine the cable quality.
  • QoS, bandwidth control

    The switches are perfect for deployment in a VoIP environment, as they support auto voice VLAN and Differentiated Services Code Point (DSCP) QoS for VoIP. Auto voice VLAN will automatically place voice traffic from an IP phone to an assigned VLAN and by doing so enhance the VoIP service. With a higher priority and individual VLAN, this feature guarantees the quality and security of VoIP traffic. DSCP marks parts of an IP packet, enabling different levels of service to be assigned for network traffic. With bandwidth control, network administrators can reserve bandwidth for important functions that require a larger bandwidth or might have high priority.
  • Secure your network

    D-Link's safeguard engine protects the switches against traffic flooding caused by virus attacks. The switches also support 802.1x port-based authentication, allowing the network to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and helps to protect the internal IT network. The DGS-1210 series includes ARP Spoofing prevention, which protects from attacks on the Ethernet network that may allow an intruder to sniff data frames, modify traffic, or bring traffic to a halt altogether by sending fake ARP messages to the network. To prevent ARP Spoofing attacks, the switch uses packet control ACLs to block invalid packets that contain fake ARP messages. For added security, the DHCP server screening feature screens rogue DHCP server packets from user ports to prevent unauthorized IP assignment.
  • Versatile management

    The DGS-1210 series provides a SmartConsole utility and a web-based management interface that enables administrators to remotely control their network down to the port level. The SmartConsole easily allows customers to discover multiple D-Link web smart switches within the same L2 network segment. With this utility, users do not need to change the IP address of their PC. It also simplifies the initial setup of the smart switches. Switches within the same L2 network segment that are connected to the user's PC are displayed on screen for instant access. This allows extensive switch configuration and basic setup of discovered devices including password changes and firmware upgrades.

Specifications

Summary

Product Description
D-Link Web Smart DGS-1210-10P - switch - 10 ports - Managed
Device Type
Switch - 10 ports - Managed
Enclosure Type
1U
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
Power Over Ethernet (PoE)
PoE+
PoE Budget
78 W
MAC Address Table Size
8K entries
Remote Management Protocol
SNMP 1, SNMP 2, Telnet, HTTP, TFTP
Features
Flow control, full duplex capability, Layer 2 switching, DHCP support, auto-negotiation, BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Safeguard Engine
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3at
Power
AC 120/230 V (50/60 Hz)
Dimensions (WxDxH)
33 cm x 18 cm x 4.4 cm
Weight
1.84 kg


Detail

General

Device Type
Switch - 10 ports - Managed
Enclosure Type
Desktop 1U
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
Power Over Ethernet (PoE)
PoE+
PoE Budget
78 W
MAC Address Table Size
8K entries
Remote Management Protocol
SNMP 1, SNMP 2, Telnet, HTTP, TFTP
Authentication Method
RADIUS
Features
Flow control, full duplex capability, Layer 2 switching, DHCP support, auto-negotiation, BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Safeguard Engine
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3at
RAM
512 KB
Built-in Devices
Led panel
Status Indicators
Port transmission speed, power, link OK, link/activity

Expansion / Connectivity

Interfaces
8 x 1000Base-T RJ-45 PoE+ , 2 x Gigabit LAN SFP

Power

Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)

Miscellaneous

MTBF
205,249 hours
Compliant Standards
FCC Class A certified, C-Tick, cUL, VCCI Class A ITE, IC Class A

Dimensions & Weight

Width
33 cm
Depth
18 cm
Height
4.4 cm
Weight
1.84 kg

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 95%
