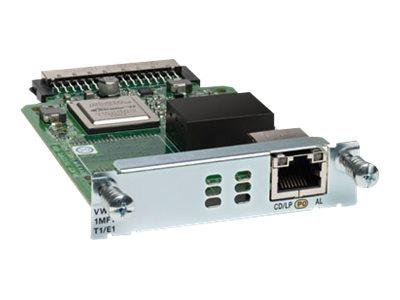

Cisco Third-Generation Multiflex Trunk Voice/WAN Interface Card

Cisco Third-Generation Multiflex Trunk Voice/WAN Interface Card

Review this product
Quicklinx: 9QX0WS00 Mfr#: VWIC3-1MFT-T1/E1=
Wired / Wireless: Wired
Form Factor: Plug-in module
Compatibility: PC
Type: Expansion module
Ordered upon request
£1,281.33 ex VAT
£1,537.59 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.

Description

The Cisco MFT VWIC3 combines WAN-interface-card (WIC) and voice-interface-card (VIC) functions to provide unparalleled flexibility, versatility, and investment protection through its many uses. Customers who choose to integrate data and voice in multiple steps preserve their investment in a T1/E1 WAN interface because the Cisco MFT VWIC3 cards can be reused in packet voice applications.

  • Reduces networking lifecycle costs

    It enables graceful migration from data-only to multiplexed data and voice to packetized voice applications, reduces training, deployment, management, and sparing inventory over single-purpose interfaces, and maximizes investment protection. It simplifies network configuration and sparing through the support of both T1 and E1 on the same card, offers multifunction support for LAN-to-LAN routing, multiplexed data and voice, and packetized voice, increases configuration flexibility and reduces cost for data applications by allowing individual ports to be clocked from independent clock sources.
  • Maximizes system resources

    It increases T1/E1 port density on the supported integrated services routers-up to four T1/E1 connections with an integrated CSU/DSU in a single EHWIC slot. Also it offers easy migration to bandwidth-efficient packet voice.

Specifications

Summary

Product Description
Cisco Third-Generation Multiflex Trunk Voice/WAN Interface Card - expansion module - EHWIC - T1/E1 x 1
Device Type
Expansion module
Form Factor
Plug-in module
Interface (Bus) Type
EHWIC
Ports
T1/E1 x 1
Dimensions (WxDxH)
7.82 cm x 12.04 cm x 1.91 cm
Weight
82 g
Data Transfer Rate
2.048 Mbps
Line Rate
T-1/E-1
Compliant Standards
G.703, G.704, ITU-T G.823
Designed For
Cisco 1921, 1921 4-pair, 1921 ADSL2+, 1921 T1, 1941, 2901, 2911, 2921, 2951, 3925, 3925E, 3945, 3945E


Detailed Specification

General

Device Type
Expansion module
Form Factor
Plug-in module
Interface (Bus) Type
EHWIC

Networking

Ports
T1/E1 x 1
Connectivity Technology
Wired
Data Transfer Rate
2.048 Mbps
Remote Management Protocol
SNMP, Telnet, CLI
Line Rate
T-1/E-1
Line Coding Format
AMI, B8ZS, HDB3
Status Indicators
Carrier detect, alarm, loop
Features
Integrated CSU/DSU, SNMP trap
Compliant Standards
G.703, G.704, ITU-T G.823

Expansion / Connectivity

Interfaces
1 x T1/E1

Miscellaneous

Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, JATE, ICES-003 Class A, CS-03, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, EN 61000-4-8, IEC 60950-1, EN 60950-1, AS/NZS 3548 Class A, AS/NZS 60950, TIA/EIA-968-A, TBR4, TBR12, TBR13, GR-1089-CORE, CAN/CSA C22.2 No. 60950, VCCI Class A, GR-63-CORE, ANSI T1.403, EN 300386

Dimensions & Weight

Width
7.82 cm
Depth
12.04 cm
Height
1.91 cm
Weight
82 g

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 85% (non-condensing)

Compatibility Information

Designed For
Cisco 1921, 1921 4-pair G.SHDSL bundle, 1921 ADSL2+ Annex M Bundle, 1921 ADSL2+ Bundle, 1921 SEC T1 Bundle, 1921 T1 Bundle, 1941, 1941 Mobile Wireless, 1941 Secure WAAS Bundle, 1941 Security, 1941 Security Bundle, 1941 SRE Bundle, 1941 WAAS Bundle, 2901, 2901 Secure WAAS Bundle, 2901 Security Bundle, 2901 SRE Bundle, 2901 Terminal Server Bundle, 2901 Voice Bundle, 2901 Voice Security and CUBE Bundle, 2901 Voice Security Bundle, 2901 WAAS Bundle, 2911, 2911 Secure WAAS Bundle, 2911 Security Bundle, 2911 SRE Bundle, 2911 UCSE Bundle, 2911 Voice Bundle, 2911 Voice Security and CUBE Bundle, 2911 Voice Security Bundle, 2911 WAAS Bundle, 2921, 2921 Secure WAAS Bundle, 2921 Security Bundle, 2921 SRE Bundle, 2921 Voice Bundle, 2921 Voice Security and CUBE Bundle, 2921 Voice Security Bundle, 2921 WAAS Bundle, 2951, 2951 Secure WAAS Bundle, 2951 Security Bundle, 2951 SRE Bundle, 2951 UCSE Bundle, 2951 Voice Bundle, 2951 Voice Security and CUBE Bundle, 2951 Voice Security Bundle, 2951 WAAS Bundle, 3925, 3925 PSRE Bundle, 3925 Security Bundle, 3925 SRE Bundle, 3925 Voice Bundle, 3925 Voice Security and CUBE Bundle, 3925 Voice Security Bundle, 3925 WAAS Bundle, 3925E, 3925E Security Bundle, 3925E SRE Bundle, 3925E Voice Bundle, 3925E Voice Security and CUBE Bundle, 3925E Voice Security Bundle, 3945, 3945 PSRE Bundle, 3945 Security Bundle, 3945 SRE Bundle, 3945 Voice Bundle, 3945 Voice Security and CUBE Bundle, 3945 Voice Security Bundle, 3945 WAAS Express Bundle, 3945E, 3945E Security Bundle, 3945E SRE Bundle, 3945E Voice Bundle, 3945E Voice Security and CUBE Bundle, 3945E Voice Security Bundle
