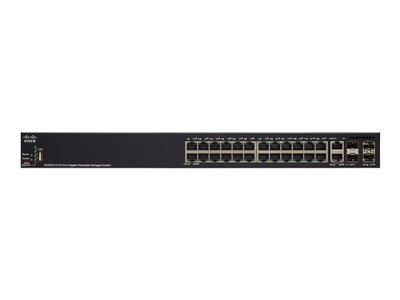

Cisco Small Business SG350X-24P - Switch - Managed - 24 x 10/100/1

Cisco Small Business SG350X-24P - Switch - Managed - 24 x 10/100/1

Review this product
Quicklinx: DQN4WS00 Mfr#: SG350X-24P-K9-UK
Type: Gigabit Ethernet
Ports: 24
Managed: Yes
POE: PoE+
Ordered upon request
£505.80 ex VAT
£606.96 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.
Add to regular buy list

Description

The Cisco 350X series stackable managed switches are a line of stackable managed Ethernet switches that provide the rich capabilities you need to support a more demanding network environment at a very affordable price. They provide a solid foundation for your current business applications as well as those you are planning for the future. In addition, these switches are easy to deploy and manage without a large IT staff. Cisco 350X series switches are designed to protect your technology investment as your business grows. Unlike switches that claim to be stackable but have elements that are administered and troubleshot separately, the Cisco 350X series provides true stacking capability, allowing you to configure, manage, and troubleshoot multiple physical switches as a single device and more easily expand your network.

  • ETHERNET PORT CONFIGURATION

    24-port 10/100/1000, 4 x 10G uplinks (SFP+)

  • POWER OVER ETHERNET

    24 PoE ports with 195W total power budget, PoE, PoE+, 60W PoE

  • CONFIGURATION & CONTROL

    Stackable (4 units), on-box WebUI, CLI, SNMP, Cisco FindIT Network Manager, PnP, Auto Smartports, auto-discovery, zero-touch deployment

  • L2+/L3 FEATURES

    Static routing, QoS, Voice/Guest VLAN, MSTP, IGMP Snooping, Time-based Access Control Lists, 802.1x, Web-based Authentication, IPv6 First Hop Security, IP Source Guard

  • PEACE OF MIND

    Limited-lifetime warranty, next-business-day replacement, one-year technical support, and free software fixes for the term of the warranty

Specifications

Summary

Product Description
Cisco Small Business SG350X-24P - switch - 24 ports - Managed - rack-mountable
Device Type
Switch - 24 ports - Managed - stackable
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 (PoE+) + 2 x combo 10 Gigabit SFP+ + 2 x 10 Gigabit SFP+
Power Over Ethernet (PoE)
PoE+
PoE Budget
195 W
Performance
Switching capacity (64-byte packet size): 95.23 Mpps , Switching capacity: 128 Gbps
Capacity
MSTP instances: 16 , Active VLANs: 4096 , IPv4 routes (static): up to 8000 , IPv6 routes (static): up to 6000 , ACL entries: up to 2000
MAC Address Table Size
64K entries
Jumbo Frame Support
9000 bytes
Routing Protocol
IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR
Remote Management Protocol
SNMP 2, SNMP, RMON, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP
Features
Flow control, Layer 3 switching, DHCP support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), IP Precedence, DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), reset button, Cable Diagnostics Function, Uni-Directional Link Detection (UDLD), IPv4 support, DHCP relay, Port Security, Remote Switch Port Analyzer (RSPAN), DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), Duplicated Address Detection, Type of Service (ToS), DiffServ Code Point (DSCP) support, 2 fans, 1.5MB packet buffer, Time-controlled ACLs support, Storm Control, IP source guard, ARP inspection, Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), Secure Copy (SCP), Cisco Discovery Protocol, IGMP querier, VLAN Double Tagging (Q-in-Q), VLAN mirroring, DNS client, Voice VLAN, VLAN management, Secure Core Technology (SCT), Private VLAN Edge (PVE), LLDP-MED, Head-of-line (HOL) blocking, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), Private VLAN, ISATAP tunnel support, RA guard
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az
Power
AC 120/230 V (47 - 63 Hz)
Dimensions (WxDxH)
44 cm x 35 cm x 4.4 cm
Weight
4.93 kg
Localisation
United Kingdom
Manufacturer Warranty
Limited lifetime warranty


Detailed Specification

General

Device Type
Switch - 24 ports - Managed - stackable
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 (PoE+) + 2 x combo 10 Gigabit SFP+ + 2 x 10 Gigabit SFP+
Power Over Ethernet (PoE)
PoE+
PoE Budget
195 W
Performance
Switching capacity (64-byte packet size): 95.23 Mpps , Switching capacity: 128 Gbps
Capacity
MSTP instances: 16 , Active VLANs: 4096 , IPv4 routes (static): up to 8000 , IPv6 routes (static): up to 6000 , ACL entries: up to 2000
MAC Address Table Size
64K entries
Jumbo Frame Support
9000 bytes
Max Units In A Stack
4
Routing Protocol
IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR
Remote Management Protocol
SNMP 2, SNMP, RMON, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP
Encryption Algorithm
MD5, SSL
Authentication Method
RADIUS, TACACS, TACACS+
Features
Flow control, Layer 3 switching, DHCP support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), IP Precedence, DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), reset button, Cable Diagnostics Function, Uni-Directional Link Detection (UDLD), IPv4 support, DHCP relay, Port Security, Remote Switch Port Analyzer (RSPAN), DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), Duplicated Address Detection, Type of Service (ToS), DiffServ Code Point (DSCP) support, 2 fans, 1.5MB packet buffer, Time-controlled ACLs support, Storm Control, IP source guard, ARP inspection, Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), Secure Copy (SCP), Cisco Discovery Protocol, IGMP querier, VLAN Double Tagging (Q-in-Q), VLAN mirroring, DNS client, Voice VLAN, VLAN management, Secure Core Technology (SCT), Private VLAN Edge (PVE), LLDP-MED, Head-of-line (HOL) blocking, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), Private VLAN, ISATAP tunnel support, RA guard
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az
Processor
X ARM: 800 MHz
RAM
512 MB
Flash Memory
256 MB
Status Indicators
System, link/speed, master, stack

Expansion / Connectivity

Interfaces
16 x 1000Base-T RJ-45 30 W , 8 x 1000Base-T RJ-45 60 W , 2 x 10Gbit LAN RJ-45/SFP+ uplink , 2 x 10GBase-X SFP+ uplink , 1 x console RJ-45 , 1 x management (Gigabit LAN) , 1 x USB Type A

Power

Power Device
Internal power supply
Voltage Required
AC 120/230 V (47 - 63 Hz)

Miscellaneous

Cables Included
1 x serial cable
Rack Mounting Kit
Included
MTBF
244,654 hours
Compliant Standards
UL 60950, FCC Part 15 A, CSA 22.2, USGv6
Localisation
United Kingdom

Dimensions & Weight

Width
44 cm
Depth
35 cm
Height
4.4 cm
Weight
4.93 kg

Manufacturer Warranty

Service & Support
Limited warranty - replacement - lifetime - response time: next business day

Environmental Parameters

Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-20 °C
Max Storage Temperature
70 °C
Humidity Range Storage
10 - 90% (non-condensing)
