Description
Part of the Cisco Small Business Series of networking solutions, Cisco 100 Series Unmanaged Switches deliver wire-speed Fast Ethernet or Gigabit Ethernet connectivity to connect your small business office. These switches are designed to suit any office space and help optimize power efficiency. They provide long-term investment protection and support for advanced features like quality of service (QoS) - all in a switch that you can set up by yourself in just minutes.
-
ETHERNET PORT CONFIGURATION
16-port 10/100M -
POWER OVER ETHERNET
8 PoE ports with 64W total power budget -
PLUG AND PLAY
Simple set up with no software to install or configuration needed -
PEACE OF MIND
Limited-lifetime warranty and one-year technical support -
ENERGY EFFICIENT
Optimizes power usage to lower cost to operate. Compliant with IEEE802.3az Energy Efficient Ethernet
Specifications
Summary
- Product Description

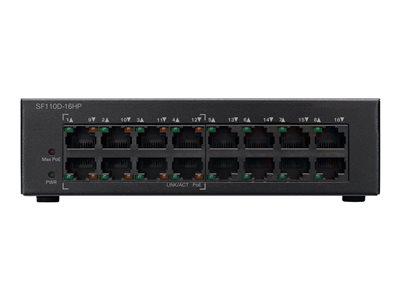

- Cisco Small Business SF110D-16HP - switch - 16 ports - unmanaged
- Device Type
- Switch - 16 ports - unmanaged
- Subtype
- Fast Ethernet
- Ports
- 8 x 10/100 + 8 x 10/100 (PoE)
- Power Over Ethernet (PoE)
- PoE
- PoE Budget
- 64 W
- Performance
- Switching capacity: 3.2 Gbps , Forwarding performance (64-byte packet size): 1.4 Mpps
- Capacity
- QoS hardware queues: 4
- Jumbo Frame Support
- 9216 bytes
- Features
- Auto-uplink (auto MDI/MDI-X), Weighted Round Robin (WRR) queuing, Quality of Service (QoS), fanless, Energy Efficient Ethernet, security lock slot (cable lock sold separately), cable test
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3az
- Power
- AC 120/230 V (50 - 60 Hz)
- Dimensions (WxDxH)
- 16 cm x 9 cm x 4.3 cm
- Weight
- 450 g
- Localisation
- United Kingdom
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 16 ports - unmanaged
- Enclosure Type
- Desktop, wall-mountable
- Subtype
- Fast Ethernet
- Ports
- 8 x 10/100 + 8 x 10/100 (PoE)
- Power Over Ethernet (PoE)
- PoE
- PoE Budget
- 64 W
- Performance
- Switching capacity: 3.2 Gbps , Forwarding performance (64-byte packet size): 1.4 Mpps
- Capacity
- QoS hardware queues: 4
- Jumbo Frame Support
- 9216 bytes
- Features
- Auto-uplink (auto MDI/MDI-X), Weighted Round Robin (WRR) queuing, Quality of Service (QoS), fanless, Energy Efficient Ethernet, security lock slot (cable lock sold separately), cable test
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3az
- RAM
- 128 MB
- Flash Memory
- 128 MB
- Status Indicators
- System, link/activity
Expansion / Connectivity
- Interfaces
- 8 x 100Base-TX RJ-45 , 8 x 100Base-TX RJ-45 PoE
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50 - 60 Hz)
Miscellaneous
- Compliant Standards
- UL 60950, FCC CFR47 Part 15, CSA 22.2
- Localisation
- United Kingdom
Dimensions & Weight
- Width
- 16 cm
- Depth
- 9 cm
- Height
- 4.3 cm
- Weight
- 450 g
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 90% (non-condensing)
