Description
The Cisco 4000 series Integrated Services Routers (ISR) revolutionize WAN communications in the enterprise branch. With new levels of built-in intelligent network capabilities and convergence, the routers specifically address the growing need for application-aware networking in distributed enterprise sites. These locations tend to have lean IT resources. But they often also have a growing need for direct communication with both private data centers and public clouds across diverse links, including Multiprotocol Label Switching (MPLS) VPNs and the Internet.
-
Cisco Intelligent WAN (IWAN)
Cisco IWAN is a set of intelligent software services that allow you to reliably and securely connect users, devices, and branch office locations across a diverse set of WAN transport links. IWAN-enabled routers like the 4000 series dynamically route traffic across the "best" link based on up-to-the-minute application and network conditions for great application experiences. You get tight control over application performance, bandwidth usage, data privacy, and availability of your WAN links - control that you need as your branches conduct greater volumes of mission-critical business. -
Cisco converged branch infrastructure
The Cisco 4000 series ISRs consolidate many must-have IT functions, including network, compute, and storage resources. The high-performance, integrated routers run multiple concurrent IWAN services, including encryption, traffic management, and WAN optimization, without slowing your data throughput. And you can activate new services on demand through a simple licensing change.
Specifications
Summary
- Product Description

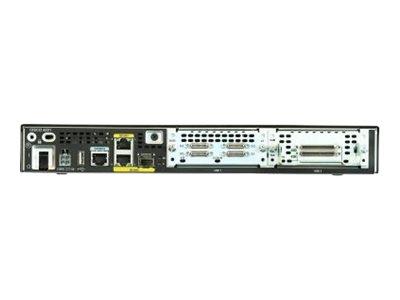

- Cisco Integrated Services Router 4221 - router - rack-mountable
- Device Type
- Router
- Enclosure Type
- Rack-mountable - modular - 1U
- WAN Ports Qty
- 2
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Performance
- Aggregate throughput: 35 Mbps
- Network / Transport Protocol
- IPSec, PPPoE, DHCP
- Routing Protocol
- OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), IPv4-to-IPv6 Multicast
- Remote Management Protocol
- SNMP, RMON
- Features
- VPN support, VLAN support, Syslog support, IPv6 support, CBWFQ, WRED, wall mountable, ACL support, QoS, RADIUS support, NetFlow, IPFIX
- Compliant Standards
- IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 32.26 cm x 25.4 cm x 4.37 cm
- Weight
- 3.22 kg
Detailed Specification
General
- Device Type
- Router
- Enclosure Type
- Rack-mountable - modular - 1U
- Connectivity Technology
- Wired
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Performance
- Aggregate throughput: 35 Mbps
- Network / Transport Protocol
- IPSec, PPPoE, DHCP
- Routing Protocol
- OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), IPv4-to-IPv6 Multicast
- Remote Management Protocol
- SNMP, RMON
- Features
- VPN support, VLAN support, Syslog support, IPv6 support, CBWFQ, WRED, wall mountable, ACL support, QoS, RADIUS support, NetFlow, IPFIX
- Compliant Standards
- IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824, CISPR 22 Class A, CISPR 24, EN55024, EN 55022 Class A, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, CS-03, R&TTE, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 3548 Class A, GB 4943, VCCI V-3, EN 61000, KN22, KN24, CNS 13438, EN 300 386, CAN/CSA-C22.2 No. 60950-1
- RAM
- 4 GB (installed) / 4 GB (max) - DDR3 SDRAM
- Flash Memory
- 8 GB (installed) / 8 GB (max)
Expansion / Connectivity
- Interfaces
- WAN / LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 , Serial: 1 x console - RJ-45 , USB 2.0: 1 x 4 pin USB Type A , 1 x SFP (mini-GBIC) , Management: 1 x 1000Base-T - RJ-45
- Expansion Slots
- 2 (total) / 2 (free) x NIM
Power
- Power Device
- External power adapter
- Voltage Required
- AC 120/230 V (50/60 Hz)
Miscellaneous
- MTBF
- 593270 hours
Software / System Requirements
- OS Provided
- Cisco IOS IP Base
Dimensions & Weight
- Width
- 32.26 cm
- Depth
- 25.4 cm
- Height
- 4.37 cm
- Weight
- 3.22 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 5 - 85%
