Description

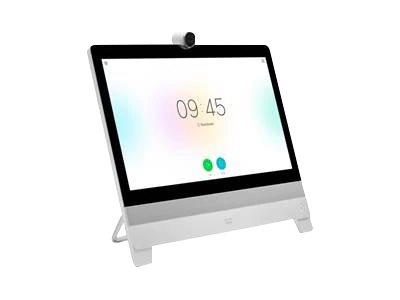

Cisco DX80 is part of the DX Series desktop line within the Cisco portfolio of collaboration endpoints. It features an easy-to-use touchscreen with all commands onscreen. The DX80 offers everything you need to be productive in one sleek device that eliminates the need for an external monitor and an IP phone on the desk.
-
Integrated communication hub
The Cisco DX80 merges an integrated camera, microphone, and speaker with a 23-inch touchscreen display, offering a seamless video conferencing experience right from your desk. -
High-definition visuals
With a native resolution of 1920 x 1080 on a 23-inch LED-backlit display, the DX80 delivers crisp, clear images and text, alongside a 10-point multi-touch feature for an interactive experience. -
Comprehensive connectivity
Equipped with multiple USB ports, HDMI input and output, and Ethernet capabilities, the DX80 ensures you can connect to a wide range of devices for a versatile setup. -
Optimized for professional use
The device supports essential networking protocols and standards, including Quality of Service (QoS) and VLAN support, ensuring reliable and secure communications. -
Effortless setup
With included cables and a straightforward interface, setting up the DX80 is quick and easy, allowing you to get started with minimal hassle.
Specifications
Summary
- Product Description
- Cisco DX80 - video conferencing kit
- Device Type
- Video conferencing kit
- Dimensions (WxDxH)
- 56.5 cm x 8.9 cm x 51.2 cm
- Weight
- 7.1 kg
- Display
- 23" 1920 x 1080
- Video Input
- Digital video camera
- Audio Input
- Microphone
- Audio Output
- Speaker(s)
- Input Device
- Touch-screen
- Networking
- Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth 3.0 EDR, Wi-Fi
- Manufacturer Warranty
- 1-year warranty
Detailed Specification
General
- Device Type
- Video conferencing kit
- Width
- 56.5 cm
- Depth
- 8.9 cm
- Height
- 51.2 cm
- Weight
- 7.1 kg
- Built-in Devices
- Microphone, speaker, display, camera
Display
- Diagonal Size
- 23"
- Native Resolution
- 1920 x 1080
- Image Aspect Ratio
- 16:9
- Image Brightness
- 215 cd/m²
- Image Contrast Ratio
- 1000:1
- Response Time
- 5 ms
- Monitor Features
- LED-backlit, 10-point multi-touch
Video Input
- Type
- Digital video camera (colour) - integrated
- Digital Video Capture Resolution
- 1920 x 1080
Audio Input
- Type
- Microphone - integrated
Audio Output
- Type
- Speaker(s)
Input Device
- Type
- Touch-screen
Networking
- Type
- Network adapter
- Connectivity Technology
- Wireless, wired
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth 3.0 EDR, Wi-Fi
- Network / Transport Protocol
- UDP/IP, DHCP, DNS, RTP, RTCP
- Features
- VLAN support, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), Generic Attribute Registration Protocol (GARP)
- Compliant Standards
- IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3q
Expansion / Connectivity
- Interfaces
- 2 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 , 1 x display / video - HDMI input , 1 x display / video - HDMI output , 1 x USB 2.0 - 5 pin Micro-USB Type B , 1 x USB 2.0 - 4 pin USB Type B , 3 x USB 2.0 - 4 pin USB Type A
Miscellaneous
- Cables Included
- 1 x network cable - 2.9 m , 1 x HDMI cable - 2 m , 1 x power adapter
- Compliant Standards
- EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class B, UL 60950-1, EN 60950-1, FCC CFR47 Part 15 B, CAN/CSA C22.2 No. 60950-1-07, Directive 2004/108/EC, Directive 2006/95/EC, Directive 2002/96/EC, Directive 2009/125/EC, Directive 2011/65/EU, EN 300 328, EN 301 489, EN 301 893
Power
- Power Device
- Power supply - internal
Manufacturer Warranty
- Service & Support
- Limited warranty - advance parts replacement - 1 year
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
