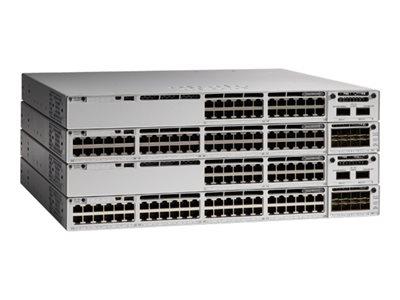

Cisco Catalyst 9300L 48-port 4X10G uplinks Network Essentials

Cisco Catalyst 9300L 48-port 4X10G uplinks Network Essentials

Review this product
Quicklinx: G2RGWS00 Mfr#: C9300L-48T-4X-E
Type: Gigabit Ethernet
Ports: 48
Hurry, only 3 left in stock!
£3,371.56 ex VAT
£4,045.87 inc VAT
Qty
Standard delivery Delivered within 3 working days
Add to regular buy list

Description

The Cisco Catalyst 9300 Series switches are Cisco's lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry's most widely deployed switching platform. Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco's lead enterprise architecture. At up to 480 Gbps, they are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.

The Catalyst 9300 Series is designed for Cisco StackWise technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower, which delivers high-density Cisco Universal Power over Ethernet (Cisco UPOE) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.

Specifications

Summary

Product Description
Cisco Catalyst 9300L - Network Essentials - switch - 48 ports - rack-mountable
Device Type
Switch - 48 ports - L3 - stackable
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
48 x 10/100/1000 + 4 x 10 Gigabit SFP+ (uplink)
Performance
Switching capacity with stacking: 496 Gbps , Switching capacity: 176 Gbps , Forwarding rate: 130.95 Mpps , Forwarding rate with stacking: 369.05 Mpps
Capacity
IPv4 routes: 32000 , IPv6 routes: 16000 , Multicast scale: 8000 , QoS scale entries: 5120 , ACL scale entries: 5120 , Routed ports: 416 , VLANs supported: 4094 , Switched virtual interfaces (SVIs): 1000
MAC Address Table Size
32000 entries
Jumbo Frame Support
9198 bytes
Routing Protocol
OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Features
Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3bz
Power
AC 120/230 V (50 - 60 Hz)
Power Redundancy
Optional
Dimensions (WxDxH)
44.5 cm x 4.4 cm x 40.9 cm
Weight
7 kg
Manufacturer Warranty
Limited lifetime warranty


Detailed Specification

General

Device Type
Switch - 48 ports - L3 - stackable
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
48 x 10/100/1000 + 4 x 10 Gigabit SFP+ (uplink)
Performance
Switching capacity with stacking: 496 Gbps , Switching capacity: 176 Gbps , Forwarding rate: 130.95 Mpps , Forwarding rate with stacking: 369.05 Mpps
Capacity
IPv4 routes: 32000 , IPv6 routes: 16000 , Multicast scale: 8000 , QoS scale entries: 5120 , ACL scale entries: 5120 , Routed ports: 416 , VLANs supported: 4094 , Switched virtual interfaces (SVIs): 1000
MAC Address Table Size
32000 entries
Jumbo Frame Support
9198 bytes
Routing Protocol
OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Features
Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3bz
RAM
8 GB
Flash Memory
16 GB

Expansion / Connectivity

Interfaces
48 x 1000Base-T RJ-45 , 4 x 10GBase-X SFP+ uplink

Power

Power Device
Internal power supply - hot-plug
Installed Qty
1
Max Supported Qty
2
Power Redundancy
Optional
Power Provided
350 Watt
Voltage Required
AC 120/230 V (50 - 60 Hz)

Miscellaneous

MTBF
380,080 hours
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35

Dimensions & Weight

Width
44.5 cm
Depth
4.4 cm
Height
40.9 cm
Weight
7 kg

Manufacturer Warranty

Service & Support
Limited warranty - advance parts replacement - lifetime - response time: next business day

Environmental Parameters

Humidity Range Operating
5 - 90% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 90% (non-condensing)
