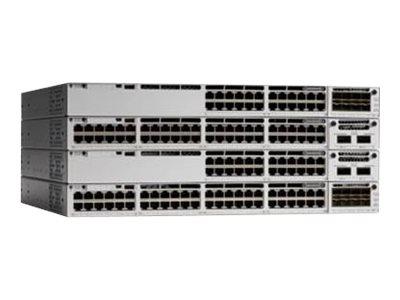

Cisco Catalyst 9300 24-port UPOE, Network Essentials

Cisco Catalyst 9300 24-port UPOE, Network Essentials

Review this product
Quicklinx: G2QLWS00 Mfr#: C9300-24U-E
Type: Gigabit Ethernet
Ports: 24
Managed: Yes
POE: UPOE
Hurry, only 2 left in stock!
£2,846.45 ex VAT
£3,415.74 inc VAT
Qty
Standard delivery Delivered within 3 working days
Add to regular buy list

Description

The Catalyst 9300 series is an advanced stackable switching platform. These network switches are built for security, IoT, and the cloud.

  • Cloud ready

    Simplify, secure, and transform your cloud environment. Cisco delivers a digital-ready approach that starts at the edge and extends to where applications reside.

  • Optimized for mobility

    Catalyst 9300 series access switches give you smart, simple, and highly secure unified access.

Specifications

Summary

Product Description
Cisco Catalyst 9300 - Network Essentials - switch - 24 ports - Managed - rack-mountable
Device Type
Switch - 24 ports - L3 - Managed - stackable
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 (UPOE)
Power Over Ethernet (PoE)
UPOE
PoE Budget
830 W
Performance
Switching capacity: 128 Gbps , Stacking bandwidth: 480 Gbps , Forwarding rate: 154.76 Mpps
Capacity
IPv4 routing table entries: 32000 , IPv6 routing table entries: 16000 , Flexible NetFlow entries: 64000 , VLAN IDs: 4000 , Switched virtual interfaces (SVIs): 2000
MAC Address Table Size
32000 entries
Jumbo Frame Support
9198 bytes
Routing Protocol
OSPF, IS-IS, RIP-1, RIP-2, EIGRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Features
Trunking, full duplex mode, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, FTP client, 3 fans, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Encapsulated Remote SPAN (ERSPAN), Security Group Access Control List (SGACL), IT Service Management (ITSM) integration
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
Power
AC 120/230 V (50 - 60 Hz)
Power Redundancy
Optional
Dimensions (WxDxH)
44.5 cm x 44.5 cm x 4.4 cm
Weight
7.54 kg
System Requirements
Cisco IOS Universal
Manufacturer Warranty
Limited lifetime warranty


Detailed Specification

General

Device Type
Switch - 24 ports - L3 - Managed - stackable
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 (UPOE)
Power Over Ethernet (PoE)
UPOE
PoE Budget
830 W
Performance
Switching capacity: 128 Gbps , Stacking bandwidth: 480 Gbps , Forwarding rate: 154.76 Mpps
Capacity
IPv4 routing table entries: 32000 , IPv6 routing table entries: 16000 , Flexible NetFlow entries: 64000 , VLAN IDs: 4000 , Switched virtual interfaces (SVIs): 2000
MAC Address Table Size
32000 entries
Jumbo Frame Support
9198 bytes
Routing Protocol
OSPF, IS-IS, RIP-1, RIP-2, EIGRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Encryption Algorithm
128-bit AES
Features
Trunking, full duplex mode, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, FTP client, 3 fans, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Encapsulated Remote SPAN (ERSPAN), Security Group Access Control List (SGACL), IT Service Management (ITSM) integration
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
RAM
8 GB
Flash Memory
16 GB
Status Indicators
Status

Expansion / Connectivity

Interfaces
48 x 1000Base-T RJ-45 UPOE , 1 x USB 2.0
Expansion Slots
1 (total) / 1 (free) x Expansion Slot

Power

Power Device
Internal power supply - hot-plug
Installed Qty
1
Max Supported Qty
2
Power Redundancy
Optional
Power Provided
1100 Watt
Voltage Required
AC 120/230 V (50 - 60 Hz)

Miscellaneous

MTBF
238,410 hours
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1

Software / System Requirements

OS Required
Cisco IOS Universal

Dimensions & Weight

Width
44.5 cm
Depth
44.5 cm
Height
4.4 cm
Weight
7.54 kg

Manufacturer Warranty

Service & Support
Limited warranty - replacement - lifetime - response time: next business day , Technical support - consulting - 90 days

Environmental Parameters

Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
5 - 90% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 90% (non-condensing)
