Description
Cisco 890 series integrated services router combines Internet access, comprehensive security, and wireless services in a single, secure device that is easy to deploy and manage. The best-in-class Cisco 890 series architecture has been specifically designed to deliver high performance with concurrent services, business continuity, and investment protection for enterprise small branch offices and service provider managed services applications.
Cisco 890 series integrated services router is a fixed-configuration router that provides collaborative business solutions for secure voice and data communications to enterprise small branch offices. It is designed to deliver secure broadband, Metro Ethernet, Wireless LAN (WLAN) connectivity, and business continuity. The router also comes with powerful management tools, such as the web-based Cisco configuration professional configuration management tool, which simplifies setup and deployment. Centralized management capabilities give network managers visibility and control of the network configurations at the remote site.
Specifications
Summary
- Product Description

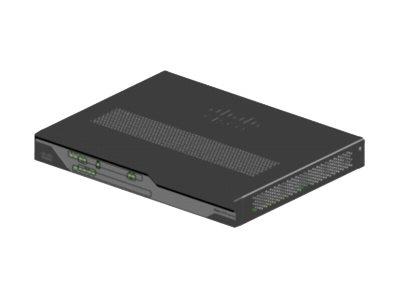

- Cisco 892FSP - router - desktop
- Device Type
- Router - 8-port switch (integrated)
- Enclosure Type
- Desktop
- WAN Ports Qty
- 2
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Capacity
- Connection / user qty: 50
- Network / Transport Protocol
- L2TP, IPSec
- Routing Protocol
- OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, GRE, WCCP, Bidirectional Forwarding Detection (BFD)
- Remote Management Protocol
- Telnet, SNMP 3, HTTP, SSH, CLI
- Features
- NAT support, VPN support, VLAN support, IGMP snooping, DiffServ support, MAC address filtering, IPv6 support, IPS, LLQ, CBWFQ, WFQ, STP support, ACL support, QoS, LFI, RADIUS support, DHCP server, DNS proxy, DHCP relay, DHCP client, VRF, CoS
- Compliant Standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ah, IEEE 802.1ag
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 32.3 cm x 24.8 cm x 4.4 cm
- Manufacturer Warranty
- 1-year warranty
Detailed Specification
General
- Device Type
- Router - 8-port switch (integrated)
- Enclosure Type
- Desktop
- Connectivity Technology
- Wired
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Capacity
- Connection / user qty: 50
- Network / Transport Protocol
- L2TP, IPSec
- Routing Protocol
- OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, GRE, WCCP, Bidirectional Forwarding Detection (BFD)
- Remote Management Protocol
- Telnet, SNMP 3, HTTP, SSH, CLI
- Authentication Method
- RADIUS, TACACS+
- Features
- NAT support, VPN support, VLAN support, IGMP snooping, DiffServ support, MAC address filtering, IPv6 support, IPS, LLQ, CBWFQ, WFQ, STP support, ACL support, QoS, LFI, RADIUS support, DHCP server, DNS proxy, DHCP relay, DHCP client, VRF, CoS
- Compliant Standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ah, IEEE 802.1ag, VCCI-II, EN55024, CSA 22.2 No. 60950, EN55022 Class B, AS/NZ 3548 Class B, AS/NZS 60950-1, CS-03, EN 60555-2, UL 60950-1, IEC 60950-1
- RAM
- 512 MB (installed) / 1 GB (max)
- Flash Memory
- 256 MB (installed) / 256 MB (max)
- Status Indicators
- Port status, power
Expansion / Connectivity
- Interfaces
- LAN: 8 x 10Base-T/100Base-TX/1000Base-T - RJ-45 , WAN: 1 x SFP (mini-GBIC) , WAN: 2 x 10Base-T/100Base-TX - RJ-45 , Management: 1 x auxiliary - RJ-45 , USB 2.0: 1 x 4 pin USB Type A , Management: 1 x console - RJ-45
Power
- Power Device
- External power adapter - 60 Watt
- Voltage Required
- AC 120/230 V (50/60 Hz)
Miscellaneous
- Cables Included
- 1 x network cable - 1.8 m
Software / System Requirements
- OS Provided
- Cisco IOS Advanced IP services
Dimensions & Weight
- Width
- 32.3 cm
- Depth
- 24.8 cm
- Height
- 4.4 cm
Manufacturer Warranty
- Service & Support
- Limited warranty - 1 year
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 85% (non-condensing)
