Description

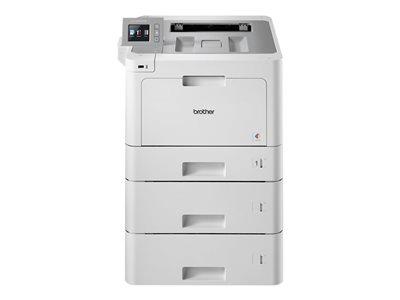

HL-L9310CDW
Professional colour laser printing that can grow asyour business grows.
Built for demanding office environments the HL-L9310CDW is designed to be robust and packed full of business features.
With security a key requirement in today’s offices this model features built-in NFC connectivity to ensure that all your documents are safe and secure. Together with the advanced paper handling capabilities you no longer need to regularly spend time refilling paper trays.
Key Features
- Fast print speeds of up to 31ppm colour and mono
- Paper input of up to 300 sheets
- Maximum paper input of up to 2380 sheets
- Automatic 2-Sided Printing
- Optional ultra high-yield replacement cartridges 9000 blackcyan magenta and yellow toner cartridges
- Built-in Ethernet 10Base- T/100Base- TX/1000Base-T
- Integrated NFC Reader
- Intuitive 6.8cm colour touchscreen
Increase productivity levels
- Productivity is increased significantly thanks to the fast print speeds of up to 31ppm in colour and mono.
- Maximise your efficiency with built-in wireless IEEE 802.11b/g/n and ethernet 10Base-T/100Base-TX/1000Base-T.
- Easily print from your mobile device using Brother’s iPrint&Scan Brother print service plugin for Android Google Cloud Print 2.0 Mopria and AirPrint.
- Outstanding paper handling options with a standard paper capacity of 300 sheets expandable to 2380 sheets.
Meeting security challenges
Modern businesses demand the highest levels of security. With Secure Function Lock 3.0 Active Directory Authentication IPsec 802.1x and Secure Print you can be confident that your documents are safe
Flexible and low running costs
Designed for high volume printing environments the HL-L9310CDW includes a 6500 page black cyan magenta and yellow toners and can take optional ultra high-yield cartridges of 9000 page black cyan magenta and yellow toners to lower your running costs even further.
-
Efficient connectivity
With a wide range of connectivity options including Gigabit Ethernet, NFC, USB 2.0, USB host, and Wi-Fi, the Brother HL-L9310CDW ensures seamless integration into any work environment. Mobile printing capabilities with Apple AirPrint make it easy to print from anywhere. -
High-quality printing
Achieve professional, high-resolution color and B/W prints with a maximum resolution of 2400 x 600 DPI. Automatic duplexing adds to the printer's efficiency, allowing for double-sided printing without manual intervention. -
Robust media handling
Designed to accommodate a variety of media sizes including A4, Legal, and more, with a total media capacity of 300 sheets. The printer supports a range of media types such as envelopes, plain paper, and recycled paper, making it versatile for all printing needs. -
Secure and reliable
Equipped with advanced security protocols including AES, SSL, TKIP, TLS, WEP, WPA-PSK, and WPA2-PSK to protect sensitive information. The recommended monthly volume of 6000 pages ensures reliability for high-demand printing tasks. -
User-friendly operation
The HL-L9310CDW features an 800 MHz processor for swift processing of print jobs and supports language simulations like PCL 6 and PDF 1.7 for compatibility with a variety of document types. Sound emission during operation is kept to a minimal 49 dBA, ensuring a quiet work environment.
Specifications
Summary
- Product Description
- Brother HL-L9310CDW - printer - colour - laser
- Printer Type
- Workgroup printer - laser - colour
- Weight
- 22.2 kg
- Localisation
- United Kingdom
- Media Size Class
- A4/Legal
- Max Media Size
- Legal (216 x 356 mm), A4 (210 x 297 mm)
- Min Media Size (Custom)
- 76.2 mm x 127 mm
- Max Media Size (Custom)
- 216 mm x 356 mm
- Print Speed
- Up to 31 ppm - B/W - A4 (210 x 297 mm) , Up to 31 ppm - colour - A4 (210 x 297 mm) , Up to 33 ppm - B/W - ANSI A (Letter) (216 x 279 mm) , Up to 33 ppm - colour - ANSI A (Letter) (216 x 279 mm) , Up to 14 spm - B/W duplex - A4 (210 x 297 mm) , Up to 14 spm - colour duplex - A4 (210 x 297 mm) , Up to 14 spm - B/W duplex - ANSI A (Letter) (216 x 279 mm) , Up to 14 spm - colour duplex - ANSI A (Letter) (216 x 279 mm)
- Max Resolution (B&W)
- 2400 x 600 dpi
- Max Resolution (Colour)
- 2400 x 600 dpi
- Automatic Duplexing
- Yes
- Interface
- USB 2.0, Gigabit LAN, Wi-Fi(n), USB host, NFC
- AirPrint Enabled
- Yes
- Preview Screen Size
- 2.7"
- Processor
- 800 MHz
- RAM Installed (Max)
- 1 GB
- Language Simulation
- PostScript 3, PCL 6, XPS, PDF 1.7
- Media Type
- Envelopes, labels, plain paper, recycled paper, thick paper, paper, thin paper, glossy paper
- Total Media Capacity
- 300 sheets
- Media Handling
- 250-sheet input tray, 50-sheet multipurpose tray
- Recommended Monthly Volume
- 6000 pages
- Networking
- Print server
- Manufacturer Warranty
- 2-year warranty
- Dimensions (WxDxH)
- 44.1 cm x 48.6 cm x 31.3 cm
Detailed Specification
General
- Printer Type
- Workgroup printer - laser - colour
- Localisation
- United Kingdom
Printer
- Print Speed
- Up to 31 ppm - B/W - A4 (210 x 297 mm) , Up to 31 ppm - colour - A4 (210 x 297 mm) , Up to 33 ppm - B/W - ANSI A (Letter) (216 x 279 mm) , Up to 33 ppm - colour - ANSI A (Letter) (216 x 279 mm) , Up to 14 spm - B/W duplex - A4 (210 x 297 mm) , Up to 14 spm - colour duplex - A4 (210 x 297 mm) , Up to 14 spm - B/W duplex - ANSI A (Letter) (216 x 279 mm) , Up to 14 spm - colour duplex - ANSI A (Letter) (216 x 279 mm)
- Built-in Devices
- Touch screen
- Preview Screen Size
- 2.7"
- Connectivity Technology
- Wireless
- Interface
- USB 2.0, Gigabit LAN, Wi-Fi(n), USB host, NFC
- AirPrint Enabled
- Yes
- Max Resolution (B&W)
- 2400 x 600 dpi
- Max Resolution (Colour)
- 2400 x 600 dpi
- Automatic Duplexing
- Yes
- PostScript Support
- Standard
- First Print Out Time B/W
- 15 sec
- First Print Out Time Colour
- 15 sec
- Language Simulation
- PostScript 3, PCL 6, XPS, PDF 1.7
- Fonts Included
- 66 x scalable PostScript , 66 x scalable PCL , 12 x bitmapped PCL , 16 x barcode
- Media Handling
- 250-sheet input tray, 50-sheet multipurpose tray
Processor
- Processor
- 800 MHz
RAM
- RAM Installed (Max)
- 1 GB
Media Handling
- Media Type
- Envelopes, labels, plain paper, recycled paper, thick paper, paper, thin paper, glossy paper
- Media Size Class
- A4/Legal
- Max Media Size
- Legal (216 x 356 mm), A4 (210 x 297 mm)
- Min Media Size (Custom)
- 76.2 mm x 127 mm
- Max Media Size (Custom)
- 216 mm x 356 mm
- Media Sizes
- ANSI A (Letter) (216 x 279 mm), Legal (216 x 356 mm), Executive (184 x 267 mm), A4 (210 x 297 mm), A5 (148 x 210 mm), A6 (105 x 148 mm), Folio (216 x 330 mm)
- Envelope Sizes
- International DL (110 x 220 mm), Com-10 (105 x 241 mm), International C5 (162 x 229 mm), Monarch (98.4 x 190.5 mm)
- Media Weight
- 60 g/m² - 163 g/m²
- Total Media Capacity
- 300 sheets
- Media Feeders
- Input tray: 1 x automatic - 250 sheets - Legal (216 x 356 mm) weight: 60 g/m² - 105 g/m² , Bypass tray: 1 x automatic - 50 sheets - Legal (216 x 356 mm) weight: 60 g/m² - 163 g/m²
- Output Trays Capacity
- 150 sheets
Duty Cycle
- Recommended Monthly Volume
- 6000 pages
Networking
- Networking
- Print server
- Remote Management Protocol
- SNMP 1, Telnet, SNMP 3, IPP, SNMP 2c, HTTP, HTTPS, TFTP, IPPS
- Security Protocols & Features
- Kerberos, SSL, LEAP, WEP, WPA-PSK, TLS, IPsec, 802.1x, WPA2-PSK, TKIP, AES, TTLS, PEAP
Expansion / Connectivity
- Connections
- 1 x Gigabit LAN - RJ-45 , 1 x USB 2.0 - 4 pin USB Type B , 2 x USB host - 4 pin USB Type A
Miscellaneous
- Consumables Included
- 1 x toner cartridge (black) - up to 6500 pages , 1 x toner cartridge (cyan) - up to 6500 pages , 1 x toner cartridge (magenta) - up to 6500 pages , 1 x toner cartridge (yellow) - up to 6500 pages
Power
- Power Device
- Power supply - internal
- Frequency Required
- 50/60 Hz
- Power Consumption Operational
- 580 Watt
- Power Consumption Stand by
- 70 Watt
- Power Consumption Sleep
- 10 Watt
Environmental Standards
- Blue Angel
- Yes
- ENERGY STAR
- Yes
- Nordic Swan Ecolabel
- Yes
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years , Limited warranty - 1 year - on-site
Environmental Parameters
- Min Operating Temperature
- 10 °C
- Max Operating Temperature
- 32 °C
- Humidity Range Operating
- 20 - 80% (non-condensing)
- Sound Emission (Operating)
- 49 dBA
- Sound Emission (Quiet Mode)
- 44 dBA
Dimensions & Weight
- Width
- 44.1 cm
- Depth
- 48.6 cm
- Height
- 31.3 cm
- Weight
- 22.2 kg
Dimensions & Weight (Shipping)
- Width (Shipping)
- 64.2 cm
- Depth (Shipping)
- 60.3 cm
- Height (Shipping)
- 57.8 cm
- Weight (Shipping)
- 26.8 kg
