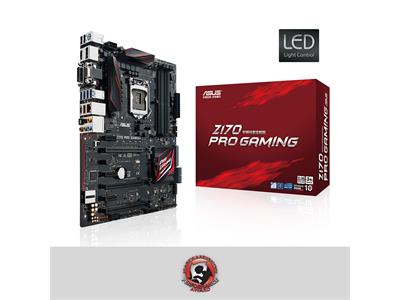

Asus Z170 PRO GAMING Intel Z170 LGA1151 DDR4 ATX

Asus Z170 PRO GAMING Intel Z170 LGA1151 DDR4 ATX

Review this product
Quicklinx: BJ03WS00 Mfr#: Z170 PRO GAMING
Processor Socket: LGA1151 Socket
Chipset: Intel Z170
Graphics: Graphics adapter (CPU required)
Form Factor: ATX
Memory Support: DDR4 SDRAM
34 in stock
£118.46 ex VAT
£142.15 inc VAT
Qty
Standard delivery Delivered within 3 working days

Description

High-value, feature-packed, performance-optimized Z170 ATX board

LGA1151 socket for 6th Gen Intel® Core™ Desktop Processors
Dual DDR4 3400 (OC) support
PRO Clock technology, 5-Way Optimization and 2nd-generation T-Topology: Easy and stable overclocking
SupremeFX: Flawless audio that makes you part of the game
Intel Gigabit Ethernet, LANGuard & GameFirst III: Top-speed protected networking
RAMCache: Speed up your game loads
USB 3.1 Type A/C & M.2: Ultra-speedy transfers for faster gaming
Gamer's Guardian: Highly-durable components and smart DIY features
Sonic Radar ll: Scan and detect your enemies to dominate

SupremeFX - Shielded audio, superior sound
The ASUS-exclusive technology that produces near-lossless audio quality with a remarkable signal-to-noise ratio (SNR) of 115dB, so you enjoy every sound detail.

Sonic Radar II - Scan and detect to dominate!
Sonic Radar II displays a stealthy overlay that shows what your opponents and teammates are up to on the battlefield, all managed via a simple control panel and customizable game list. See the direction and origin of key in-game sounds, and practice your enemy-pinpointing skill, plus exclusive Audio Enhancement technology clarifies every last blast.

Gigabit Ethernet - More throughput, less CPU usage and great gaming experiences
Featuring the very latest Intel Ethernet (I219-V) for faster, smoother gaming — always. Intel's LAN has the serious double advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput. This significantly reduces the processor's workload, so there's more power for your game and your gameplay.

LANGuard - Pumped-up throughput. Best surge protection
Signal-coupling technology and premium surface-mounting ensure a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components (ESD Guards) for 1.9X-greater tolerance to static electricity and 2.5X-greater protection (up to 15KV) against surges.

GameFirst III - Banish lag, play smooth
Exclusive GameFirst III prioritizes game-related packets and allocates more bandwidth to games, eliminating laggy gameplay, streaming stutters and file-sharing slowdown — so you'll always be the frontrunner. Choose from Optimization, Game, Media Streaming or File Sharing presets and watch your network fly!

Go Faster with PRO Clock technology
A dedicated base-clock (BCLK) generator designed for 6th-generation Intel® processors that extends overclocked base clock frequencies up to 400MHz*. This custom solution works in tandem with the ASUS TurboV Processing Unit (TPU), to enhance voltage and base-clock overclocking control — providing an exciting new way to boost performance to extreme heights.
Advantages of ASUS Pro Clock:
- Reduced boot up time
- Lower jitter under extreme conditions for higher overclocks
- Increased stability under heavy overclocking

DDR4 overclocking strength in numbers
Second-generation ASUS T-Topology enables DDR4 memory overclocking to reach new heights: over DDR4-3400MHz with all memory slots populated. Featuring a customized trace layout for reduced crosstalk and coupling noise, our second-generation T-Topology ensures time-aligned signal transfer for improved memory stability and compatibility.

One-stop performance-optimization panel
AI Suite 3 is an exclusive ASUS dashboard-style control panel that lets you fine-tune almost every aspect of your Z170 Pro Gaming-based system for the best balance between performance, stability, efficiency and aesthetics — all via a simple and intuitive interface

Award-winning BIOS design
The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way. In EZ Mode you can get set up very quickly, applying the date and time, fan profiles and Intel Extreme Memory Profile (XMP) memory profiles. Switch to Advanced Mode to set up favorites and shortcuts, record and review recent changes with Last Modified or make notes in Quick Notes.

Intel Z170 Express Chipset
Intel Z170 Express is a single-chipset design that supports 6th-generation Intel LGA1151 Core™ i7/Core i5/Core i3/Pentium®/Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, Z170 provides a maximum of ten USB 3.0 ports, six SATA 6Gbit/s ports, 32Gbit/s M.2 and PCIe 3.0 lane speed support for faster data retrieval. Intel Z170 Express also supports integrated-graphics (iGPU) functions, so you'll enjoy the very latest Intel integrated graphics performance.

Ready for 6th-generation Intel LGA1151 Core i7/Core i5/Core i3/Pentium/Celeron processors
This motherboard supports 6th-generation Intel Core i7/i5/i3/Pentium/Celeron processors in the LGA1151 package, with graphics, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, two-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great graphics performance.

Specs
CPU
LGA1151 socket for 6th Generation Core™ i7/i5/i3/Pentium®/Celeron® Processors
Supports 14nm CPU
Supports Intel® Turbo Boost Technology 2.0 (The Intel® Turbo Boost Technology 2.0 support depends on the CPU types)

Intel® Z170 Express Chipset

Memory
4 x DIMM, max. 64GB, DDR4
3400(O.C.)/3333(O.C.)/3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2400(O.C.)/2133 MHz, non-ECC, un-buffered memory
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
( Hyper DIMM support is subject to the physical characteristics of individual CPUs. Please refer to Memory QVL(Qualified Vendors List) for details)

Expansion Slots
2 x PCI Express 3.0 x16 slots (single at x16 mode or dual at x8 mode)
1 x PCI Express 3.0 x16 slot (max. at x4 mode)
3 x PCI Express 3.0 x1 slots

Graphic
Integrated Graphics Processor - Intel® HD Graphics support
Multi-VGA output support: DisplayPort, HDMI, D-sub, DVI ports
Supports DisplayPort 1.2 with max. resolution 4096 x 2304@60Hz
Supports HDMI 1.4b with max. resolution 4096 x 2160@24Hz
Supports DVI with max. resolution 1920 x 1200@60Hz
Supports D-sub with max. resolution 1920 x 1200 @60Hz
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Maximum shared memory of 512MB

Multi-GPU support
Supports NVIDIA® 2-Way/Quad-GPU SLI™ Technology
Supports AMD® 3-Way/ Quad-GPU CrossFireX™ Technology

Storage
Intel® Z170 Express Chipset with RAID 0, 1, 5, 10 and Intel® Rapid Storage Technology 14 support
- 1 x SATA Express port (gray, compatible with 2 x SATA 6.0 Gb/s ports)
- 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE 3.0 x4 mode

Specifications

Summary

Product Description
ASUS Z170 PRO GAMING - motherboard - ATX - LGA1151 Socket - Z170
Product Type
Motherboard - ATX
Chipset Type
Intel Z170
Processor Socket
1 x LGA1151 Socket
Compatible Processors
Pentium, Celeron, Core i5, Core i3, Core i7
Max RAM Size
64 GB
RAM Supported
4 DIMM slots - DDR4, non-ECC, unbuffered
Storage Ports
4 x SATA-600 (RAID), 1 x SATA Express port, 1 x M.2
USB / FireWire Ports
1 x USB-C + 1 x USB 3.1 + 4 x USB 3.0 + 2 x USB 2.0 + (2 x USB 3.0 + 6 x USB 2.0 via headers)
Max Allocated RAM Size
512 MB
Audio
HD Audio (8-channel)
LAN
Gigabit Ethernet


Detail

General

Product Type
Motherboard - ATX
Chipset Type
Intel Z170
Processor Socket
LGA1151 Socket
Max Processors Qty
1
Compatible Processors
Pentium, Celeron, Core i5, Core i3, Core i7

Supported RAM

Max Size
64 GB
Technology
DDR4
Bus Clock
2133 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 2666 MHz (O.C.), 2600 MHz (O.C.), 2400 MHz (O.C.), 3000 MHz (O.C.), 3100 MHz (O.C.), 3200 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

Graphics

Max Allocated RAM Size
512 MB

Audio

Type
HD Audio (8-channel)
Audio Codec
SupremeFX
Compliant Standards
High Definition Audio

LAN

Network Controller
Intel I219V
Network Interfaces
Gigabit Ethernet

Expansion / Connectivity

Expansion Slots
1 x CPU , 4 x DIMM 288-pin , 2 x PCIe 3.0 x16 (dual x8 mode; single card: x16 mode) , 1 x PCIe 3.0 x16 (x4 mode) , 3 x PCIe 3.0 x1
Storage Interfaces
SATA-600 / PCIe 3.0 -connectors: 4 x 7pin SATA, 1 x M.2, 1 x SATA Express port - RAID 0 / RAID 1 / RAID 10 / RAID 5
RAID Features
Intel Rapid Storage Technology
Interfaces
1 x HDMI , 1 x VGA , 1 x DVI-D , 1 x DisplayPort , 1 x LAN (Gigabit Ethernet) , 1 x USB 3.1 , 1 x USB-C , 4 x USB 3.0 , 2 x USB 2.0 , 1 x PS/2 keyboard / mouse , 1 x audio line-in - mini-jack , 1 x audio line-out - mini-jack , 1 x microphone - mini-jack , 1 x audio line-out (center/subwoofer) - mini-jack , 1 x audio line-out (rear) - mini-jack , 1 x TOSLINK
Internal Interfaces
6 x USB 2.0 - header , 2 x USB 3.0 - header , 1 x audio - header , 1 x serial - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type
AMI
BIOS Features
WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ACPI 5.0 support, ASUS EZ Flash 3, DMI 3.0 support, SMBIOS 3.0 support
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
Jack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, GPU Boost, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Q-Shield, NVIDIA Quad SLI Technology Support, ASUS TurboV, Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, Intel Clear Video HD Technology, Intel Smart Response Technology, Fanless Design Heatsink, SupremeFX Shielding technology, AMD Quad CrossFireX technology support, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, Disk Unlocker, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), Clear CMOS Button, ASUS Stainless Steel Back I/O, ASUS Fan Xpert 3, Dual Intelligent Processors 5, GameFirst III, LANGuard, Sonic Radar II, USB 3.1 Boost, ASUS PRO Clock Technology

Miscellaneous

Included Accessories
Cable labels, 1 x M.2 screw, I/O back cover
Cables Included
4 x Serial ATA cable , 1 x SLI bridge
Software Included
ASUS Auto Tuning, ASUS AI Charger+, ASUS AI Suite III, ASUS EZ Update, ASUS Turbo App, Antivirus (OEM version), Media Streamer, ASUS RAMCache
Compliant Standards
Plug and Play
Width
30.5 cm
Depth
24.4 cm
