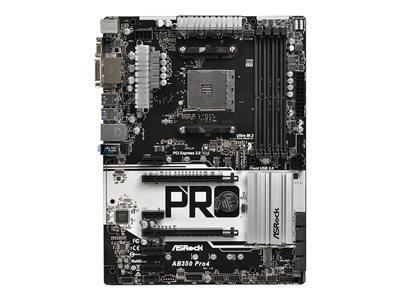

ASRock AB350 Pro4 AMD B350 AM4 DDR4 M.2 USB3 Type C ATX

ASRock AB350 Pro4 AMD B350 AM4 DDR4 M.2 USB3 Type C ATX

Review this product
Quicklinx: CR0MWS00 Mfr#: AB350 Pro4
Discontinued

Description

Marketing description is not available.

  • Digi power

    This motherboard uses a digital PWM (pulse-width modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
  • Triple monitor

    Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports triple monitor. You may choose up to three display interfaces from the rear I/O to connect monitors and use them simultaneously without installing another graphics card.
  • ELNA audio caps

    ASRock applied ELNA audio capacitors on the motherboards! The leakage current of ELNA audio caps is small. This is the key to reduce noise level significantly and satisfy even the picky audiophiles.
  • USB Type C

    A reversible USB Type C design fits the connector either way.

Specifications

Summary

Product Description
ASRock AB350 Pro4 - motherboard - ATX - Socket AM4 - AMD B350 FCH
Product Type
Motherboard - ATX
Chipset Type
AMD B350 FCH
Processor Socket
1 x Socket AM4
Compatible Processors
Athlon, A series, Ryzen (supports 7th Generation A-series / Athlon)
Max RAM Size
64 GB
RAM Supported
4 DIMM slots - DDR4, non-ECC, ECC, unbuffered
Storage Ports
4 x SATA-600 (RAID), 2 x SATA-600, 1 x M.2, 1 x Ultra M.2
USB / FireWire Ports
USB 3.0, USB-C 1 x USB-C + 5 x USB 3.0 + 2 x USB 2.0 + (2 x USB 3.0 + 4 x USB 2.0 via headers)
Max Allocated RAM Size
2 GB
Audio
HD Audio (8-channel)
LAN
Gigabit Ethernet


Detail

General

Product Type
Motherboard - ATX
Chipset Type
AMD B350 FCH
Processor Socket
Socket AM4
Max Processors Qty
1
Compatible Processors
Athlon, A series, Ryzen (supports 7th Generation A-series / Athlon)

Supported RAM

Max Size
64 GB
Technology
DDR4
Bus Clock
2400 MHz, 2133 MHz, 2667 MHz
Supported RAM Integrity Check
Non-ECC, ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture

Graphics

Max Allocated RAM Size
2 GB

Audio

Type
HD Audio (8-channel)
Audio Codec
Realtek ALC892
Compliant Standards
High Definition Audio, Premium Blu-ray audio support

LAN

Network Controller
Realtek RTL8111GR
Network Interfaces
Gigabit Ethernet

Expansion / Connectivity

Expansion Slots
1 x CPU , 4 x DIMM 288-pin , 1 x PCIe 3.0 x16 (x16/x8 mode (with AMD Ryzen CPU); x8 mode (with AMD 7th Generation A-series/Athlon CPU)) , 1 x PCIe 3.0 x16 (x4 mode (with AMD Ryzen CPU); x2 mode (with AMD 7th Generation A-series/Athlon CPU)) , 4 x PCIe 2.0 x1
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 , SATA-600 -connectors: 2 x 7pin Serial ATA , SATA-600 -connectors: 1 x M.2 , PCIe 3.0 -connectors: 1 x Ultra M.2
Interfaces
1 x PS/2 keyboard / mouse , 1 x LAN (Gigabit Ethernet) , 1 x VGA , 1 x DVI-D , 1 x HDMI , 2 x USB 2.0 , 1 x USB-C , 5 x USB 3.0 , 1 x audio line-in - mini-jack , 1 x audio line-out - mini-jack , 1 x microphone - mini-jack
Internal Interfaces
2 x USB 2.0 - header , 1 x USB 3.0 - header , 1 x serial - header , 1 x audio - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type
AMI
BIOS Features
JumperFree, SMBIOS 2.3 support, UEFI BIOS
Hardware Monitoring
CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage
Sleep / Wake Up
Wake on LAN (WOL)
Hardware Features
ASRock Instant Boot, 15µ Gold Contact, ASRock APP Charger, ASRock XFast LAN, ASRock Crashless BIOS, ASRock Internet Flash, Digi Power Design, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Key Master, Triple Monitor, ELNA Audio Capacitors, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock Easy RAID Installer, Sapphire Black PCB, Premium Power Choke, ASRock RGB LED, 9 Phase Power Design

Miscellaneous

Included Accessories
I/O back plate, 2 x M.2 screws
Cables Included
2 x Serial ATA cable
Software Included
Drivers & Utilities, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar
Compliant Standards
WHQL, FCC, EuP Ready, ErP Ready
Width
30.5 cm
Depth
22.4 cm
